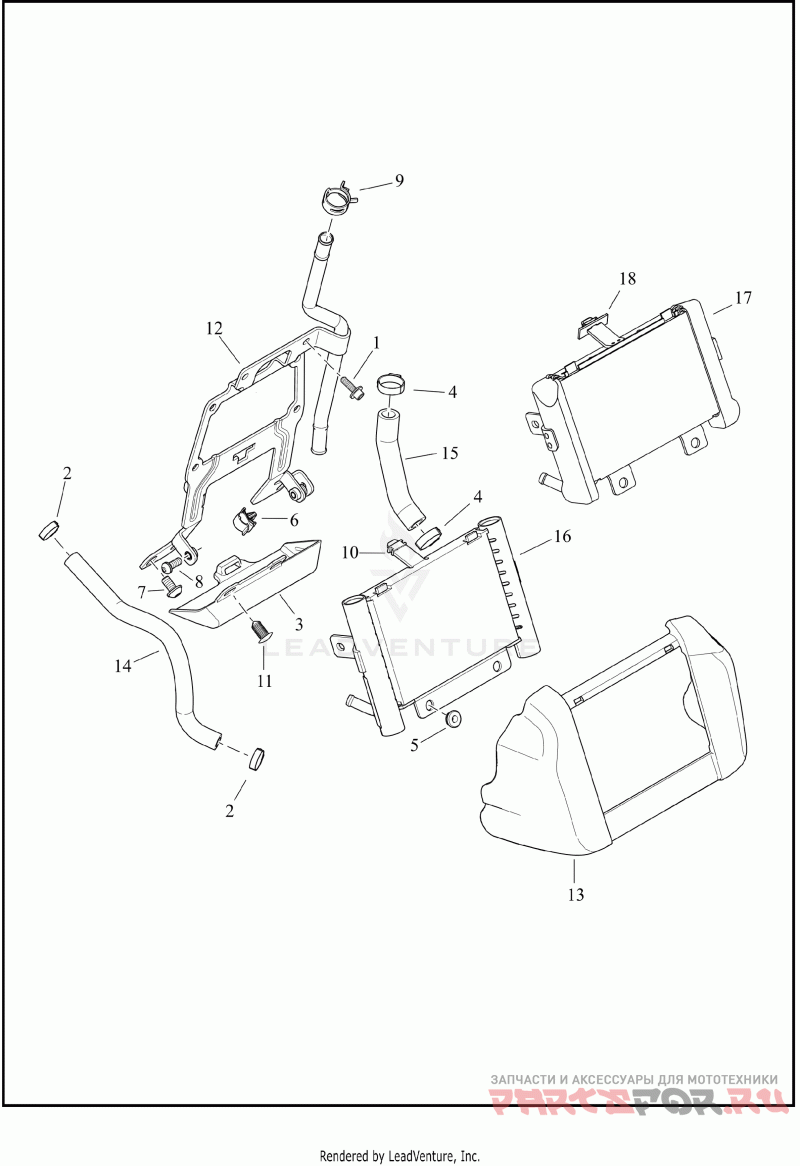

COOLANT DISTRIBUTION - AIR-COOLED

Harley Davidson FLHT 1FVC ELECTRA GLIDE STANDARD (2022)

Harley Davidson
#oem кодцена
1
882
Деталь SCREW,HEX SOCKET HEAD CAP, SEMS
2
10080
Деталь CLAMP LINER | (zinc)
3
69201286A
Деталь COVER,ELEC CMPNT/WIRE,X | electrical connector, with 12600016
4
10344
Деталь CLAMP,HOSE/BLACK | (black)
5
11692
Деталь GROMMET,OIL COOLER COVER
6
70681-09
Деталь HARNESS CLIP | wire retention
7
10200414
Деталь SCREW,BUTTON HEAD
8
10200422
Деталь SCREW,X
9
10800052
Зажим
10
12100113
Деталь GROMMET,ISOLATOR,SS1 COOLER
11
12600016
Деталь PUSH-IN CLIP | push-in
12
12700090
Деталь BRACKET VOLTAGE REGULATOR | voltage regulator
13
26800092
Деталь COVER,OIL COOLER | oil cooler
14
62700143
Деталь HOSE,INLET,OIL COOLER | inlet, oil cooler
15
62700144
Деталь HOSE,OUTLET,OIL COOLER | outlet, oil cooler
16
62700196
Деталь COOLER,OIL,BLACK | with 12100113 (Domestic, Australia, Brazil, HDI, HD2, Japan, Asia-Pacific)
17
62700227
Деталь COOLER,OIL,BLACK | with 12100113 (HD4, ASEAN, China, EN2, HD3, IN2)
