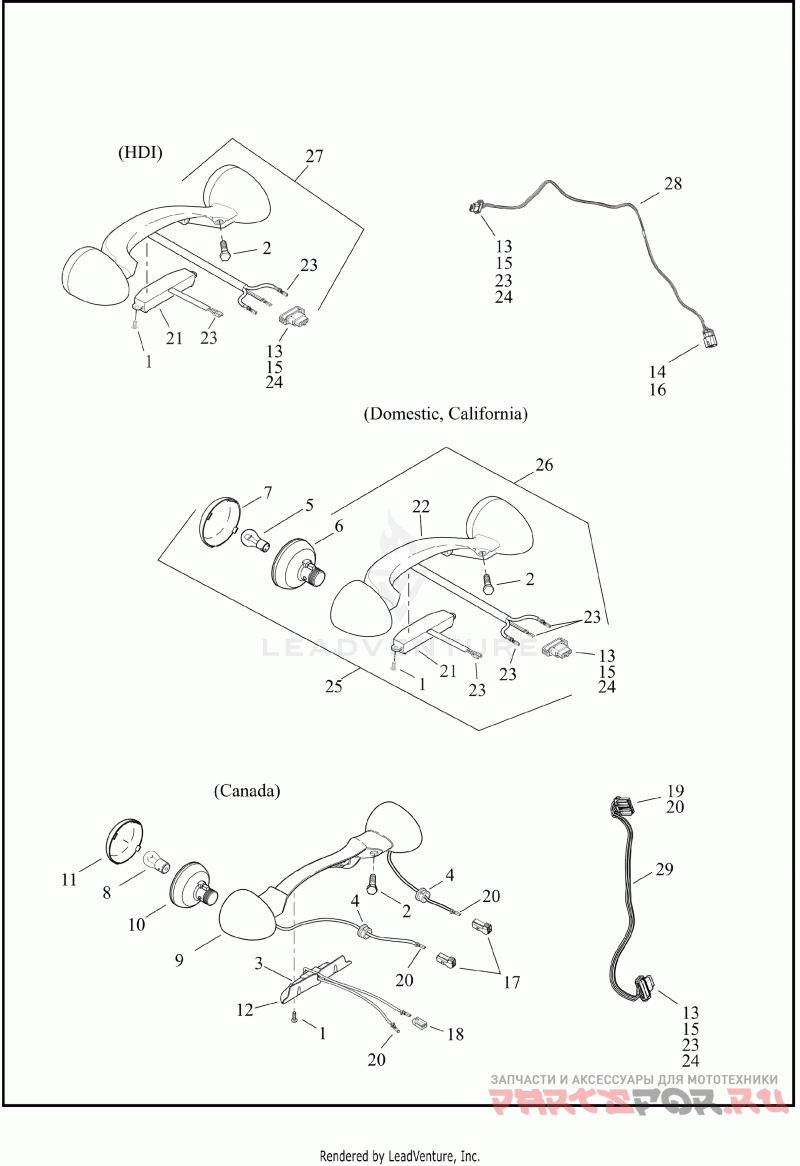

TAIL LAMP AND TURN SIGNALS, REAR - FLHRXS, FLHX, FLHXS, FLTRX, FLTRXS, FLHXST AND FLTRXST
Harley Davidson FLHRXS 1KVP ROAD KING SPECIAL (2022)
| # | oem код | название | цена |
|---|---|---|---|
1 | 2482 Деталь SCREW,HEX SCKT,BTN | Деталь SCREW,HEX SCKT,BTN | |
2 | 3576 Деталь SCREW,HEX/FLANGELOCK | Деталь SCREW,HEX/FLANGELOCK | |
3 | 52441-95 Деталь BULB,BACKLITE | backlite | Деталь BULB,BACKLITE | backlite | |
4 | 67266-94 Деталь BUSHING,PLAIN,SHORTY, NYLON, 0.75 ID | nylon | Деталь BUSHING,PLAIN,SHORTY, NYLON, 0.75 ID | nylon | |
5 | 68168-89A Деталь BULB,STANLEY/CANDLEPOWER,#198 | Деталь BULB,STANLEY/CANDLEPOWER,#198 | |
6 | 68497-07 Деталь SOCKET ASY,RR,TRNSGNL/DOM | with mount | Деталь SOCKET ASY,RR,TRNSGNL/DOM | with mount | |
7 | 68559-07 Деталь LENS,TRNSGNL LAMP/RED | (red) | Деталь LENS,TRNSGNL LAMP/RED | (red) | |
8 | 68572-64B Деталь BULB,SINGLE,S-8,#199 | Деталь BULB,SINGLE,S-8,#199 | |
9 | 67800900 Деталь TURNSIGNAL,LTBAR,RR,LIC,BLK | turn signal (black) | Деталь TURNSIGNAL,LTBAR,RR,LIC,BLK | turn signal (black) | |
10 | 68905-00 Деталь SOCKET ASY,RR/DOM | Деталь SOCKET ASY,RR/DOM | |
11 | 68973-00 Деталь LENS,LAMP,T-SGNL | Деталь LENS,LAMP,T-SGNL | |
12 | 69353-05 Деталь LIGHT ASSEMBLY W/LENS | with 52441-95 and 73191-96 | Деталь LIGHT ASSEMBLY W/LENS | with 52441-95 and 73191-96 | |
13 | 72130-04 Деталь HOUSING,12-WAY,SCKT/BLACK | 12-way socket (black) (except Canada) | Деталь HOUSING,12-WAY,SCKT/BLACK | 12-way socket (black) (except Canada) | |
14 | 72168-07 Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG | Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG | |
15 | 72189-04 Деталь SEAL PIN | (except Canada) | Деталь SEAL PIN | (except Canada) | |
16 | 72414-07BK Деталь HOUSING, 6-WAY SOCKET, BLACK | six-way socket (black) | Деталь HOUSING, 6-WAY SOCKET, BLACK | six-way socket (black) | |
17 | 73152-96BK Деталь HOUSING,2-WAY,SCKT/BLACK | two-way socket (black) | Деталь HOUSING,2-WAY,SCKT/BLACK | two-way socket (black) | |
18 | 73153-96BK Деталь HSG SOCKET,3-PLC,BLACK | three-way socket (black) | Деталь HSG SOCKET,3-PLC,BLACK | three-way socket (black) | |
19 | 73156-96BK Деталь WIRE HARN SUB-CMPNT,X | six-way socket (black) | Деталь WIRE HARN SUB-CMPNT,X | six-way socket (black) | |
20 | 73191-96 Деталь TERMINAL,SCKT,#16-20AWG | socket, 16-20 AWG | Деталь TERMINAL,SCKT,#16-20AWG | socket, 16-20 AWG | |
21 | 73254-10 Деталь LITE ASY,W/LENS(PO) | with 74196-04 and lens | Деталь LITE ASY,W/LENS(PO) | with 74196-04 and lens | |
22 | 67800485 Деталь LITEBAR,LICSE/T-SGNL,BLACK,FLHX,DOM | (black) | Деталь LITEBAR,LICSE/T-SGNL,BLACK,FLHX,DOM | (black) | |
23 | 74196-04 Деталь TERMINAL,SCKT,#20AWG | socket, 20 AWG (except Canada) | Деталь TERMINAL,SCKT,#20AWG | socket, 20 AWG (except Canada) | |
24 | 74197-04 Деталь SECONDARY LOCK,12WAY,SCKT | 12-way socket (except Canada) | Деталь SECONDARY LOCK,12WAY,SCKT | 12-way socket (except Canada) | |
26 | 67800483 Деталь KIT-LITEBAR ASY,BLACK,FLHX,DOM | rear, with 1, 5, 13, 15, 21, 22, 23 and 24 (black) | Деталь KIT-LITEBAR ASY,BLACK,FLHX,DOM | rear, with 1, 5, 13, 15, 21, 22, 23 and 24 (black) | |
27 | 67800484 Деталь KIT-LITEBAR ASY,BLACK,FLHX,HDI | rear, with 1, 13, 15, 21, 23 and 24 (black) (HDI) | Деталь KIT-LITEBAR ASY,BLACK,FLHX,HDI | rear, with 1, 13, 15, 21, 23 and 24 (black) (HDI) | |
28 | 69200129 Деталь WIRE HARNESS,RR LITING | rear lighting jumper, with 13, 14, 15, 16, 23 and 24 (except Canada) | Деталь WIRE HARNESS,RR LITING | rear lighting jumper, with 13, 14, 15, 16, 23 and 24 (except Canada) | |
29 | 69200130 Деталь WIRE HARNESS,RR LITING | rear lighting, jumper, with 13, 15, 19, 20, 23 and 24 (Canada) | Деталь WIRE HARNESS,RR LITING | rear lighting, jumper, with 13, 15, 19, 20, 23 and 24 (Canada) |
