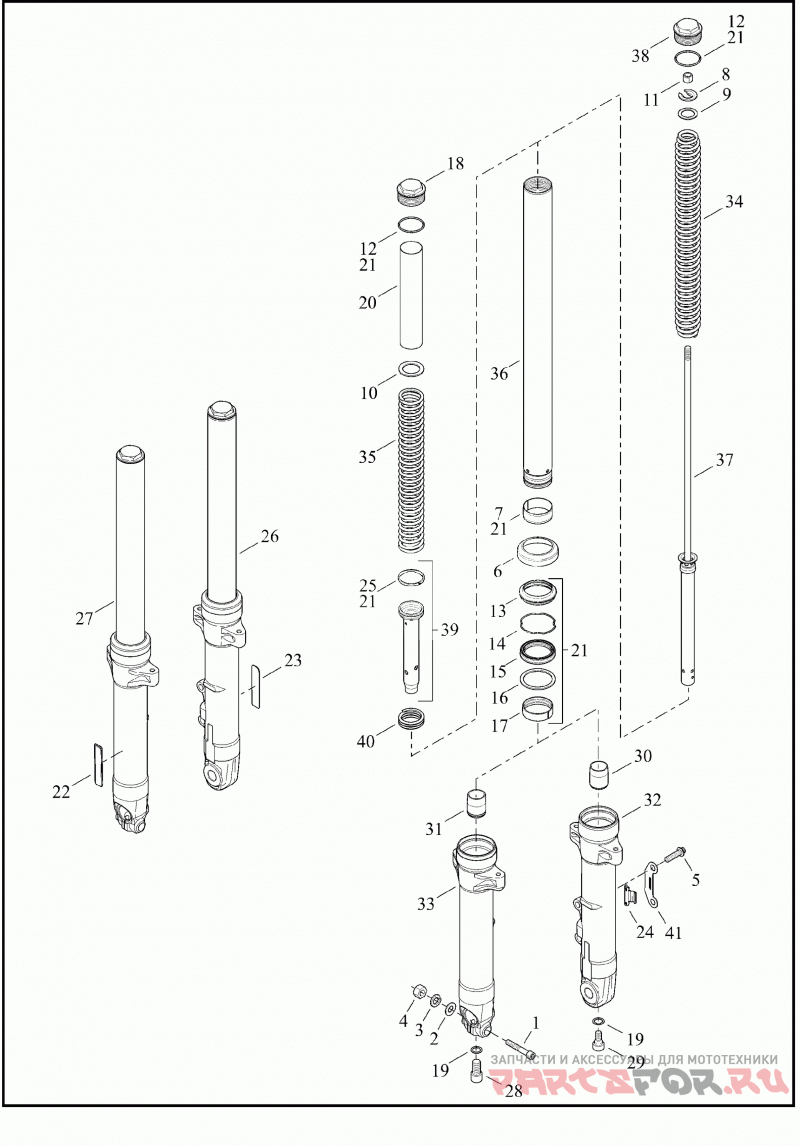

FORK, FRONT - XL1200X

Harley Davidson XL1200X 1LC3 FORTY-EIGHT (2021)

Harley Davidson
#oem кодцена
1
4029A
SCREW,HEX SOC HD CAP
2
6701
WASHER,PLAIN,TYPE-A
3
7038
LOCKWASHER,REGULAR
4
7783
Гайка
5
44160-00
MTG BOLT,LWR CALIPER
6
45070-01
COVER,CASE,FRT FORK
7
46080-01
BUSHING,SLIDER
8
46236-02
SPRING SEAT, LEFT
9
46237-02
Гровер
10
46509-01
Шайба
11
46262-02
LOCKNUT, DAMPER
12
46508-01
Уплотнительное кольцо
13
46512-01A
DUST SEAL,FORK(PO)
14
46513-01
RING STOPPER
15
46514-01A
OIL SEAL,FORK(PO)
16
46515-01
SPACER SEAL
17
46516-01
BUSHING GUIDE
18
46612-06
BOLT,FRT FORK
19
46615-06
CU PACKING
20
46670-07
COLLAR,SPRING(PO)
21
45500307
KIT-FORK REBUILD,XL1200X
22
59481-00
REFLECTOR,RH,AMBER
23
59482-00
REFLECTOR,LH,AMBER
24
70494-08
WIRE CLIP,WHL SPEED SENSOR
25
22000031
Кольцо поршневое
26
45400084
FORK ASY,STD,LH,BUFFED,BLK,49MM
27
45400085
FORK ASY,STD,RH,BUFFED,BLK,49MM
28
45500118
HSHCS,M14X1.25-25(PO)
29
45500236
SCREW,HEX SOC HD
30
45500233
OIL LOCK PIECE
31
45500251
OIL LOCK PIECE
32
45500287
FORK SLIDER,STD,LH,BUF,BLK,49MM
33
45500290
FORK SLIDER,STD,RH,BUF,BLK,49MM
34
45500293
FORK SPRING
35
45500294
FORK SPRING
36
45500295
FORK PIPE
37
45500296
CARTRIDGE
38
45500297
BOLT FRONT FORK.
39
45500298
SEAT PIPE COMP
40
45500343
SPRING,REBOUND
41
69200460
BRACKET,FRT WHL SPEED SENSOR
