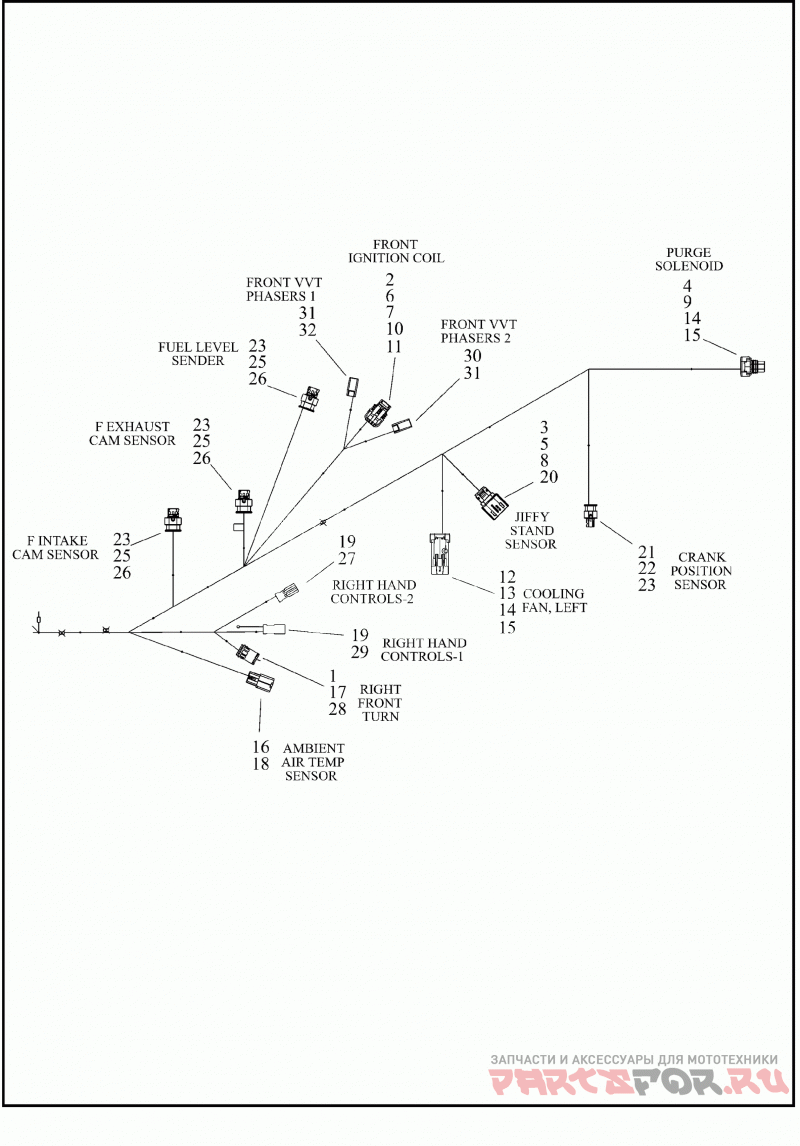

WIRING HARNESS, ENGINE (3 OF 4)

Harley Davidson RH1250S 1ZC4 SPORTSTER S (2021)

Harley Davidson
#oem кодцена
1
5118
SEAL PIN
2
72097-06
CAVITY PLUG,OVAL/ORANGE
3
72168-07
TERMINAL,SOCKET,#18-20 AWG
4
72213-94
TERMINAL SCKT 16-20AWG
5
72519-09BK
DUSTCAP,3-WAY SOCKET
6
72484-08
TERMINAL,SOCKET,#20AWG
7
72486-08
WIRE SEAL,#20AWG,GREEN
8
72512-07BK
HOUSING,3-WAY,SCKT/BLACK
9
72518-01
HOUSING, 2-WAY SOCKET, RED
10
72543-07BK
HOUSING,3-WAY,SCKT/BLACK
11
72544-07
SECONDARY LOCK,3-WAY,FEM
12
72607-08
HOUSING, 2-WAY PIN
13
72608-08
TERMINAL,PIN,16-20AWG,150 METRI-PACK
14
72609-08
SECONDARY LOCK, 2-WAY SCKT/BLACK
15
72610-08
SEAL, CABLE #18-20 AWG, WHITE
16
72721-07
TERMINAL, SOCKET #18-20 AWG, MOLEX MX64
17
72907-11
HOUSING,4-WAY PIN
18
69200201
HOUSING,2-WAY,SCKT,KEY B(PO)
19
69201164
TERMINAL,PIN,#22AWG
20
73213-07
RETAINER,X-MAS TREE CLIP
21
69201299
HOUSING,2-WAY,SOCKET,KEY B
22
69201300
TERMINAL,SOCKET,#20 AWG
23
69201301
WIRE SEAL,#20-22AWG,GREEN
24
10147
CLIP,CONNECTOR
25
69201406
HOUSING,3-WAY SOCKET
26
69201407
TERMINAL,SOCKET,#20 AWG
27
69201652
CONNECTOR,4 PIN , JST
28
69201699
TERMINAL,PIN,#22 AWG
29
69201711
CONNECTOR,8-WAY PIN
30
69202037
CONNECTOR,HOUSING,2-WAY PIN,18-22AWG
31
69202041
TERMINAL,PIN,18-22AWG
32
69202627
CONNECTOR,HSG,2-WAY PIN,18-22AWG,WHT
