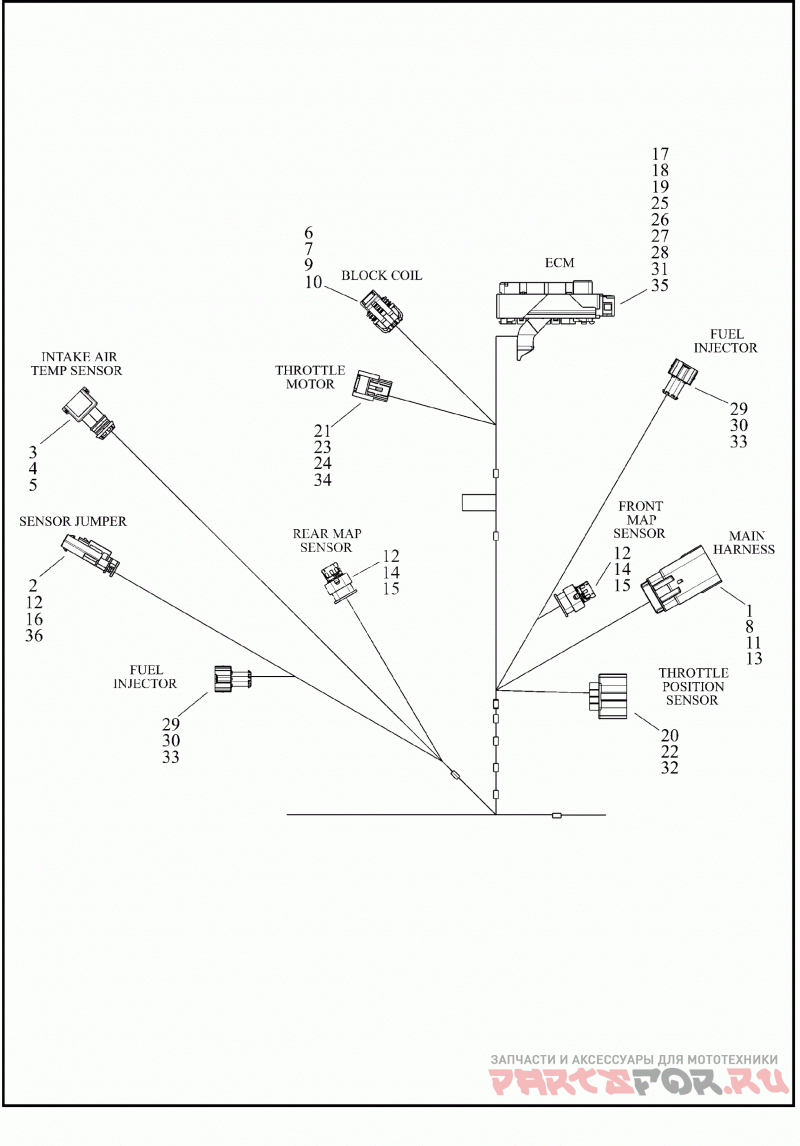

WIRING HARNESS, ENGINE (2 OF 4)

Harley Davidson RA1250 1ZDS PAN AMERICA (2021)

Harley Davidson
#oem кодцена
1
72169-07
TERMINAL,PIN,#16-20 AWG
2
73213-07
RETAINER,X-MAS TREE CLIP
3
72526-01
HSG SCKT 2-WAY GRAY
4
72527-01
SOCKET TERMINAL 18-20 AWG
5
72528-01
SEAL WIRE 18-20 AWG BLUE
6
72543-07BK
HOUSING,3-WAY,SCKT/BLACK
7
72544-07
SECONDARY LOCK,3-WAY,FEM
8
72549-07
PIN TERMINAL,#22 AWG
9
72484-08
TERMINAL,SOCKET,#20AWG
10
72486-08
WIRE SEAL,#20AWG,GREEN
11
72488-07BK
HOUSING,12-WAY,PIN/BLACK
12
69201301
WIRE SEAL,#20-22AWG,GREEN
13
72473-07
SEAL PIN
14
69201406
HOUSING,3-WAY SOCKET
15
69201407
TERMINAL,SOCKET,#20 AWG
16
69201709
CONNECTOR,5-WAY PIN,KEY A
17
69201888
CONNECTOR,HOUSING,81-WAY
18
69201890
TERMINAL,SOCKET,2.8MM,0.75-1.0MM WIRE
19
69202453
TERMINAL,SKT,0.64MM,0.35-0.5MM WIRE,SIL
20
69201904
CONNECTOR,HOUSING,4-WAY SOCKET
21
69201905
CONNECTOR,HOUSING,2-WAY SOCKET
22
69201914
TERMINAL,SOCKET,0.2-0.5MM,20-24AWG
23
69201921
TERMINAL,SOCKET
24
69201923
CONNECTOR,LOCKING WEDGE
25
69202028
CONNECTOR,CAVITY PLUG,0.64MM CAVITY
26
69202030
TERMINAL,SOCKET,2.8MM,1.5-2.5MM WIRE
28
69202032
CONNECTOR,SECONDARY LOCK
29
69202180
CONNECTOR,TRAPEZ,2-PIN
30
69202182
SEAL,CONN/TERM,18-20 GA,YELLOW
31
69202453
TERMINAL,SKT,0.64MM,0.35-0.5MM WIRE,SIL
32
69202497
SEAL,CONN/TERM,WIRE
33
69202714
TERMINAL,SOCKET,20AWG
34
69202715
SEAL,CONN/TERM,WIRE
35
69202203
CONNECTOR,BACKSHELL COVER
36
69201398
TERMINAL,PIN,#20 AWG
