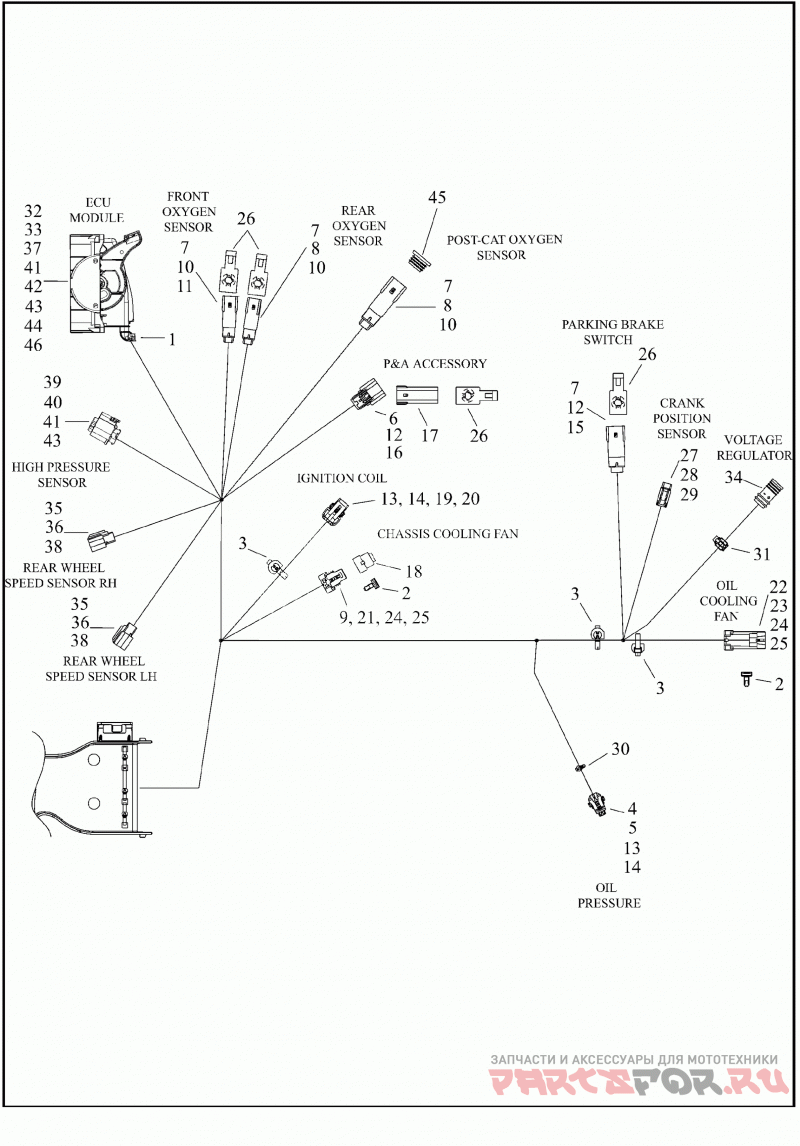

WIRING HARNESS, MAIN - FLRT (7 OF 9)

Harley Davidson FLRT 1MCP FREEWHEELER (2021)

Harley Davidson
#oem кодцена
1
10065
CABLE STRAP
2
10147
CLIP,CONNECTOR
3
10177
CABLE STRAP,X-MAS TREE MOUNT
4
72065-06A
HOUSING, 3-WAY SOCKET
5
72127-06
SECONDARY LOCK,3-WAY.FEM/GRAY
6
72168-07
TERMINAL,SOCKET,#18-20 AWG
7
72169-07
TERMINAL,PIN,#16-20 AWG
8
72175-07BK
HOUSING,4-WAY,PIN/BLACK
9
72213-94
TERMINAL SCKT 16-20AWG
10
72343-10
TERMINAL,PIN,#16-20AWG/GOLD
11
72415-07GY
HOUSING,4-WAY,PIN/GREY
12
72473-07
SEAL PIN
13
72484-08
TERMINAL,SOCKET,#20AWG
14
72486-08
WIRE SEAL,#20AWG,GREEN
15
72511-07BK
HOUSING, 3-WAY PIN, BLACK
16
72512-07BK
HOUSING,3-WAY,SCKT/BLACK
17
72519-09BK
DUSTCAP,3-WAY SOCKET
18
72533-06
DUST CAP,2-PIN CONN
19
72544-07
SECONDARY LOCK,3-WAY,FEM
20
72589-09
HOUSING, 3-WAY SOCKETS
21
72606-08
HOUSING, 2-WAY SOCKET
22
72607-08
HOUSING, 2-WAY PIN
23
72608-08
TERMINAL,PIN,16-20AWG,150 METRI-PACK
24
72609-08
SECONDARY LOCK, 2-WAY SCKT/BLACK
25
72610-08
SEAL, CABLE #18-20 AWG, WHITE
26
73213-07
RETAINER,X-MAS TREE CLIP
27
74112-98BK
HSG 2 WAY SOCKET BLACK
28
74152-98
SECONDARY LOCK,2WAY,SCKT
29
74191-98
SOCKET TERMINAL
30
12500014
CABLE STRAP
31
12500018
STRAP,TIE,XMAS,2 PIECE
32
69200187
TERMINAL,SOCKET,#12 AWG,4.8(PO)
33
69200190
WIRE SEAL,#12AWG,4.8(PO)
34
69201423
DC LEAD ASSEMBLY
35
69200221
TERMINAL,SOCKET,#16-18AWG(PO)
36
69200222
WIRE SEAL,#16AWG
37
69201778
CONNECTOR,EHCU
38
69201789
CONNECTOR,WSS,BLACK
39
69201792
CONNECTOR,TRAPEZ,5-PIN
40
69201811
TERMINAL,SOCKET,20-22 GA
41
69201812
WIRE HARN SUB-CMPNT,SEAL,20-22 GA,RED
42
69201818
TERMINAL,1.2 MM CAVITIES,20-22 GA
43
69201821
WIRE HARN SUB-CMPNT,PLUG,WHT,1.2 MM
44
69201822
WIRE HARN SUB-CMPNT,COVER,W/CAP
45
72632-10
PLUG,WEATHER,4-WAY PIN
46
69201820
WIRE HARN SUB-CMPNT,PLUG,GRN,2.8 MM
