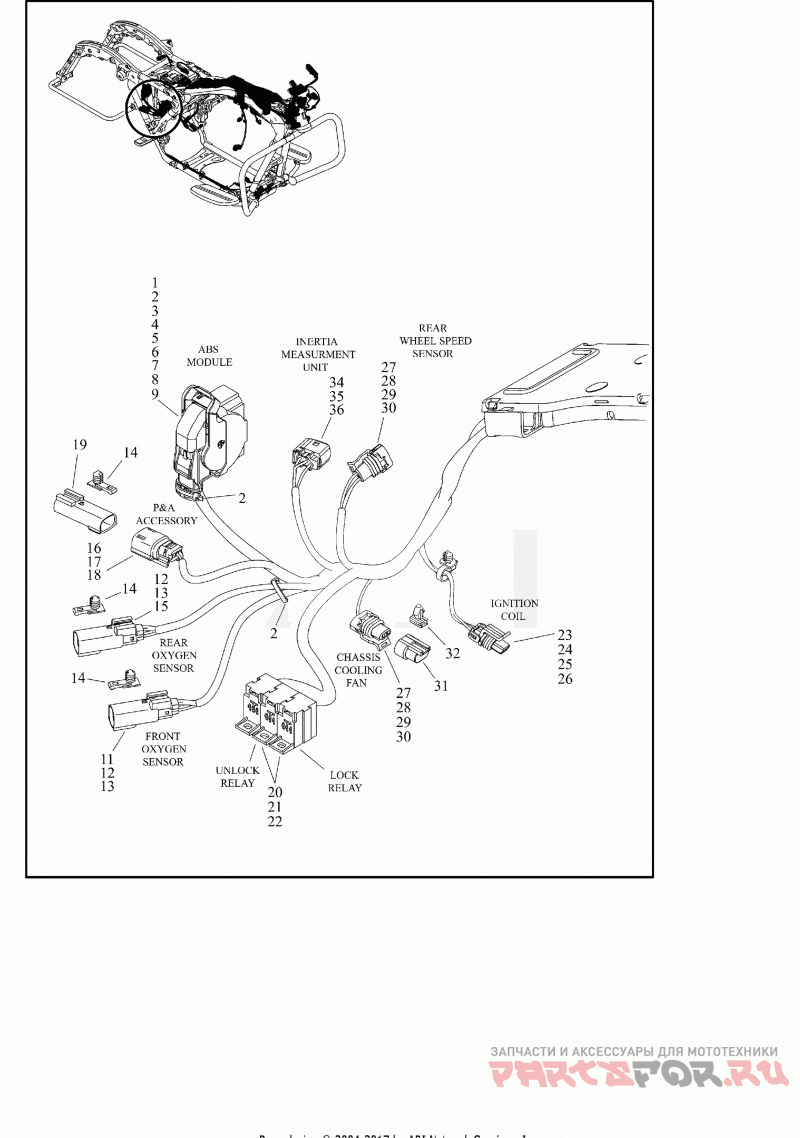

WIRING HARNESS, MAIN (7 OF 10)

Harley Davidson FLHXSE 1PXL CVO STREET GLIDE (2021)

Harley Davidson
#oem кодцена
1
69200183
CONNECTOR,26-WAY SOCKET
2
69200184
COVER,90DEG-WIRE DRESS,26-WAY SCKT
3
69200185
TERMINAL,SOCKET,#20 AWG,1.5(PO)
4
69200186
TERMINAL,SOCKET,#14-16 AWG,2.8(PO)
5
69200187
TERMINAL,SOCKET,#12 AWG,4.8(PO)
6
69200188
WIRE SEAL,#20AWG,1.5(PO)
7
69200189
WIRE SEAL,#14-16AWG,2.8(PO)
8
69200190
WIRE SEAL,#12AWG,4.8(PO)
9
69200191
SEAL PIN,PLUG,1.5(PO)
10
10065
CABLE STRAP
11
72169-07
TERMINAL,PIN,#16-20 AWG
12
72343-10
TERMINAL,PIN,#16-20AWG/GOLD
13
72415-07GY
HOUSING,4-WAY,PIN/GREY
14
73213-07
RETAINER,X-MAS TREE CLIP
15
72175-07BK
HOUSING,4-WAY,PIN/BLACK
16
72512-07BK
HOUSING,3-WAY,SCKT/BLACK
17
72473-07
SEAL PIN
18
72168-07
TERMINAL,SOCKET,#18-20 AWG
19
72519-09BK
DUSTCAP,3-WAY SOCKET
20
9937
TERMINAL .25 FASTON 18-14GA
21
72427-00
TERMINAL,FAST-ON,.187,16-22 GA
22
69200600
MOUNTING,RELAY
23
72484-08
TERMINAL,SOCKET,#20AWG
24
72486-08
WIRE SEAL,#20AWG,GREEN
25
72544-07
SECONDARY LOCK,3-WAY,FEM
26
72589-09
HOUSING, 3-WAY SOCKETS
27
72606-08
HOUSING, 2-WAY SOCKET
28
72609-08
SECONDARY LOCK, 2-WAY SCKT/BLACK
29
72610-08
SEAL, CABLE #18-20 AWG, WHITE
30
72213-94
TERMINAL SCKT 16-20AWG
31
72533-06
DUST CAP,2-PIN CONN
32
10147
CLIP,CONNECTOR
33
10177
CABLE STRAP,X-MAS TREE MOUNT
34
69201814
TERMINAL,SOCKET
35
69201301
WIRE SEAL,#20-22AWG,GREEN
36
69201779
CONNECTOR,IMU
