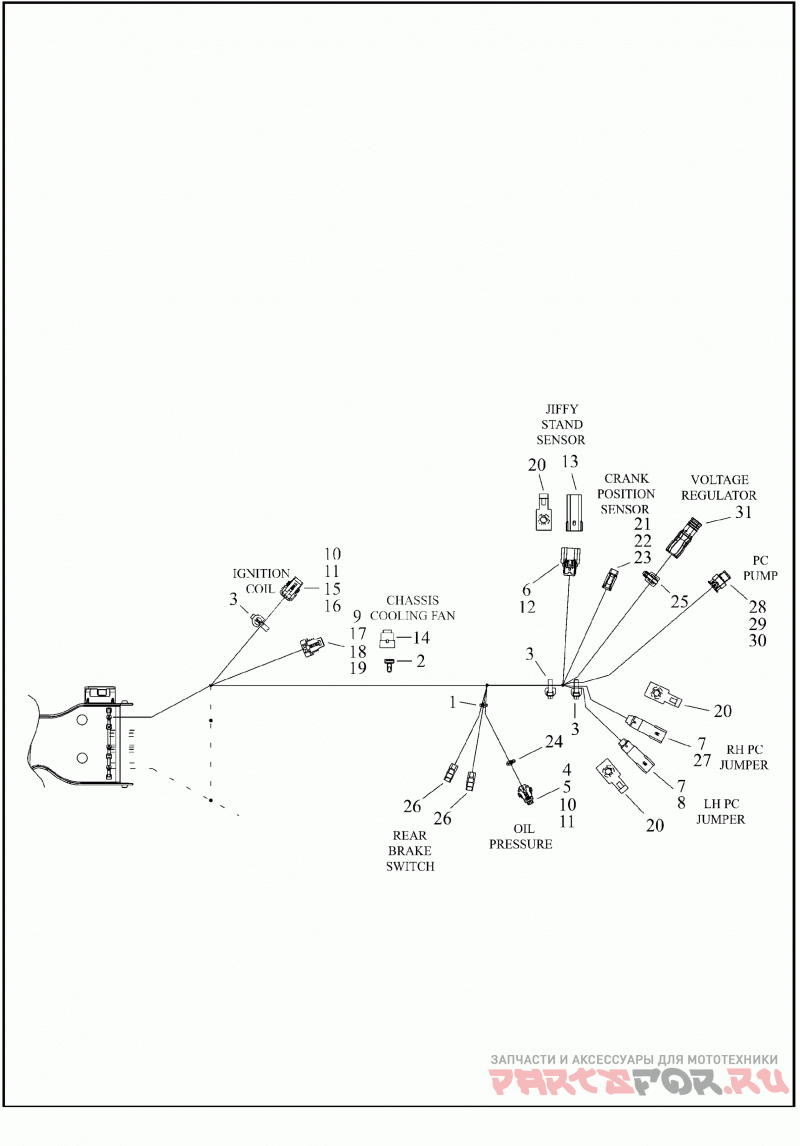

WIRING HARNESS, MAIN (8 OF 10)

Harley Davidson FLHTKSE 1TEH CVO ULTRA LIMITED (2021)

Harley Davidson
#oem кодцена
1
10065
CABLE STRAP
2
10147
CLIP,CONNECTOR
3
10177
CABLE STRAP,X-MAS TREE MOUNT
4
72065-06A
HOUSING, 3-WAY SOCKET
5
72127-06
SECONDARY LOCK,3-WAY.FEM/GRAY
6
72168-07
TERMINAL,SOCKET,#18-20 AWG
7
72169-07
TERMINAL,PIN,#16-20 AWG
8
72175-07BK
HOUSING,4-WAY,PIN/BLACK
9
72213-94
TERMINAL SCKT 16-20AWG
10
72484-08
TERMINAL,SOCKET,#20AWG
11
72486-08
WIRE SEAL,#20AWG,GREEN
12
72512-07BK
HOUSING,3-WAY,SCKT/BLACK
13
72519-09BK
DUSTCAP,3-WAY SOCKET
14
72533-06
DUST CAP,2-PIN CONN
15
72544-07
SECONDARY LOCK,3-WAY,FEM
16
72589-09
HOUSING, 3-WAY SOCKETS
17
72606-08
HOUSING, 2-WAY SOCKET
18
72609-08
SECONDARY LOCK, 2-WAY SCKT/BLACK
19
72610-08
SEAL, CABLE #18-20 AWG, WHITE
20
73213-07
RETAINER,X-MAS TREE CLIP
21
74112-98BK
HSG 2 WAY SOCKET BLACK
22
74152-98
SECONDARY LOCK,2WAY,SCKT
23
74191-98
SOCKET TERMINAL
24
12500014
CABLE STRAP
25
12500018
STRAP,TIE,XMAS,2 PIECE
26
69200238
TERMINAL,.250F,INSULATED
27
69200272
CONNECTOR,2-WAY PIN
28
69201301
WIRE SEAL,#20-22AWG,GREEN
29
69201406
HOUSING,3-WAY SOCKET
30
69201407
TERMINAL,SOCKET,#20 AWG
31
69201423
DC LEAD ASSEMBLY
