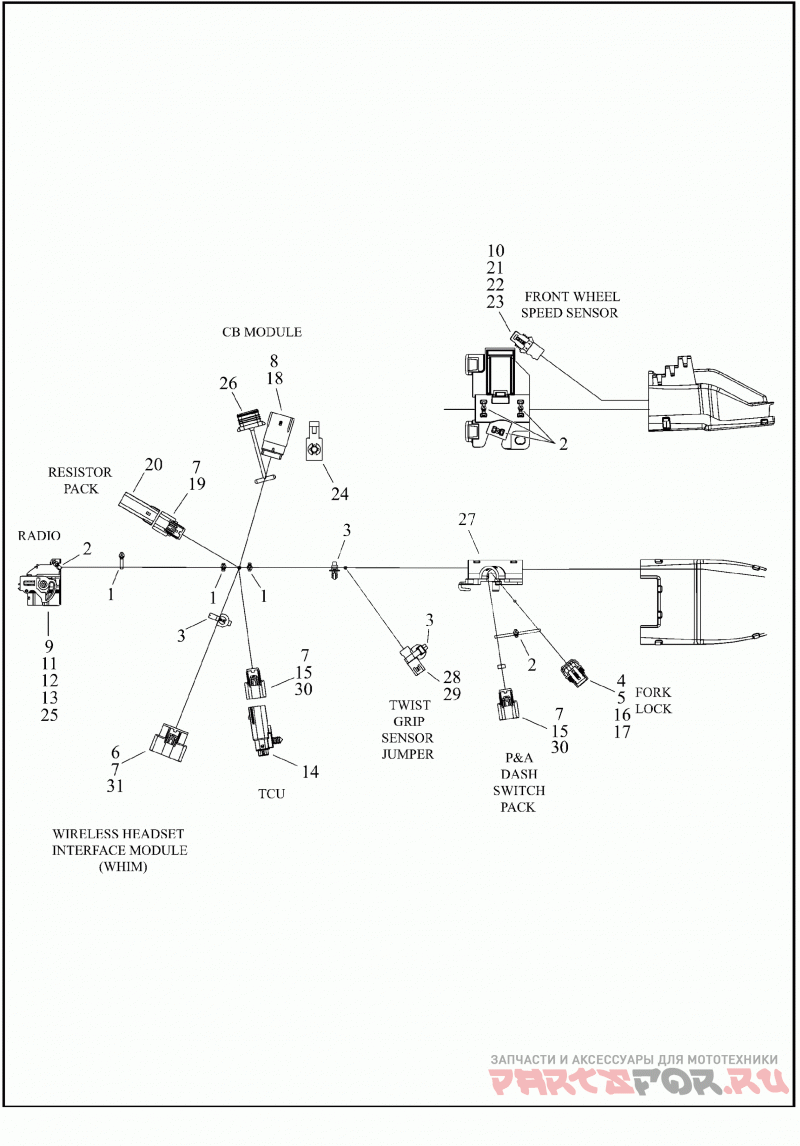

WIRING HARNESS, MAIN (2 OF 10)

Harley Davidson FLHTKSE 1TEH CVO ULTRA LIMITED (2021)

Harley Davidson
#oem кодцена
1
10006
CABLE STRAP
2
10065
CABLE STRAP
3
10177
CABLE STRAP,X-MAS TREE MOUNT
4
72066-06A
HOUSING,4-WAY SOCKET,FEM
5
72135-06
SECONDARY LOCK, 4-WAY, FEMALE, GRAY
6
73307-10
TERMINAL,SOCKET,#22AWG
7
72168-07
TERMINAL,SOCKET,#18-20 AWG
8
72169-07
TERMINAL,PIN,#16-20 AWG
9
72209-11
COVER,WIRE DRESS
10
72213-94
TERMINAL SCKT 16-20AWG
11
72222-11
TERMINAL(0.6MM)SCKT,#18-20AWG(PO)
12
72226-11
TERMINAL(1.5MM)SCKT,#14-16AWG
13
72256-11
SEAL PIN,0.6MM,PLUG
14
69202412
CONNECTOR,DUST CAP
15
72473-07
SEAL PIN
16
72484-08
TERMINAL,SOCKET,#20AWG
17
72486-08
WIRE SEAL,#20AWG,GREEN
18
72488-07BK
HOUSING,12-WAY,PIN/BLACK
19
72512-07BK
HOUSING,3-WAY,SCKT/BLACK
20
72545-08
RESISTOR ASY, FUEL SENDER
21
72606-08
HOUSING, 2-WAY SOCKET
22
72610-08
SEAL, CABLE #18-20 AWG, WHITE
23
72639-10
SECONDARY LOCK,2-WAY SCKT,CONDUIT
24
73213-07
RETAINER,X-MAS TREE CLIP
25
69200193
HOUSING,48-WAY SOCKET
26
69200205
PLUG,WEATHER,12-WAY PIN
27
69200215
CADDY,RH-STEER HD(PO)
28
69201163
CONNECTOR,6-WAY PIN,BLACK
29
69201164
TERMINAL,PIN,#22AWG
30
72414-07BK
HOUSING, 6-WAY SOCKET, BLACK
31
72491-07GY
HOUSING, 16-WAY SOCKET, GRAY
