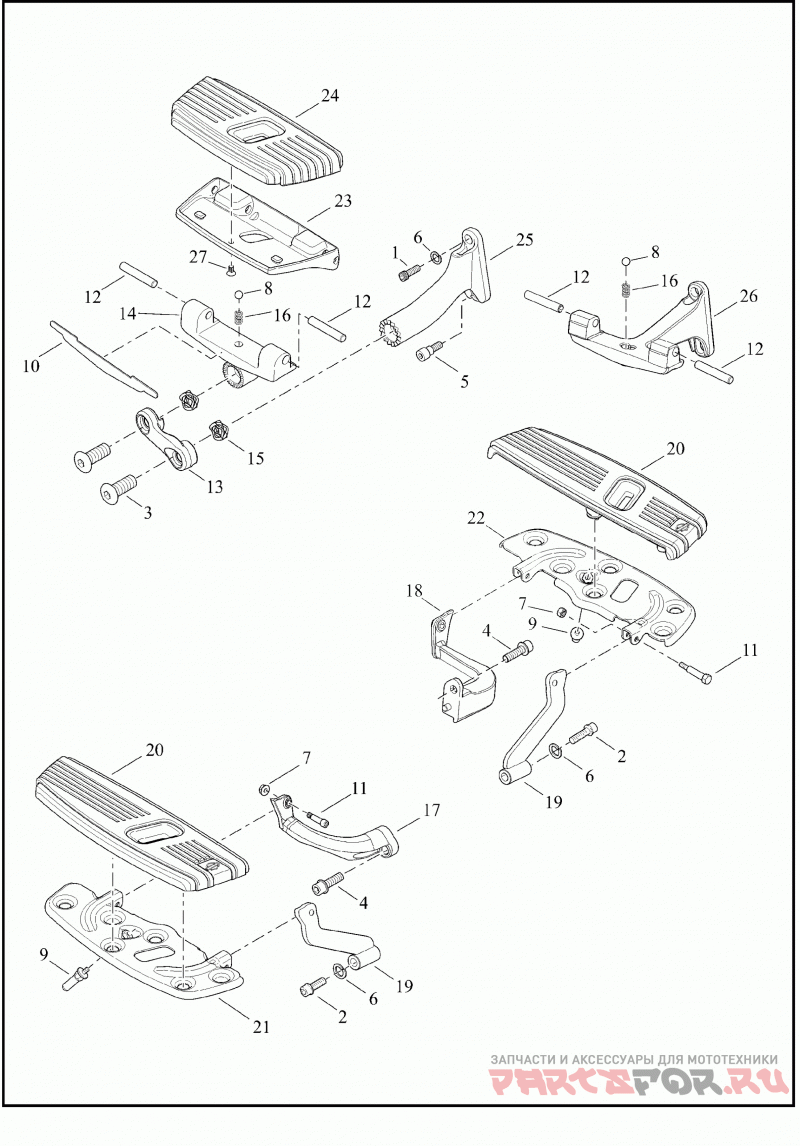

FOOTBOARDS

Harley Davidson FLHTKSE 1TEH CVO ULTRA LIMITED (2021)

Harley Davidson
#oem кодцена
1
3143
SCREW,HEX SOC HD CAP/LOCK
2
10200429
SCREW,SOC HD CAP,W/LOCKPATCH
3
4631
SCREW,HEX SCKT,FTBRD SUPRT
4
4688
SCREW,HEX SCKT,SEMS,3/8-16X1-1/4
5
4916
SCREW,SHOULDER HEX SOC,HD CAP/LOCK
6
7038
LOCKWASHER,REGULAR
7
7716
NUT,FLANGE LOCKING
8
8861
Шарик
9
33130-07A
WEAR PEG,FTRST
10
44430-04
PAD,RUBBER
11
50674-05
SHOULDER BOLT
12
50933-86A
PIVOT PIN
13
50998-07
FTBRD,ARM,ROTATING,ADJ PASS,CHRM
13
51356-07A
FTBRD,ARM,ROTATING,ADJ PASS,BLK
13
51006-07A
FTBRD,ARM,ROTATING,ADJ PASS,CHRM
13
51355-07B
FTBRD,ARM,ROTATING,ADJ PASS,BLK
14
51007-07
SUPPORT,PSNGR FTBRD/CHRM
14
51358-07A
SUPPORT,PSNGR FTBRD/BLK
15
51023-07
WAVE SPRING
16
51501-07
Пружина
17
50518-09
BRACKET,RH/RR FTBRD MTG
18
50622-09A
BRACKET,LH/RR,FTBRD MTG
19
47200302A
BRKT,CHAS STRUCT MTG,BRACKET,ASY, FRT
20
50501218
FTBRD,ASSY,RH RIDER,CHRM
20
50501219
FTBRD,ASSY,LH RIDER,CHRM
20
50501989
FTBRD,ASSY,RH,RIDER,SSCHRM
20
50501990
FTBRD,ASSY,LH,RIDER,SSCHRM
21
50501220
FTBRD,BOTTOM,RH
22
50501221
FTBRD,BOTTOM,LH
23
50501211
FTBRD,HOUSING,PASS,RH,CHRM
23
50501210
FTBRD,HOUSING,PASS,LH,CHRM
23
50502000
FTBRD,HOUSING,PASS,RH,SSCHRM
23
50501999
FTBRD,HOUSING,PASS,LH,SSCHRM
24
50501154
FTBRD,ASSY,LH,PASS,CHRM
24
50501155
FTBRD,ASSY,RH,PASS,CHRM
24
50502001
FTBRD,ASSY,LH,PASS,SSCHRM
24
50502002
FTBRD,ASSY,RH,PASS,SSCHRM
25
50500397
BRKT,FTPEG MT,MAIN,ARM,ADJ,CHRM
25
50501061
BRKT,FTPEG MT,MAIN,ARM,ADJ,BLK
26
52719-10
SUPPORT,FTBRD/GLOSS BLACK
27
2361
SCREW,FLAT,HEX SCKT/LOCK
27
2548
SCREW,FLAT,CSUNK,HEX SCKT
