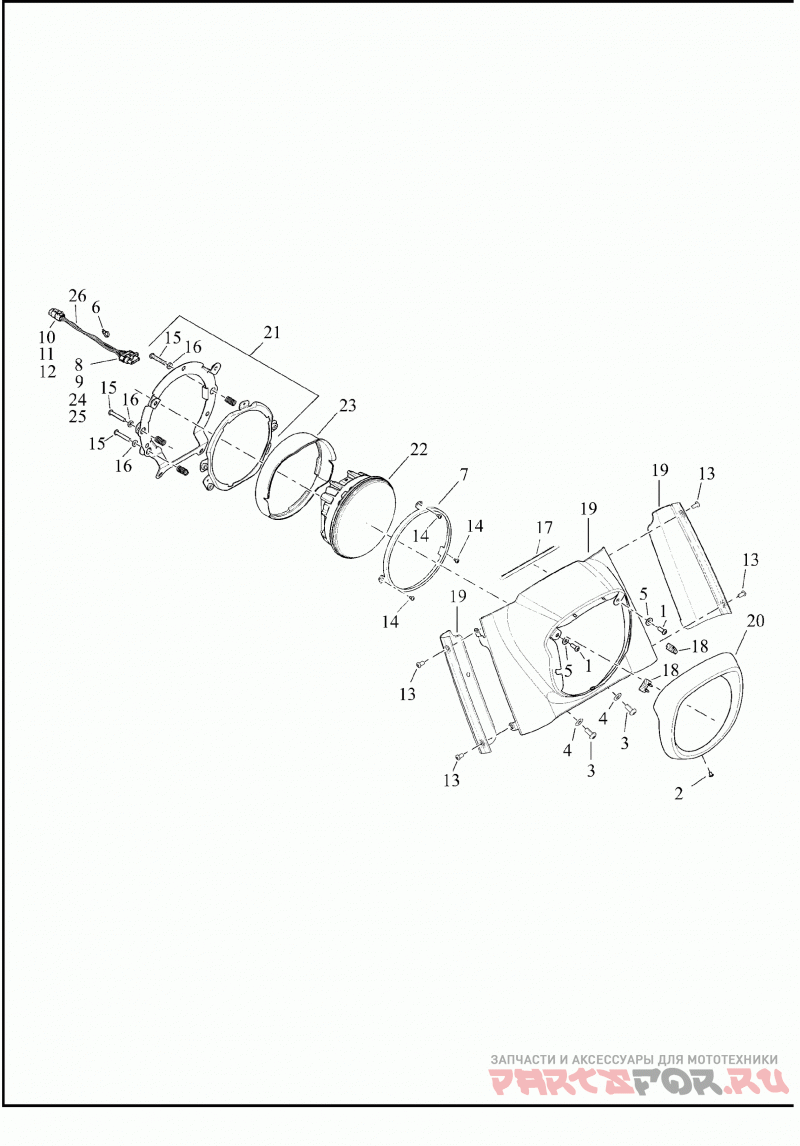

HEADLAMP AND NACELLE - FLFBS

Harley Davidson FLFBS 1YGK FAT BOY 114 (2021)

Harley Davidson
#oem кодцена
1
1001
SCREW,BTNHD,LOCKING,TORX DRIVE
2
10200668
SCREW,10-32X.25
3
4613
SCREW,BTN,TORX/LOCK
4
6702
WASHER,PLAIN,TYPE-A
5
6703
WASHER,PLAIN,TYPE-A
6
10177
CABLE STRAP,X-MAS TREE MOUNT
7
67726-08
RING ASY,HDLAMP(PO)
8
72213-94
TERMINAL SCKT 16-20AWG
9
72610-08
SEAL, CABLE #18-20 AWG, WHITE
10
74114-98BK
HOUSING,4-WAY SOCKET/BLACK
11
74154-98
SECONDARY LOCK,4-WAY SOCKET
12
74191-98
SOCKET TERMINAL
13
10200032
SCREW,TORX BTN HD,W/LOCKPATCH
14
10200225
SCREW,SELF-TAP/TAPTITE TORX
15
10200642
SCREW,BTN,HEX SCKT, 1/4-20X1.5
16
10300145
WASHER,NEOPRENE
17
61400612
TRIM,NACELLE
18
57300193
BODYWORK MISC CMPNT,BUMPER, BEZEL
19
61300817
KIT,COS CVR,HDLT,NACELLE,CHROME
20
61400452
BEZEL,HDLT,TRIM,NAC BEZEL,CHRM
21
67700333
BRKT,HDLT SPRT,ASSEMBLY,HDLT MTG RING
22
67700339A
HEADLIGHT,7IN RND REFL LED,BLK,LMP
23
67700458
HEADLIGHT,GASKET
24
69200254
CONNECTOR,4-WAY SOCKET(PO)
25
69200256
LOCK, SECONDARY, 4WAY
26
69201777
HARNESS,WIRE,HEADLAMP JUMPER
