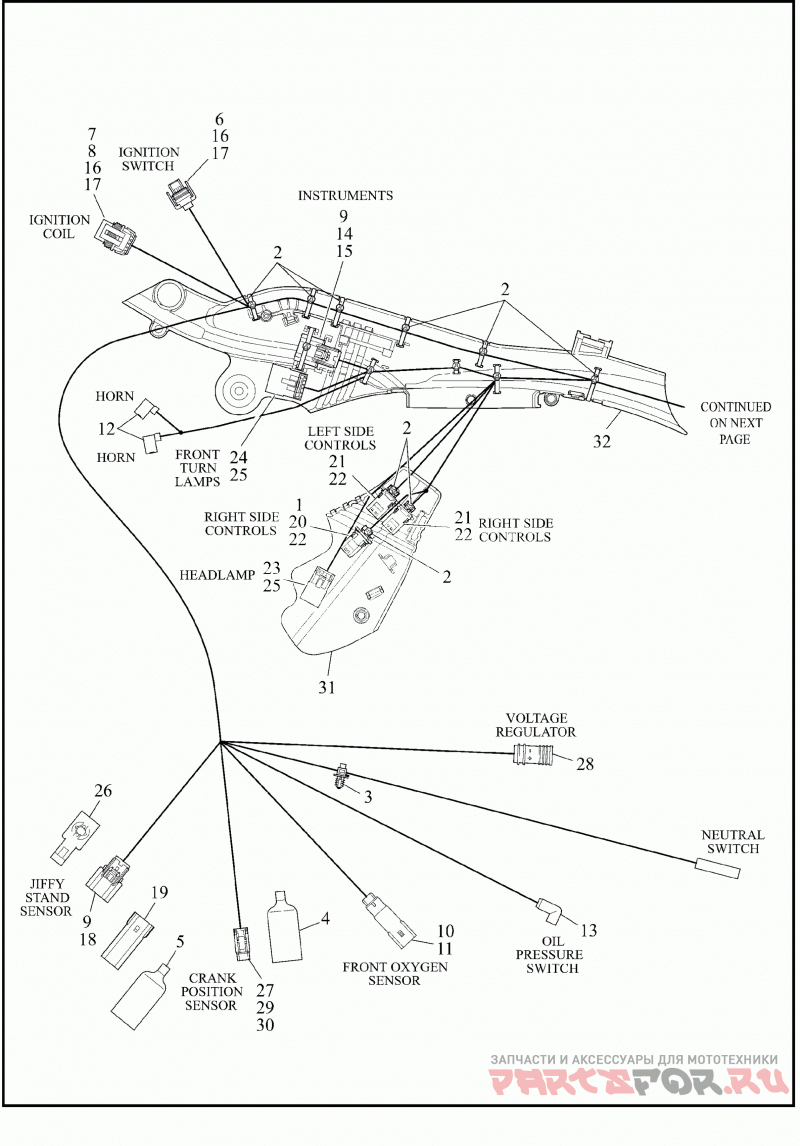

WIRING HARNESS, MAIN, NON-ABS

Harley Davidson XL1200C 1CT3 1200 CUSTOM (2020)

Harley Davidson
#oem кодцена
1
5118
SEAL PIN
2
10006
CABLE STRAP
3
10177
CABLE STRAP,X-MAS TREE MOUNT
4
70598-99
WIRE HARN SUB-CMPNT,BOOT,SENSOR
5
70664-08
BOOT,JFYSTND SENSOR
6
72062-06
HOUSING, 2-WAY FEMALE
7
72066-06A
HOUSING,4-WAY SOCKET,FEM
8
72135-06
SECONDARY LOCK, 4-WAY, FEMALE, GRAY
9
72168-07
TERMINAL,SOCKET,#18-20 AWG
10
72169-07
TERMINAL,PIN,#16-20 AWG
11
72175-07BK
HOUSING,4-WAY,PIN/BLACK
12
72283-09
TERMINAL,.250F,INSULATED,FLAG
13
72405-98BK
WIRE ASY,BLACK,RT-ANGLE
14
72414-07BK
HOUSING, 6-WAY SOCKET, BLACK
15
72473-07
SEAL PIN
16
72484-08
TERMINAL,SOCKET,#20AWG
17
72486-08
WIRE SEAL,#20AWG,GREEN
18
72512-07BK
HOUSING,3-WAY,SCKT/BLACK
19
72519-09BK
DUSTCAP,3-WAY SOCKET
20
72905-11
HOUSING,2-WAY PIN
21
72907-11
HOUSING,4-WAY PIN
22
72909-11
TERMINAL,PIN,#20-22AWG
23
73104-96BK
HSG PIN 4 PLC
24
73106-96BK
HSG PIN 6 PLC SINGLE ROW
25
73190-96
TERMINAL,PIN,#16-20AWG
26
73213-07
RETAINER,X-MAS TREE CLIP
27
74112-98BK
HSG 2 WAY SOCKET BLACK
28
74120-08
DC LEAD ASY
29
74152-98
SECONDARY LOCK,2WAY,SCKT
30
74191-98
SOCKET TERMINAL
31
69200402A
CADDY,WIRE HARNESS(PO)
32
69200403
CADDY,STEERING HEAD(PO)
