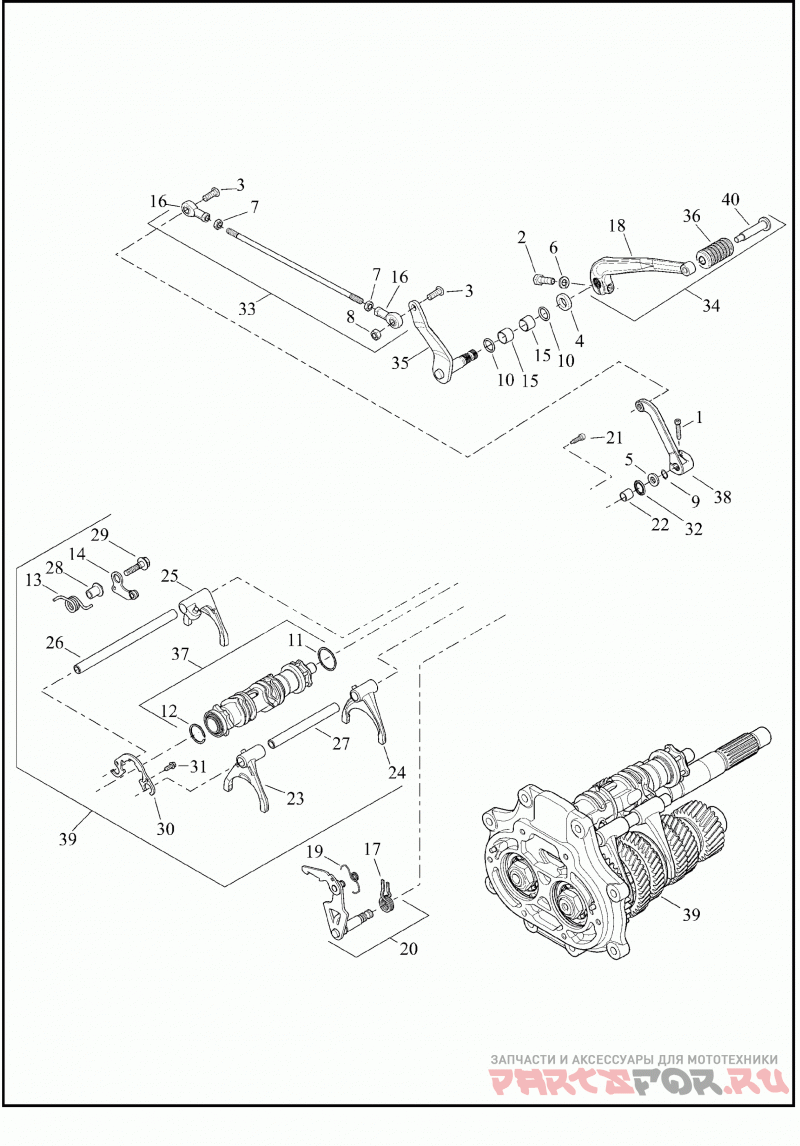

SHIFTER, GEAR

Harley Davidson FXDRS 1YVK FXDR 114 (2020)

Harley Davidson
#oem кодцена
1
856A
SCREW,HEX SCKT HD CAP
2
4017
SCREW HEX CAP
3
4387
SCREW HXSOC BUTTON
4
6057
WASHER,NYLON
5
6497HW
Шайба
6
7041
LOCKWASHER,REGULAR
7
7744
NUT,HEX JAM
8
7727
NUT,HEX,LOCK
9
11150
RETAINING RING
10
11191
Уплотнительное кольцо
11
11389
RETAINING RING
12
11575
RETAINING RING
13
33389-07
SPRING,DETENT
14
33409-06B
DETENT ARM KIT
15
33708-94
BEARING SLEEVE
16
33871-85B
SHIFTER ROD END
17
34064-00C
SPRING,SHIFTER RETURN
18
33600179
PEDAL,SHF,FOOT, CHROME
18
33900200
LEVER,ENGN SHF,X
19
34987-06
SPRING,RATCHET ARM
20
35081-06
SHIFTER MECHANISM ASY
21
35082-07
CENTERING SCREW,SHIFTLEVER
22
35186-06A
INT SHFTR MECH CMPNT,SLEEVE,PIVOT SHAFT
23
35187-06
SHIFTER FORK ASY,1ST/2ND GEAR
24
35210-06
SHIFTER FORK ASY,3RD/4TH GEAR
25
35217-06
SHIFTER FORK ASY,5TH/6TH GEAR
26
35222-06A
FORK,SHFTR,SHAFT
27
35223-06A
FORK,SHFTR,SHAFT
28
35243-06
SLEEVE,DETENT ARM
29
35244-06
SCREW,HEX FLANGE,SPECIAL/LOCK
30
35249-06A
LOCKPLATE,SHFTR CAM BEARING
31
35259-06
SCREW,HEX FLANGE/LOCK
32
11000101
SEAL,SHIFT SHAFT
33
33600123
SHIFT LKGE ROD ASSY,FWD
34
33600211
SUB-ASSY,SHF LVR,FWD
35
33600132
SUB-ASSY,SHF LVR,GEAR
36
33600156
RUBBER,TOEPEG,SHIFTER
37
33900172
SHIFTER CAM ASY
38
33900175
LEVER,GEARSHIFT,TRANS
39
35000198A
SUB-ASSY,XMSN MAINSHFT,GEARPACK,BLK
40
34591-08
PEG,STUD
53
35000198A
SUB-ASSY,XMSN MAINSHFT,GEARPACK,BLK
54
34591-08
PEG,STUD
