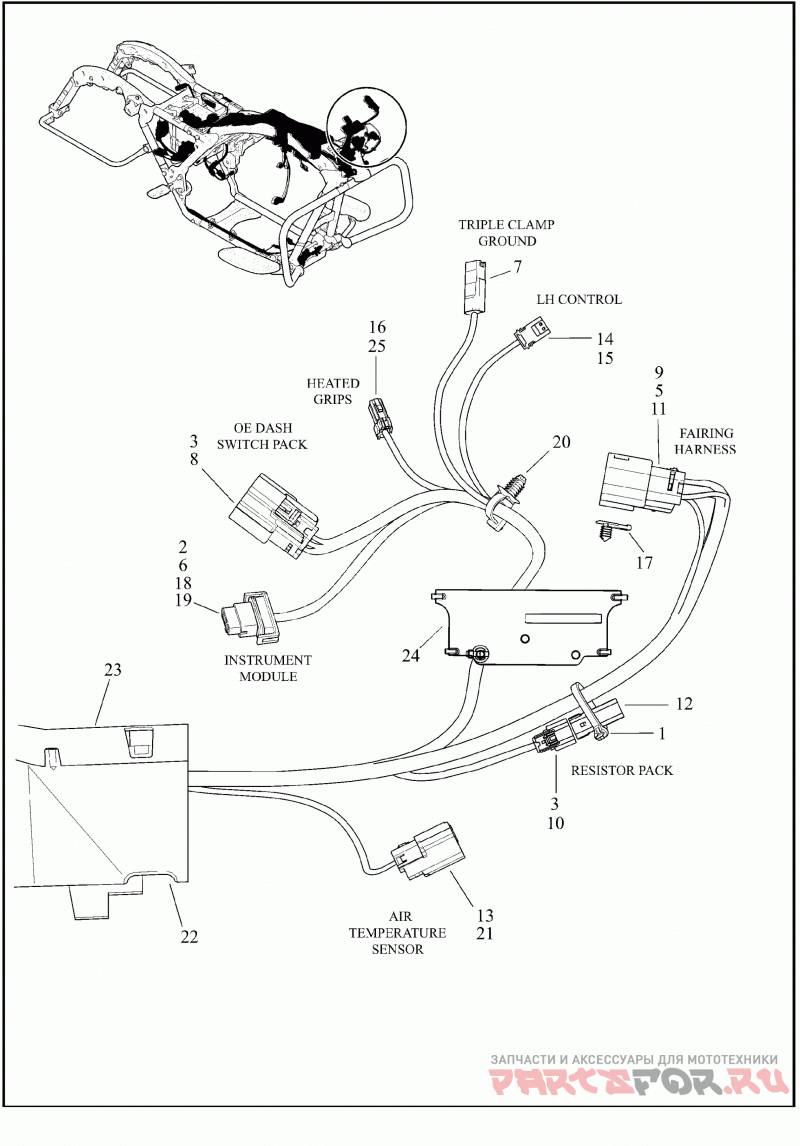

WIRING HARNESS, MAIN

Harley Davidson FLTRXSE 1TCL CVO ROAD GLIDE (2020)

Harley Davidson
#oem кодцена
1
10006
CABLE STRAP
2
72130-04
HOUSING,12-WAY,SCKT/BLACK
3
72168-07
TERMINAL,SOCKET,#18-20 AWG
5
72169-07
TERMINAL,PIN,#16-20 AWG
6
72189-04
SEAL PIN
7
72290-94
TERMINAL,.250F,INSULATED
8
72414-07BK
HOUSING, 6-WAY SOCKET, BLACK
9
72473-07
SEAL PIN
10
72512-07BK
HOUSING,3-WAY,SCKT/BLACK
11
72490-07GY
HOUSING,12-WAY,PIN/GREY
12
72545-08
RESISTOR ASY, FUEL SENDER
13
72721-07
TERMINAL, SOCKET #18-20 AWG, MOLEX MX64
14
72907-11
HOUSING,4-WAY PIN
15
72909-11
TERMINAL,PIN,#20-22AWG
16
72912-01BK
HSG SOCKET 2 WAY BLACK
17
73213-07
RETAINER,X-MAS TREE CLIP
18
74196-04
TERMINAL,SCKT,#20AWG
19
74197-04
SECONDARY LOCK
20
12500002
CABLE STRAP,XMAS,2-PC(PO)
21
69200201
HOUSING,2-WAY,SCKT,KEY B(PO)
22
69200202A
BRKT,ELEC MT,WIRE TROUGH
23
69200203A
BRKT,ELEC MT,WIRE TROUGH COVER ASSEMBLY
24
69200700
GUIDE,WIRE HARNESS,NACELLE
25
69201240
TERMINAL,SOCKET,#18AWG
