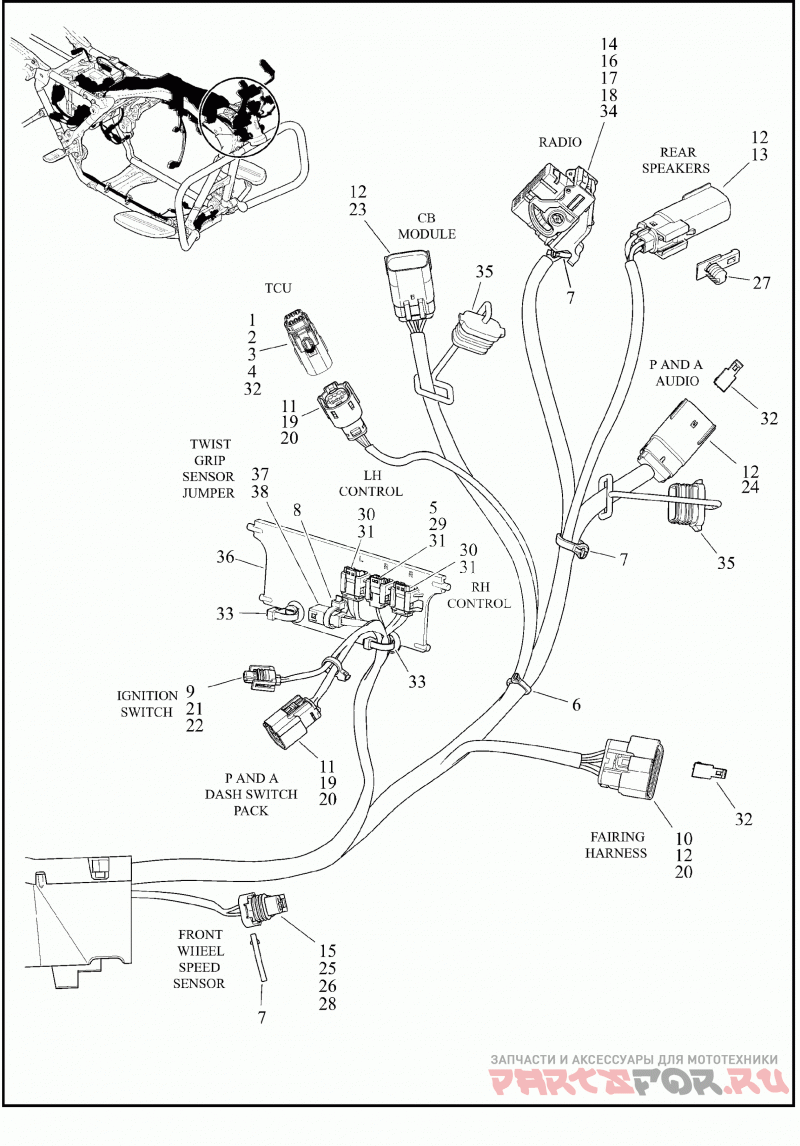

WIRING HARNESS, MAIN - FLTRX, FLTRXS (2 OF 10)

Harley Davidson FLTRX 1KHC ROAD GLIDE (2020)

Harley Davidson
#oem кодцена
1
72188-07BK
HOUSING,6-WAY PIN/BLACK
2
72473-07
SEAL PIN
3
73213-07
RETAINER,X-MAS TREE CLIP
4
69202412
CONNECTOR,DUST CAP
4
69201991
HARNESS,WIRE,MAIN,W/ABS,ECC,FLTRX/S
5
5118
SEAL PIN
6
10006
CABLE STRAP
7
10065
CABLE STRAP
8
10177
CABLE STRAP,X-MAS TREE MOUNT
9
72062-06
HOUSING, 2-WAY FEMALE
10
72167-07BK
HOUSING,16-WAY,PIN/BLACK
11
72168-07
TERMINAL,SOCKET,#18-20 AWG
12
72169-07
TERMINAL,PIN,#16-20 AWG
13
72175-07BK
HOUSING,4-WAY,PIN/BLACK
14
72209-11
COVER,WIRE DRESS
15
72213-94
TERMINAL SCKT 16-20AWG
16
72222-11
TERMINAL(0.6MM)SCKT,#18-20AWG(PO)
17
72226-11
TERMINAL(1.5MM)SCKT,#14-16AWG
18
72256-11
SEAL PIN,0.6MM,PLUG
19
72414-07BK
HOUSING, 6-WAY SOCKET, BLACK
20
72473-07
SEAL PIN
21
72484-08
TERMINAL,SOCKET,#20AWG
22
72486-08
WIRE SEAL,#20AWG,GREEN
23
72488-07BK
HOUSING,12-WAY,PIN/BLACK
24
72490-07GY
HOUSING,12-WAY,PIN/GREY
25
72606-08
HOUSING, 2-WAY SOCKET
26
72610-08
SEAL, CABLE #18-20 AWG, WHITE
27
72632-10
PLUG,WEATHER,4-WAY PIN
28
72639-10
SECONDARY LOCK,2-WAY SCKT,CONDUIT
29
72905-11
HOUSING,2-WAY PIN
30
72907-11
HOUSING,4-WAY PIN
31
72909-11
TERMINAL,PIN,#20-22AWG
32
73213-07
RETAINER,X-MAS TREE CLIP
33
12500002
CABLE STRAP,XMAS,2-PC(PO)
34
69200193
HOUSING,48-WAY SOCKET
35
69200205
PLUG,WEATHER,12-WAY PIN
36
69200700
GUIDE,WIRE HARNESS,NACELLE
37
69201163
CONNECTOR,6-WAY PIN,BLACK
38
69201164
TERMINAL,PIN,#22AWG
