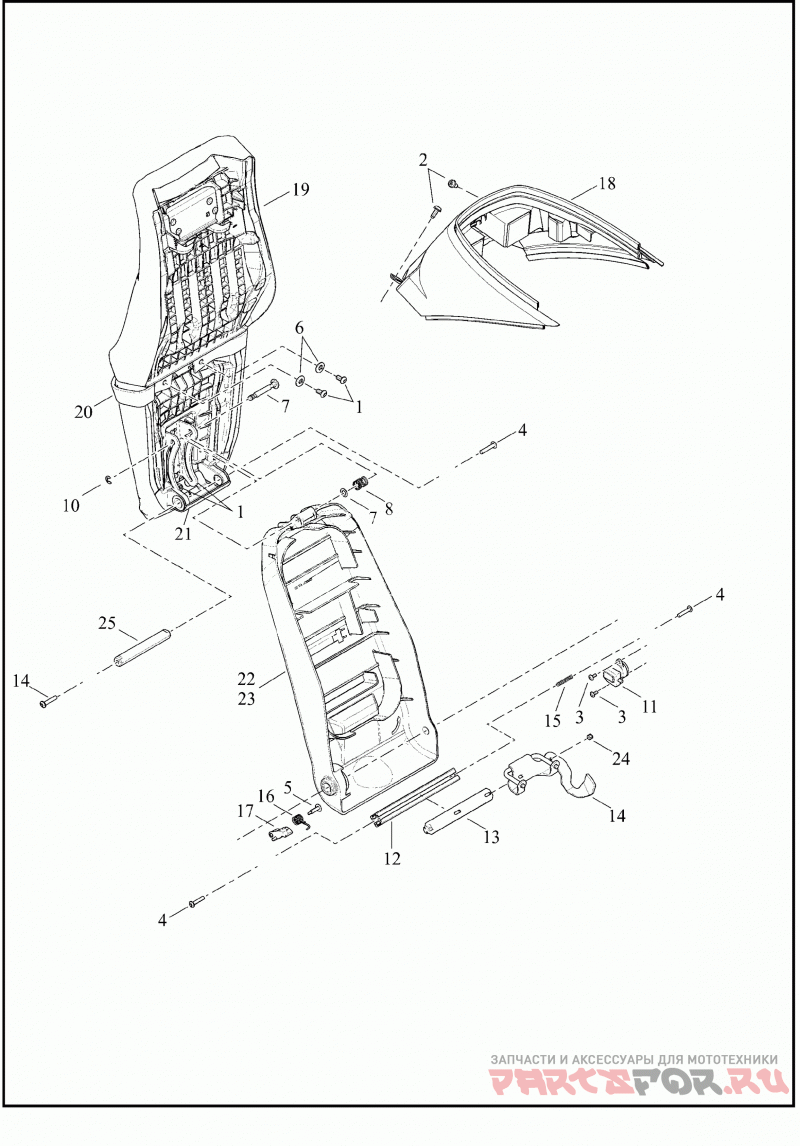

Сиденье

Harley Davidson ELW 2XAE LIVEWIRE (2020)

Harley Davidson
#oem кодцена
1
3731M
SCREW BTN,HEX SCKT/LOCK
2
10200777
SCREW,M6X1.0-16,BHCS TORX SEMS,GR 5.8,DO
3
10200795
SCREW,BTH FLG, TORX, M4X10
4
10200796
SCREW,BTH FLG, TORX, M5X25
5
10200809
SCREW,BTH FLG, TORX, 5MM SHOULDER
7
10300192
WASHER,M7,FLAT,PLASTIC
8
11700042
SPRING,COIL,CPRSN,M8 X 17.5MM
9
12000082
PIN,PVT,EVSE TRAY
10
12200202
CLIP,RETG,M7,EVSE PVT PIN
11
45600062
KIT,FORK LOCK,SEAT LOCK, W/KEYSET
12
47200523
STRUCT TAILSECT SUB-CMPNT,FR, X-MBR
13
47200524
CHASSIS STRUCT MISC CMPNT,LATCH, SLIDE
14
47200525
CHASSIS STRUCT MISC CMPNT,LATCH
15
47200526
CHASSIS STRUCT MISC CMPNT,SPRG, CPRSN
16
47200527
CHASSIS STRUCT MISC CMPNT,SPRG, TORSION
17
47200621
CHASSIS STRUCT MISC CMPNT,PLASTIC LIFTER
18
52000393
RIDER/FULL SEAT ASSY SUB-CMPNT,WINGS
19
52000394
KIT,RDR SEAT,AMP
20
52400198
HANDLE,PASS GRAB,AMP
21
52400216
PASS SEAT SUB-CMPNT,COSMETIC COVER
22
69201885
BRKT,ELEC MT,CADDY,EVSE,J1772
23
69201886
BRKT,ELEC MT,CADDY,EVSE,IEC
24
10100119
NUT,LOCKING, M4, SS, NYLON INSERT
25
47200505
STRUCT TAILSECT SUB-CMPNT,RH, X-MBR
