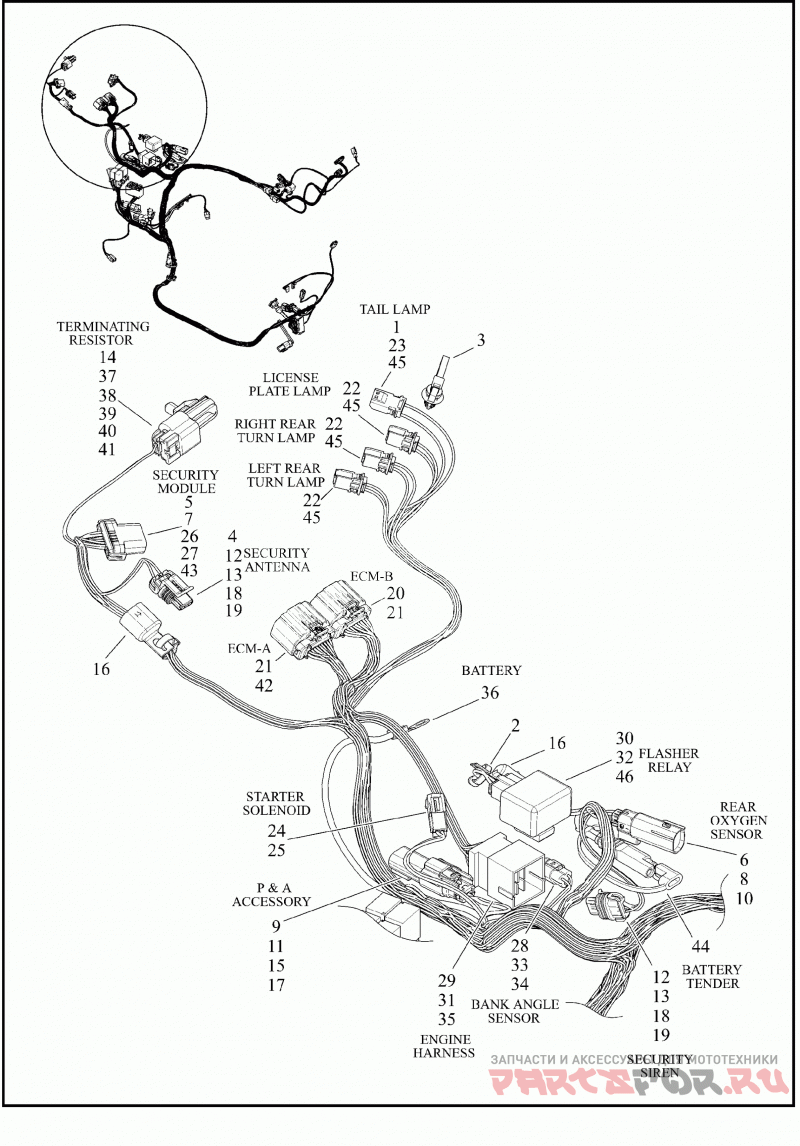

WIRING HARNESS, MAIN ABS, XG750A (REAR UPPER)

Harley Davidson XG750A 4NCG STREET ROD (2019)

Harley Davidson
#oem кодцена
1
5118
SEAL PIN
2
10006
CABLE STRAP
3
10177
CABLE STRAP,X-MAS TREE MOUNT
4
72097-06
CAVITY PLUG,OVAL/ORANGE
5
72130-04
HOUSING,12-WAY,SCKT/BLACK
6
72169-07
TERMINAL,PIN,#16-20 AWG
7
72189-04
SEAL PIN
8
72175-07BK
HOUSING,4-WAY,PIN/BLACK
9
72272-07
TERMINAL, SOCKET #14-16 AWG
10
72343-10
TERMINAL,PIN,#16-20AWG/GOLD
11
72473-07
SEAL PIN
12
72484-08
TERMINAL,SOCKET,#20AWG
13
72486-08
WIRE SEAL,#20AWG,GREEN
14
72499-07
WIRE SEAL,#20-22 AWG,GREEN
15
72512-07BK
HOUSING,3-WAY,SCKT/BLACK
16
72516-01
DUSTCAP,SIREN CONNECTOR
17
72519-09BK
DUSTCAP,3-WAY SOCKET
18
72543-07BK
HOUSING,3-WAY,SCKT/BLACK
19
72544-07
SECONDARY LOCK,3-WAY,FEM
20
72665-12A
HOUSING,18-WAY SOCKET,KEY B,GY
21
72666-12
TERMINAL,SOCKET,#18-20AWG,SILVER
22
72905-11
HOUSING,2-WAY PIN
23
72907-11
HOUSING,4-WAY PIN
24
73102-96BK
HSG PIN 2 PLC
25
73190-96
TERMINAL,PIN,#16-20AWG
26
74196-04
TERMINAL,SCKT,#20AWG
27
74197-04
SECONDARY LOCK
28
69200553
HOUSING,3-WAY SOCKET/WHITE
29
69200638
HOUSING,16-WAY PIN/GRAY
30
69200639
HOUSING,3-WAY SOCKET/NATURAL
31
69200649
TERMINAL,MALE,0.3-0.5 SQ MM
32
69200651
TERMINAL,FEMALE,0.5-1.25 SQ MM
33
69200657
TERMINAL,SPADE,0.3-1.25 SQ MM
34
69200667
SEAL, 0.5 SQ MM
35
69200668
SEAL,0.3-0.5 MM
36
69200675
TERMINAL,6 4MM RING,5-8 SQ. MM
37
69201396
TERMINAL,SOCKET,#20 AWG
38
69201400
HOUSING,2-WAY, SOCKET,BK,CPA
39
69201401
SECONDARY LOCK 2-WAY SOCKET
40
69201404
ANCHOR,CONNECTOR
41
69201405
RESISTOR PACK
42
69201480
CONNECTOR,18-WAY SOCKET,KEY A,BK
43
69201484
CONNECTOR,DUST COVER
44
69201517
CONNECTOR,BATTERY TENDER
45
69201699
TERMINAL,PIN,#22 AWG
46
71400124
RELAY,FLASHER LED
