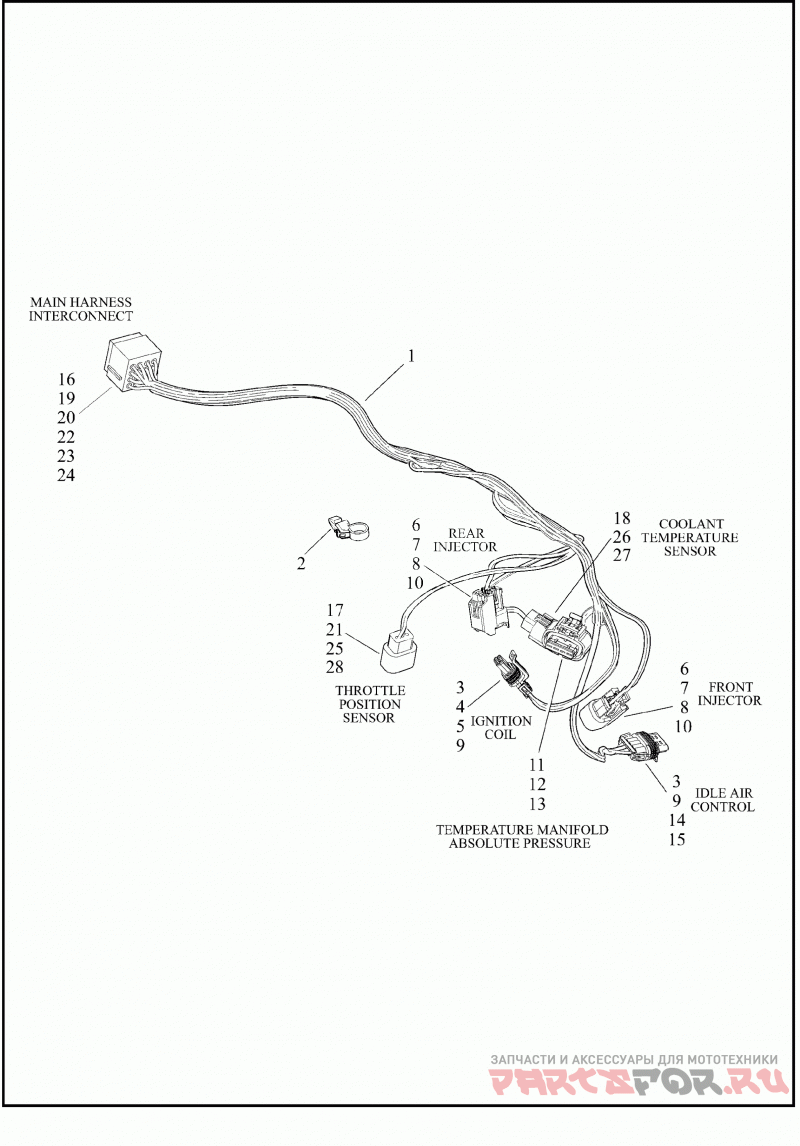

WIRING HARNESS, ENGINE

Harley Davidson XG750A 4NCG STREET ROD (2019)

Harley Davidson
#oem кодцена
1
69201497
HARNESS,WIRE,ASSY,ENGINE
2
10073
CABLE STRAP,ROSEBUD MNT
3
72066-06A
HOUSING,4-WAY SOCKET,FEM
4
72094-06
TERMINAL,SCKT,FEM,#18AWG
5
72096-06
WIRE SEAL,#18 AWG/YELLOW
6
72098-06
HOUSING,2-WAY,FEM
7
72099-06
WIRE SEAL,#16-18AWG/BLUE
8
72110-06
TERMINAL,FEM,#16-18AWG
9
72135-06
SECONDARY LOCK, 4-WAY, FEMALE, GRAY
10
72145-06
SECONDARY LOCK,2-WAY,FEM/BLUE
11
72406-07A
HOUSING,4-WAY SOCKET
12
72407-07
TERMINAL SOCKET 16-20AWG
13
72408-07
WIRE SEAL #16 20AWG/BLUE
14
72484-08
TERMINAL,SOCKET,#20AWG
15
72486-08
WIRE SEAL,#20AWG,GREEN
16
69200678
HOUSING,16-WAY SOCKET/GRAY
17
69200679
HOUSING,3-WAY SOCKET,BLACK
18
69200680
HOUSING,2-WAY SOCKET,BLUE
19
69200681
SEAL,1.5-2 MM
20
69200682
SEAL,1.25-2 SQ MM
21
69200683
SEAL, 0.5 SQ MM
22
69200685
TERMINAL,FEMALE,0.3-0.5 SQ MM
23
69200686
TERMINAL,FEMALE,0.75-0.85 SQ MM
24
69200687
TERMINAL,FEMALE,1.25-2 SQ MM
25
69200688
TERMINAL, SOCKET, 0.5 SQ MM
26
69200647
TERMINAL,FEMALE,0.3-1.25 SQ MM
27
69200664
SEAL, 0.5 SQ MM
28
69201036
CONNECTOR,SECONDARY LOCK
