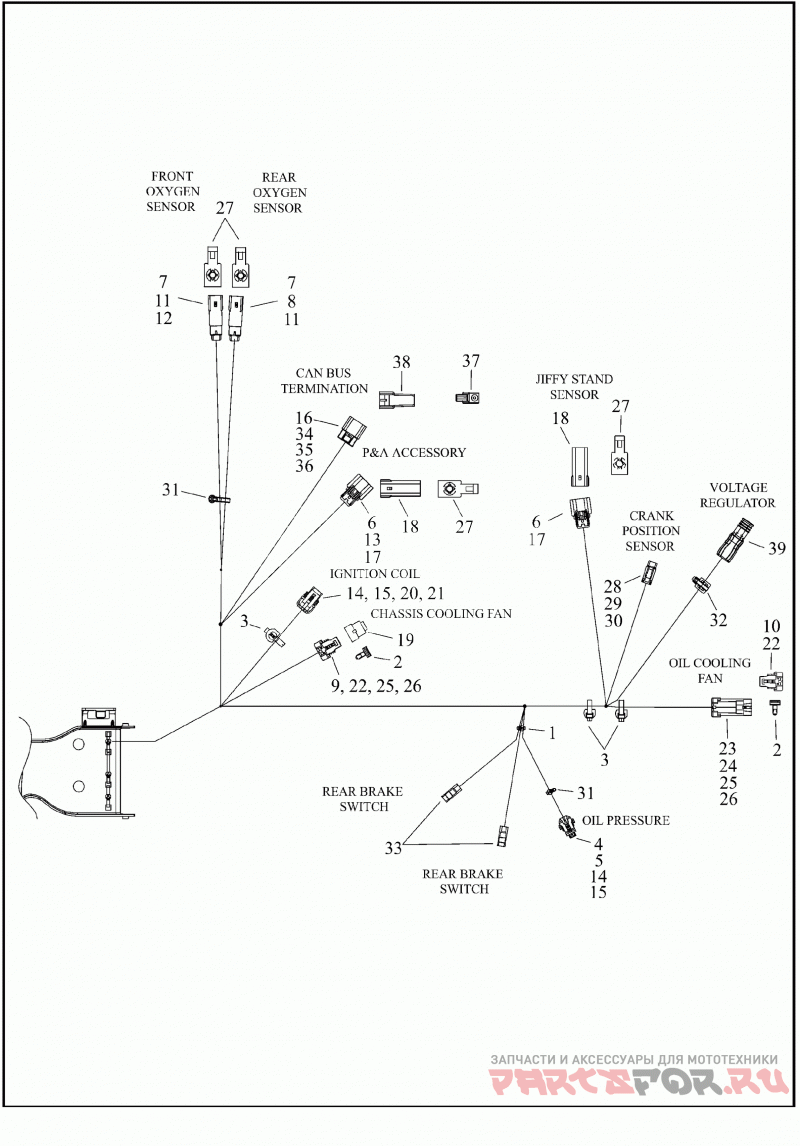

WIRING HARNESS, MAIN, NON-ABS - FLHT, FLHX (7 OF 8)

Harley Davidson FLHT 1FVC ELECTRA GLIDE STANDARD (2019)

Harley Davidson
#oem кодцена
1
10065
CABLE STRAP
2
10147
CLIP,CONNECTOR
3
10177
CABLE STRAP,X-MAS TREE MOUNT
4
72065-06A
HOUSING, 3-WAY SOCKET
5
72127-06
SECONDARY LOCK,3-WAY.FEM/GRAY
6
72168-07
TERMINAL,SOCKET,#18-20 AWG
7
72169-07
TERMINAL,PIN,#16-20 AWG
8
72175-07BK
HOUSING,4-WAY,PIN/BLACK
9
72213-94
TERMINAL SCKT 16-20AWG
10
72232-96
SEAL PLUG
11
72343-10
TERMINAL,PIN,#16-20AWG/GOLD
12
72415-07GY
HOUSING,4-WAY,PIN/GREY
13
72473-07
SEAL PIN
14
72484-08
TERMINAL,SOCKET,#20AWG
15
72486-08
WIRE SEAL,#20AWG,GREEN
16
72499-07
WIRE SEAL,#20-22 AWG,GREEN
17
72512-07BK
HOUSING,3-WAY,SCKT/BLACK
18
72519-09BK
DUSTCAP,3-WAY SOCKET
19
72533-06
DUST CAP,2-PIN CONN
20
72544-07
SECONDARY LOCK,3-WAY,FEM
21
72589-09
HOUSING, 3-WAY SOCKETS
22
72606-08
HOUSING, 2-WAY SOCKET
23
72607-08
HOUSING, 2-WAY PIN
24
72608-08
TERMINAL,PIN,16-20AWG,150 METRI-PACK
25
72609-08
SECONDARY LOCK, 2-WAY SCKT/BLACK
26
72610-08
SEAL, CABLE #18-20 AWG, WHITE
27
73213-07
RETAINER,X-MAS TREE CLIP
28
74112-98BK
HSG 2 WAY SOCKET BLACK
29
74152-98
SECONDARY LOCK,2WAY,SCKT
30
74191-98
SOCKET TERMINAL
31
12500014
CABLE STRAP
32
12500018
STRAP,TIE,XMAS,2 PIECE
33
69200238
TERMINAL,.250F,INSULATED
34
69201396
TERMINAL,SOCKET,#20 AWG
35
69201400
HOUSING,2-WAY, SOCKET,BK,CPA
36
69201401
SECONDARY LOCK 2-WAY SOCKET
37
69201404
ANCHOR,CONNECTOR
38
69201405
RESISTOR PACK
39
69201423
DC LEAD ASSEMBLY
