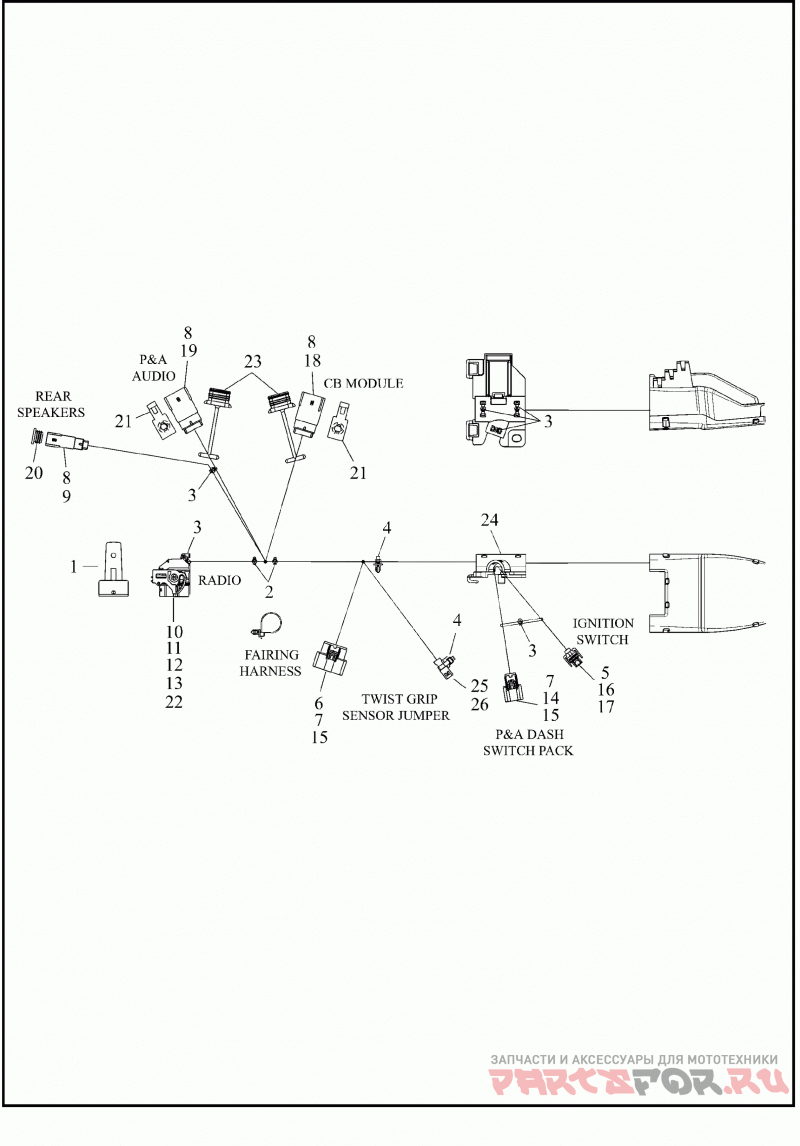

WIRING HARNESS, MAIN, NON-ABS - FLHT, FLHX (2 OF 8)

Harley Davidson FLHT 1FVC ELECTRA GLIDE STANDARD (2019)

Harley Davidson
#oem кодцена
1
69202354
Деталь CONNECTOR,WEATHER CAP,RADIO
1
69201125A
Деталь HARNESS,WIRE,MAIN,FLHX
2
10006
Деталь CABLE STRAP
3
10065
Деталь CABLE STRAP
4
10177
Деталь CABLE STRAP,X-MAS TREE MOUNT
5
72062-06
Деталь HOUSING, 2-WAY FEMALE
6
72166-07BK
Деталь HOUSING, 16-WAY SOCKET, BLACK
7
72168-07
Деталь TERMINAL,SOCKET,#18-20 AWG
8
72169-07
Деталь TERMINAL,PIN,#16-20 AWG
9
72175-07BK
Деталь HOUSING,4-WAY,PIN/BLACK
10
72209-11
Деталь COVER,WIRE DRESS
11
72222-11
Деталь TERMINAL(0.6MM)SCKT,#18-20AWG(PO)
12
72226-11
Деталь TERMINAL(1.5MM)SCKT,#14-16AWG
13
72256-11
Деталь SEAL PIN,0.6MM,PLUG
14
72414-07BK
Деталь HOUSING, 6-WAY SOCKET, BLACK
15
72473-07
Деталь SEAL PIN
16
72484-08
Деталь TERMINAL,SOCKET,#20AWG
17
72486-08
Деталь WIRE SEAL,#20AWG,GREEN
18
72488-07BK
Деталь HOUSING,12-WAY,PIN/BLACK
19
72490-07GY
Деталь HOUSING,12-WAY,PIN/GREY
20
72632-10
Деталь PLUG,WEATHER,4-WAY PIN
21
73213-07
Деталь RETAINER,X-MAS TREE CLIP
22
69200193
Деталь HOUSING,48-WAY SOCKET
23
69200205
Деталь PLUG,WEATHER,12-WAY PIN
24
69200215
Деталь CADDY,RH-STEER HD(PO)
25
69201163
Деталь CONNECTOR,6-WAY PIN,BLACK
26
69201164
Деталь TERMINAL,PIN,#22AWG
