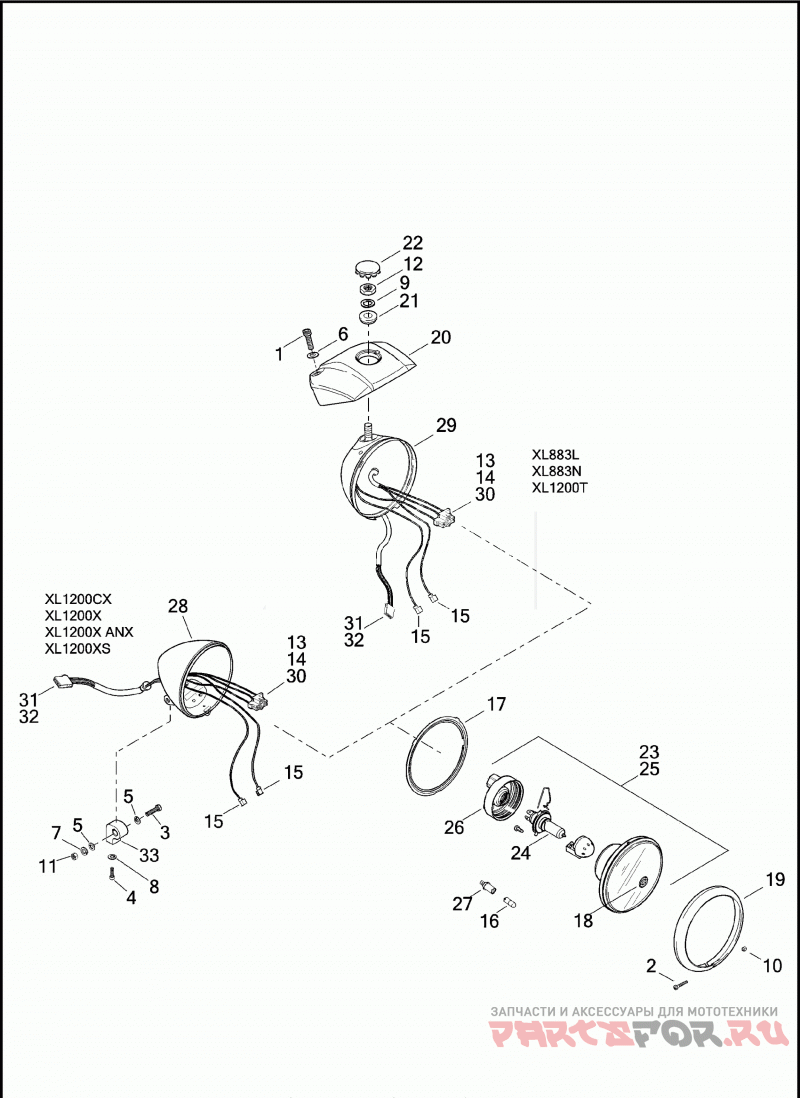

HEADLAMP - XL883L, XL883N, XL1200CX, XL1200T, XL1200X, XL1200XS, 1200X ANX

Harley Davidson XL1200XS 1LR3 FORTY-EIGHT SPECIAL (2018)

Harley Davidson
#oem кодцена
2
3514
SCREW NO. 8-32 X 1 FILLISTER HEAD (GRADE 5)
3
4724
BOLT 3/8-24 X 1-1/2 HEX HEAD (GRADE 5)
4
4748
SCREW 3/8-16 X 1-1/8 SOCKET HEAD (GRADE 8)
5
6701
WASHER 3/8 X 13/16 X 1/16
7
7038
LOCKWASHER 3/8
8
7045
LOCKWASHER 3/8 HIGH COLLAR
10
7606
LOCKNUT NO. 8-32 X 1/4 X 1/4 HEX (CHROME)
11
7800W
NUT 3/8-24 X 5/16 X 9/16 (GRADE 2)
13
9847
CONNECTOR SOCKET, 14-20 AWG (RIGHT)
14
9848
CONNECTOR SOCKET, 14-20 AWG (LEFT)
15
9898
TERMINAL FLAG
16
53436-97
BULB (HDI, AUSTRALIA, ENGLAND, JAPAN, ASIA-PACIFIC, INDIA, BRAZIL)
17
67883-04A
ADAPTER RING
18
67667-05
MEDALLION
19
67790-93A
BEZEL (CHROME)
23
68297-05B
HDLT SUB-CMPNT,LAMP ASSY,5-3/4 IN,DOM
24
68329-03
BULB
25
68335-05A
LAMP ASSEMBLY WITH 16, 18, 24, 26, 27 (LEFT) (AUSTRALIA, ENGLAND, JAPAN, INDIA)
25
68341-05A
LAMP ASSEMBLY WITH 16, 18, 24, 26, 27 (RIGHT) (HDI, ASIA-PACIFIC, BRAZIL)
26
68380-05
чехол
27
68653-05
SOCKET BULB (2 SPADE) (HDI, AUSTRALIA, ENGLAND, JAPAN, ASIA-PACIFIC, INDIA, BRAZIL)
28
73264-10
HEADLAMP SHELL WITH 13, 14, 15, 30, 31, 32 (BLACK)
30
72056-92
HOUSING THREE-WAY SOCKET (BLACK)
31
73154-96BK
HOUSING FOUR-WAY SOCKET (BLACK)
32
73191-96
TERMINAL SOCKET, 16-20 AWG
33
73266-10
MOUNT
