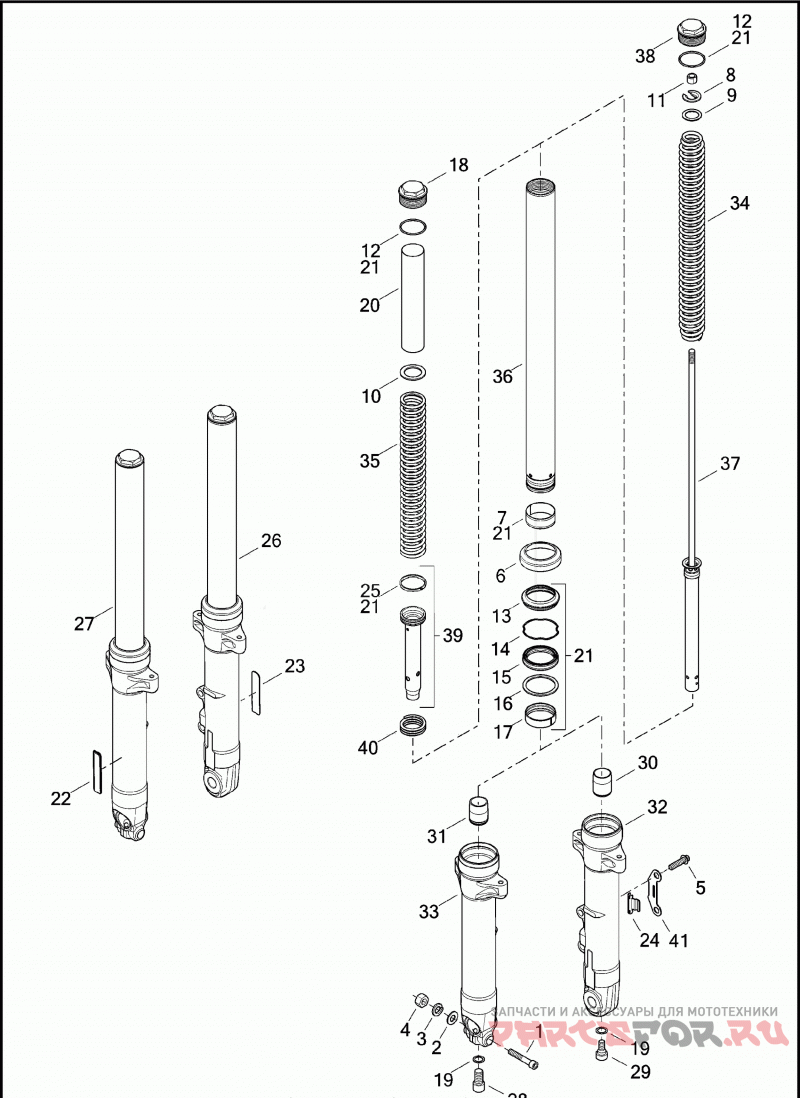

FORK, FRONT - XL1200X, XL1200X ANX, XL1200XS

Harley Davidson XL1200XS 1LR3 FORTY-EIGHT SPECIAL (2018)

Harley Davidson
#oem кодцена
1
4029A
SCREW 3/8-16 X 2-1/4 SOCKET HEAD (BLACK)
2
6701
WASHER 3/8 X 13/16 X 1/16
3
7038
LOCKWASHER 3/8
4
7783
NUT 3/8-16 X 5/16 X 9/16 (GRADE 2)
5
44160-00
Болт
6
45070-01
Крышка
7
46080-01
SLIDE BUSHING
8
46236-02
SEAT (LEFT)
9
46237-02
WASHER (LEFT)
10
46509-01
WASHER 30 X 43 X 2.3
11
46262-02
LOCKNUT (LEFT)
12
46508-01
Уплотнительное кольцо
13
46512-01A
Пыльник
14
46513-01
STOPPER RING
15
46514-01A
Сальник
16
46515-01
SPACER SEAL
17
46516-01
GUIDE BUSHING
18
46612-06
CAP (RIGHT)
19
46615-06
Шайба
20
46670-07
COLLAR SPRING
21
45500307
FRONT FORK SERVICE KIT WITH 7, 12, 13, 14, 15, 16, 17, 25
22
59481-00
REFLECTOR (AMBER) (RIGHT)
23
59482-00
REFLECTOR (AMBER) (LEFT)
24
70494-08
CLIP (ABS)
25
22000031
PISTON RING (RIGHT)
26
45400084
FORK SLIDER AND TUBE ASSEMBLY (LEFT)
27
45400085
FORK SLIDER AND TUBE ASSEMBLY (RIGHT)
28
45500118
SCREW M14 X 1.25 X 25 HEX SOCKET CAP (ZINC)
29
45500236
SCREW (LEFT)
30
45500233
OIL LOCK (LEFT)
31
45500251
OIL LOCK (RIGHT)
32
45500287
SLIDER ASSEMBLY (LEFT)
33
45500290
SLIDER ASSEMBLY (RIGHT)
34
45500293
SPRING (LEFT)
35
45500294
SPRING (RIGHT)
36
45500295
SLIDER TUBE WITH 46080-01
37
45500296
CARTRIDGE (LEFT)
38
45500297
CAP (LEFT)
39
45500298
DAMPER TUBE WITH RING (RIGHT)
40
45500343
SPRING (RIGHT)
41
69200460
BRACKET (ABS)
