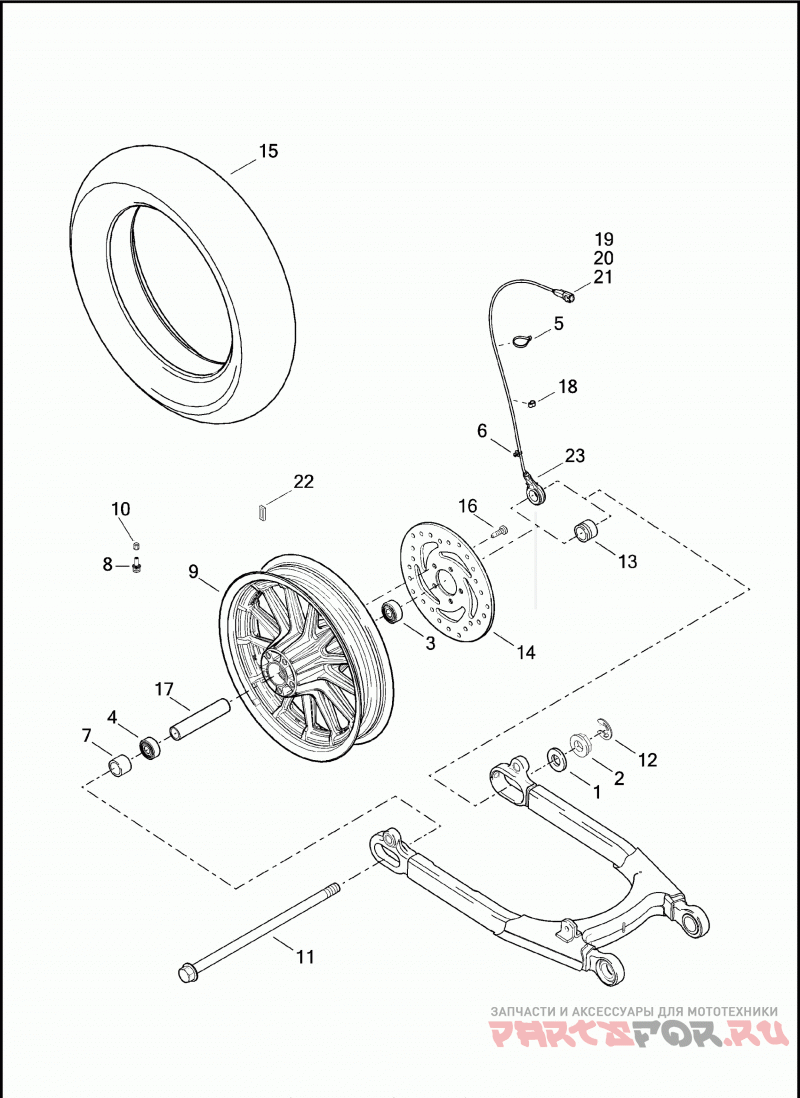

WHEELS, REAR, CAST - XL883L, XL883N, XL1200CX, XL1200NS, XL1200T, XL1200X, 1200X ANX, XL1200XS, 1200C (INDIA ONLY)

Harley Davidson XL1200NS 1LP3 IRON 1200 (2018)

Harley Davidson
#oem кодцена
1
6551
WASHER 1 X 1-5/8 X 1/8 HARDENED
2
8020
NUT M24 X 2.0 X 15
3
9252A
BALL BEARING 25 MM (ABS) (1200C INDIA)
3
9276B
BALL BEARING 25 MM (NON-ABS) (2)
4
9276B
BALL BEARING 25 MM (ABS) (1200C INDIA)
5
10006
CABLE STRAP (ABS)
6
10177
CABLE STRAP (ABS)
7
40930-05
SPACER (RIGHT)
8
40999-87
VALVE STEM (1200C INDIA)
9
40900644
WHEEL ASSEMBLY 16 IN (9 SPOKE) (BLACK) WITHOUT BEARINGS AND SLEEVES (NOT SHOWN)
10
41123-79
VALVE CAP (1200C INDIA)
11
41176-08
AXLE ASSEMBLY
12
41229-08
RETAINING RING
13
41242-08
SPACER (LEFT) (NON-ABS)
14
41833-08
BRAKE DISC (1200C INDIA)
15
40878-11
TIRE (1200C INDIA)
16
43567-92
SCREW 3/8-16 X 1 TORX PAN HEAD, WITH LOCKPATCH
17
43905-08
SLEEVE (1200C INDIA)
18
70631-08
CONDUIT CLIP (ABS)
19
74102-98BK
HOUSING TWO-WAY PIN (ABS) (BLACK)
20
74142-98
SECONDARY LOCK TWO-WAY PIN (ABS)
21
74190-98
TERMINAL PIN, 16-20 AWG (ABS)
22
95594-84C
WHEEL WEIGHT 5 G (BLACK)
23
41100023
SENSOR RING (ABS)
