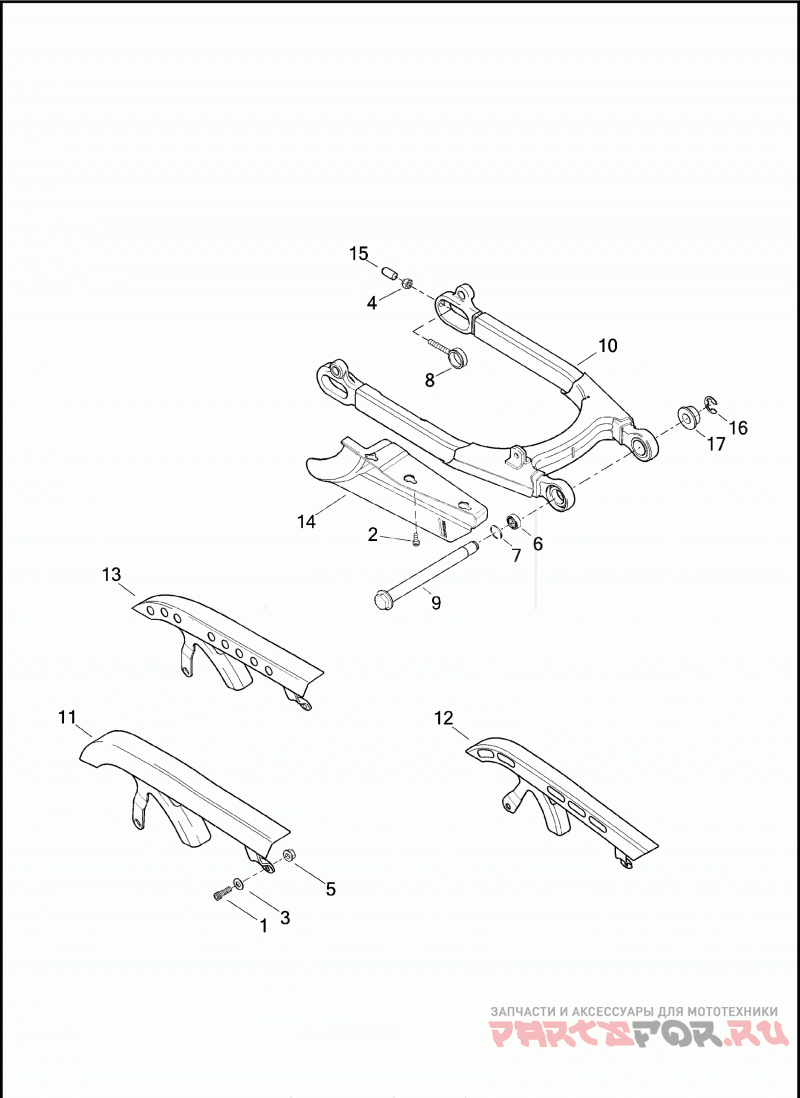

FORK, REAR, DEBRIS DEFLECTOR AND BELT GUARD

Harley Davidson XL1200NS 1LP3 IRON 1200 (2018)

FORK, REAR, DEBRIS DEFLECTOR AND BELT GUARD

#

oem код

название

цена

1

SCREW 5/16-18 X 1 SOCKET HEAD

SCREW 5/16-18 X 1 SOCKET HEAD

2

SCREW 1/4-28 X 1/4 SEMS HEX HEAD, SELF-TAPPING (GRADE 2)

SCREW 1/4-28 X 1/4 SEMS HEX HEAD, SELF-TAPPING (GRADE 2)

3

WASHER 5/16 X 11/16 X 1/16

WASHER 5/16 X 11/16 X 1/16

4

LOCKNUT 5/16-18 FLANGE

LOCKNUT 5/16-18 FLANGE

5

LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE

LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE

6

BEARING WITH 11282

BEARING WITH 11282

7

RETAINING RING

RETAINING RING

8

Регулировщик

Регулировщик

9

Болт

Болт

10

SWINGARM,ASSY,PNTD,W/BRGS

SWINGARM,ASSY,PNTD,W/BRGS

11

GUARD,BELT/CHN,ASSY,GLS BLK

GUARD,BELT/CHN,ASSY,GLS BLK

14

DEBRIS DEFLECTOR

DEBRIS DEFLECTOR

15

Крышка

Крышка

16

RETAINING RING

RETAINING RING

17

Гайка

Гайка
