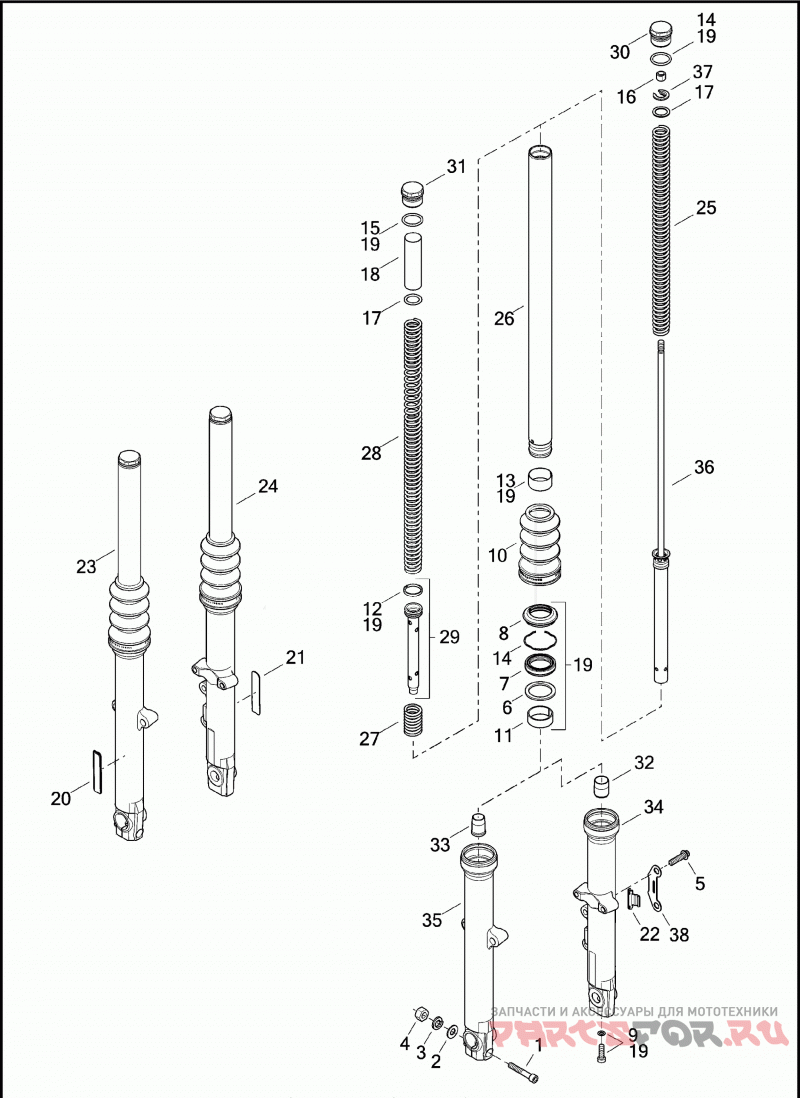

FORK, FRONT - XL883N, XL1200NS

Harley Davidson XL1200NS 1LP3 IRON 1200 (2018)

Harley Davidson
#oem кодцена
1
4029A
SCREW 3/8-16 X 2-1/4 SOCKET HEAD (BLACK)
2
6701
WASHER 3/8 X 13/16 X 1/16
3
7038
LOCKWASHER 3/8
4
7783
NUT 3/8-16 X 5/16 X 9/16 (GRADE 2)
5
44160-00
Болт
6
45377-87
SPACER SEAL
7
45378-87
Сальник
8
45401-87
Пыльник
9
45405-75A
SCREW M8 X 1.25 X 27 HEX SOCKET HEAD
10
45451-07
чехол
11
45461-87
GUIDE BUSHING
12
45462-87
PISTON RING (RIGHT)
13
45465-87
SLIDE BUSHING
14
45905-87
STOPPER RING
15
45984-87
Уплотнительное кольцо
16
46262-02
LOCKNUT (LEFT)
17
48738-07
Шайба
18
48791-09
SPRING COLLAR (RIGHT)
19
49378-09
FRONT FORK SERVICE KIT WITH 6, 7, 8, 9, 11, 12, 13, 14, 15
20
59481-00
REFLECTOR (AMBER) (RIGHT)
21
59482-00
REFLECTOR (AMBER) (LEFT)
22
70494-08
CLIP (ABS)
23
45400087
FORK SLIDER AND TUBE ASSEMBLY (RIGHT)
24
45400086
FORK SLIDER AND TUBE ASSEMBLY (LEFT)
25
45500300
Пружина
26
45500280
SLIDER TUBE WITH 45465-87 (LEFT)
26
45500281
SLIDER TUBE WITH 45465-87 (RIGHT)
27
45500299
SPRING (RIGHT)
28
45500301
SPRING (RIGHT)
29
45500302
DAMPER TUBE WITH 45462-87 (RIGHT)
30
45500284
CAP (LEFT)
31
45996-87
CAP (RIGHT)
32
45500286
OIL LOCK (LEFT)
33
45500303
OIL LOCK (RIGHT)
34
45500054
SLIDER ASSEMBLY (LEFT)
35
45500057
SLIDER ASSEMBLY (RIGHT)
36
45500304
CARTRIDGE (LEFT)
37
45500285
SEAT (LEFT)
38
69200460
BRACKET (ABS)
