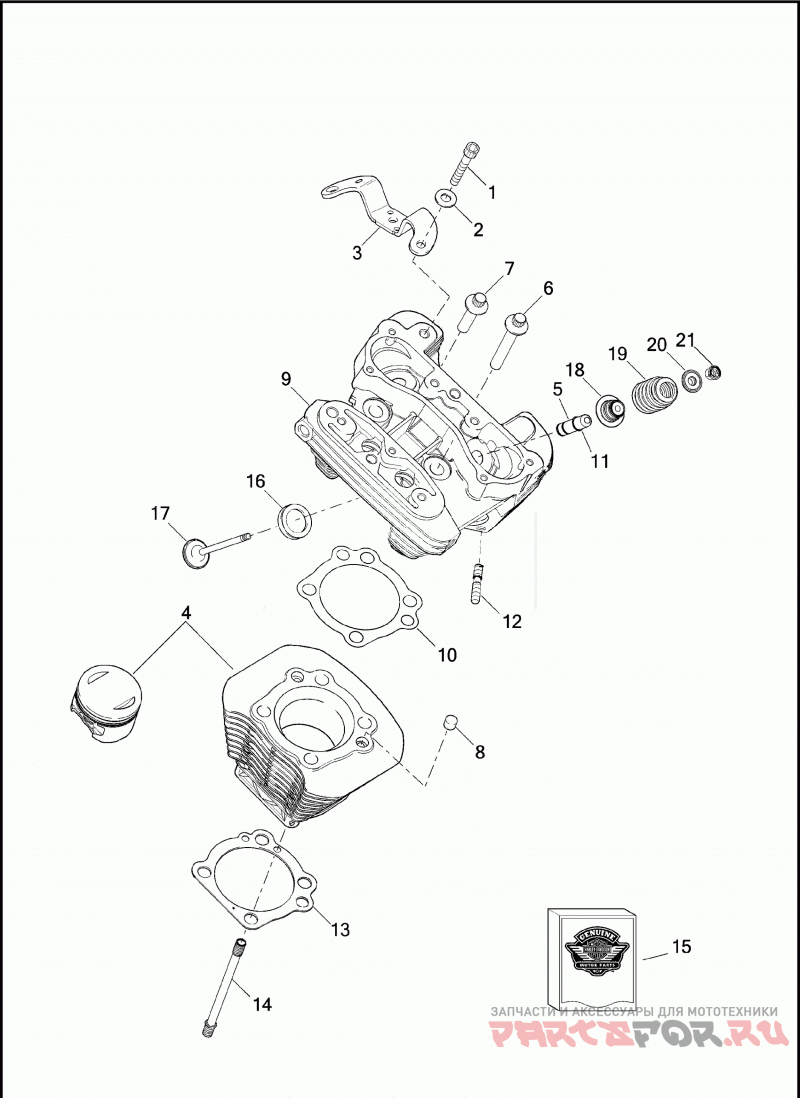

CYLINDERS, HEADS AND VALVES

Harley Davidson XL1200NS 1LP3 IRON 1200 (2018)

Harley Davidson
#oem кодцена
1
4266A
SCREW 3/8-16 X 7/8 BUTTON HEAD (GRADE 5)
4
16469-10
CYLINDER WITH PISTON (1200 CC) (BLACK WITHOUT FIN HIGHLIGHTS)
5
16465-06
VALVE GUIDE WITH 16699-06
6
16478-85A
Винт
7
16480-92A
Винт
8
16573-83A
Шпонка
9
17488-07
HEAD REAR CYLINDER (1200 CC) (BLACK WITHOUT FIN HIGHLIGHTS), WITH VALVE GUIDES AND SEATS
9
17485-07
HEAD FRONT CYLINDER (1200 CC) (BLACK WITHOUT FIN HIGHLIGHTS), WITH VALVE GUIDES AND SEATS
10
16770-84F
GASKET CYLINDER HEAD
11
16699-06
Стопорное кольцо
12
16715-83
STUD EXHAUST PORT
13
16789-04
GASKET CYLINDER BASE
14
16832-86C
STUD CYLINDER BASE
15
17027-08
GASKET KIT ENGINE OVERHAUL
15
17049-08
GASKET KIT TOP OVERHAUL
16
18011-86
INSERT EXHAUST VALVE SEAT
16
18020-07
INSERT INTAKE VALVE SEAT
17
18690-02
INTAKE VALVE 7MM
17
18691-02
EXHAUST VALVE 7MM
18
18094-02A
SEAL KIT VALVE (SET OF 4)
19
18245-02
Пружина клапана
20
18258-02
COLLAR VALVE SPRING - UPPER
21
18260-02
KEEPER VALVE COLLAR
