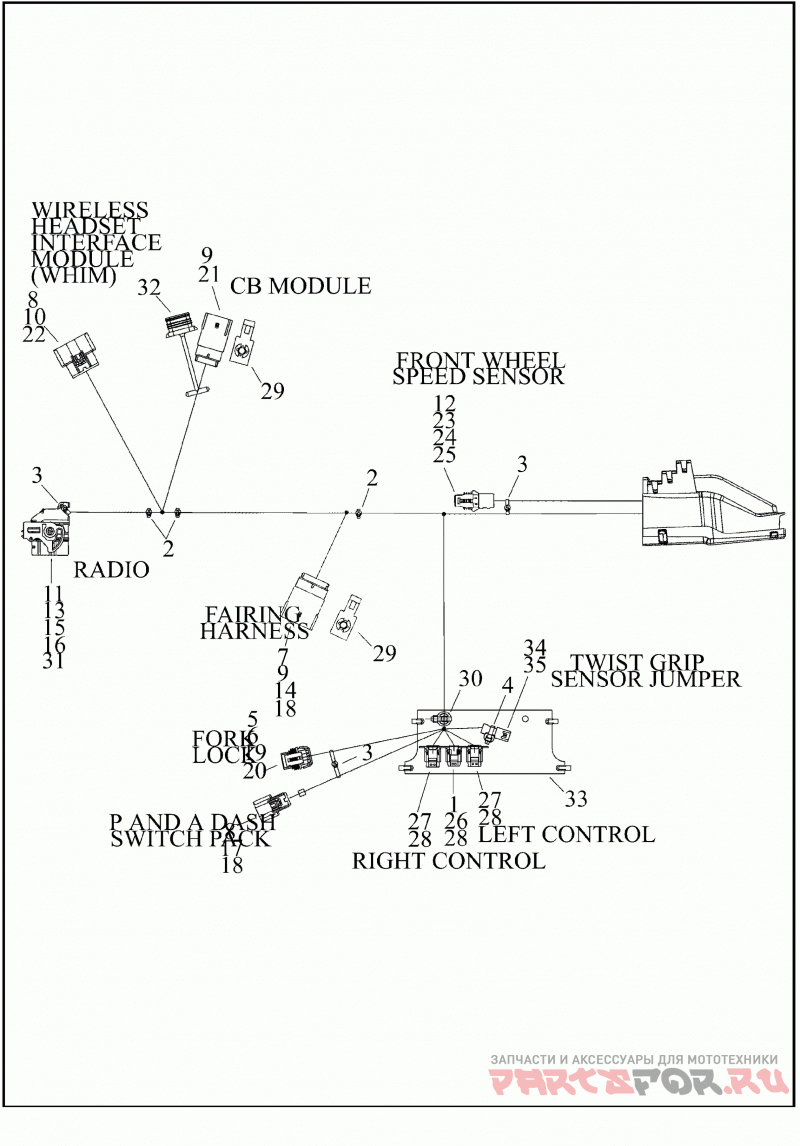

WIRING HARNESS, MAIN (2 OF 8)

Harley Davidson FLTRXSE 1TCL CVO ROAD GLIDE (2018)

Harley Davidson
#oem кодцена
1
5118
SEAL PIN
2
10006
CABLE STRAP
3
10065
CABLE STRAP
4
10177
CABLE STRAP,X-MAS TREE MOUNT
5
72066-06A
HOUSING,4-WAY SOCKET,FEM
6
72135-06
SECONDARY LOCK, 4-WAY, FEMALE, GRAY
7
72167-07BK
HOUSING,16-WAY,PIN/BLACK
8
72168-07
TERMINAL,SOCKET,#18-20 AWG
9
72169-07
TERMINAL,PIN,#16-20 AWG
10
73307-10
TERMINAL,SOCKET,#22AWG
11
72209-11
COVER,WIRE DRESS
12
72213-94
TERMINAL SCKT 16-20AWG
13
72222-11
TERMINAL(0.6MM)SCKT,#18-20AWG(PO)
14
72225-09
PIN TERMINAL,#14 AWG
15
72226-11
TERMINAL(1.5MM)SCKT,#14-16AWG
16
72256-11
SEAL PIN,0.6MM,PLUG
17
72414-07BK
HOUSING, 6-WAY SOCKET, BLACK
18
72473-07
SEAL PIN
19
72484-08
TERMINAL,SOCKET,#20AWG
20
72486-08
WIRE SEAL,#20AWG,GREEN
21
72488-07BK
HOUSING,12-WAY,PIN/BLACK
22
72491-07GY
HOUSING, 16-WAY SOCKET, GRAY
23
72606-08
HOUSING, 2-WAY SOCKET
24
72639-10
SECONDARY LOCK,2-WAY SCKT,CONDUIT
25
72610-08
SEAL, CABLE #18-20 AWG, WHITE
26
72905-11
HOUSING,2-WAY PIN
27
72907-11
HOUSING,4-WAY PIN
28
72909-11
TERMINAL,PIN,#20-22AWG
29
73213-07
RETAINER,X-MAS TREE CLIP
30
12500002
CABLE STRAP,XMAS,2-PC(PO)
31
69200193
HOUSING,48-WAY SOCKET
32
69200205
PLUG,WEATHER,12-WAY PIN
33
69200700
GUIDE,WIRE HARNESS,NACELLE
34
69201163
CONNECTOR,6-WAY PIN,BLACK
35
69201164
TERMINAL,PIN,#22AWG
