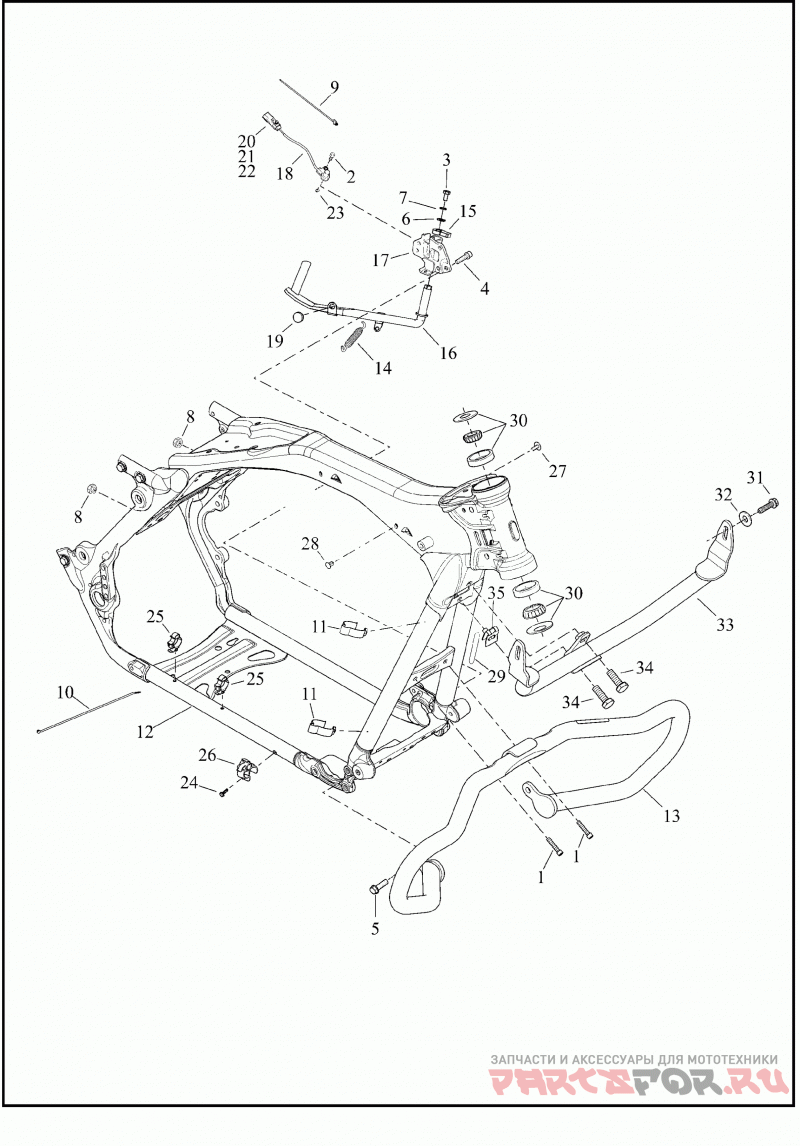

FRAME AND JIFFY STAND

Harley Davidson FLTRXSE 1TCL CVO ROAD GLIDE (2018)

Harley Davidson
#oem кодцена
1
882
SCREW,HEX SCKT,SEMS/LOCK
2
3594
SCREW,HEX SOCKET
3
3987
SCREW HEX CAP
4
4688
SCREW,HEX SCKT,SEMS,3/8-16X1-1/4
5
4924
SCREW,BTN HD/TORX
6
6702
WASHER,PLAIN,TYPE-A
7
7041
LOCKWASHER,REGULAR
8
7495
NUT,FLANGE,HEX
9
10177
CABLE STRAP,X-MAS TREE MOUNT
10
10039
CABLE STRAP
11
10264
CLIP,CLUTCH CABLE
12
47000088BHP
KIT-SERVICE,MAIN FRAME,GLS BLK
13
49000105A
KIT,ENGN/FRM GD,CHROME
13
49000114A
KIT,ENGN/FRM GD,BLACK
14
49725-07A
SPRING,JFYSTND
15
50015-74A
CATCH,JFYSTND
16
50075-07A
LEG,S-STAND,WELDMENT,CHRM
16
50000149
LEG,S-STND,WELDMENT,BLK
17
50000097
BRACKET,SIDESTAND
17
50000143
BRKT,S-STND,BLK
18
50126-08B
SENSOR,S-STND
19
50245-07
BUMPER,JFYSTND LEG
20
72169-07
TERMINAL,PIN,#16-20 AWG
21
72511-07BK
HOUSING, 3-WAY PIN, BLACK
22
73213-07
RETAINER,X-MAS TREE CLIP
23
90520-07
HOLE PLUG,M6 TAP HOLE,BLACK
24
10200546
SCREW,HEX,SERRATED FLANGE,10-24 X 5/8
25
10800025A
CLAMP,HOSE,CONDUIT,16MM,TREE MT
26
12200147A
CLIP,RETG,BRAKE,CLUTCH,O2 SENSOR
27
12600067
PLASTIC FASTENER
28
12600197
FASTENER,TREE,CLIP,PUSH-IN
29
14000827
CLEAR OVERLAY,VIN LABEL
30
45700009
BEARING KIT,STEERING HEAD
31
3787
SCREW HEX CAP
32
6703
WASHER,PLAIN,TYPE-A
33
47200354
BRKT,FR FAIR SPRT,ASSEMBLY,BLACK
34
2479
SCREW,HEX SCKT,SEMS/LOCK
35
8144
NUT CLIP,5/16
