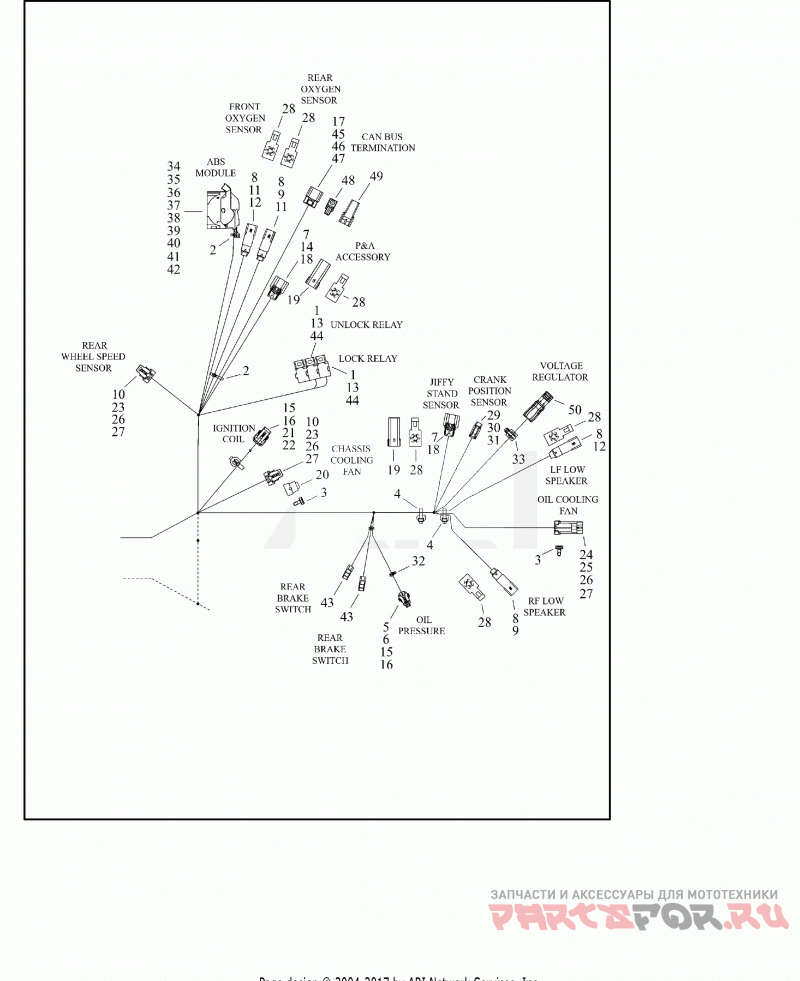

WIRING HARNESS, MAIN (7 OF 8)

Harley Davidson FLHXSE 1PXL CVO STREET GLIDE (2018)

Harley Davidson
#oem кодцена
1
9937
TERMINAL .25 FASTON 18-14GA
2
10065
CABLE STRAP
3
10147
CLIP,CONNECTOR
4
10177
CABLE STRAP,X-MAS TREE MOUNT
5
72065-06A
HOUSING, 3-WAY SOCKET
6
72127-06
SECONDARY LOCK,3-WAY.FEM/GRAY
7
72168-07
TERMINAL,SOCKET,#18-20 AWG
8
72169-07
TERMINAL,PIN,#16-20 AWG
9
72175-07BK
HOUSING,4-WAY,PIN/BLACK
10
72213-94
TERMINAL SCKT 16-20AWG
11
72343-10
TERMINAL,PIN,#16-20AWG/GOLD
12
72415-07GY
HOUSING,4-WAY,PIN/GREY
13
72427-00
TERMINAL,FAST-ON,.187,16-22 GA
14
72473-07
SEAL PIN
15
72484-08
TERMINAL,SOCKET,#20AWG
16
72486-08
WIRE SEAL,#20AWG,GREEN
17
72499-07
WIRE SEAL,#20-22 AWG,GREEN
18
72512-07BK
HOUSING,3-WAY,SCKT/BLACK
19
72519-09BK
DUSTCAP,3-WAY SOCKET
20
72533-06
DUST CAP,2-PIN CONN
21
72544-07
SECONDARY LOCK,3-WAY,FEM
22
72589-09
HOUSING, 3-WAY SOCKETS
23
72606-08
HOUSING, 2-WAY SOCKET
24
72607-08
HOUSING, 2-WAY PIN
25
72608-08
TERMINAL,PIN,16-20AWG,150 METRI-PACK
26
72609-08
SECONDARY LOCK, 2-WAY SCKT/BLACK
27
72610-08
SEAL, CABLE #18-20 AWG, WHITE
28
73213-07
RETAINER,X-MAS TREE CLIP
29
74112-98BK
HSG 2 WAY SOCKET BLACK
30
74152-98
SECONDARY LOCK,2WAY,SCKT
31
74191-98
SOCKET TERMINAL
32
10500014
SCREW,BTN HD,TORX SCKT
33
12500018
STRAP,TIE,XMAS,2 PIECE
34
69200183
CONNECTOR,26-WAY SOCKET
35
69200184
COVER,90DEG-WIRE DRESS,26-WAY SCKT
36
69200185
TERMINAL,SOCKET,#20 AWG,1.5(PO)
37
69200186
TERMINAL,SOCKET,#14-16 AWG,2.8(PO)
38
69200187
TERMINAL,SOCKET,#12 AWG,4.8(PO)
39
69200188
WIRE SEAL,#20AWG,1.5(PO)
40
69200189
WIRE SEAL,#14-16AWG,2.8(PO)
41
69200190
WIRE SEAL,#12AWG,4.8(PO)
42
69200191
SEAL PIN,PLUG,1.5(PO)
43
69200238
TERMINAL,.250F,INSULATED
44
69200600
MOUNTING,RELAY
45
69201396
TERMINAL,SOCKET,#20 AWG
46
69201400
HOUSING,2-WAY, SOCKET,BK,CPA
47
69201401
SECONDARY LOCK 2-WAY SOCKET
48
69201404
ANCHOR,CONNECTOR
49
69201405
RESISTOR PACK
50
69201423
DC LEAD ASSEMBLY
