  5. FLHTCUTG 1MAD TRI GLIDE ULTRA (2018)

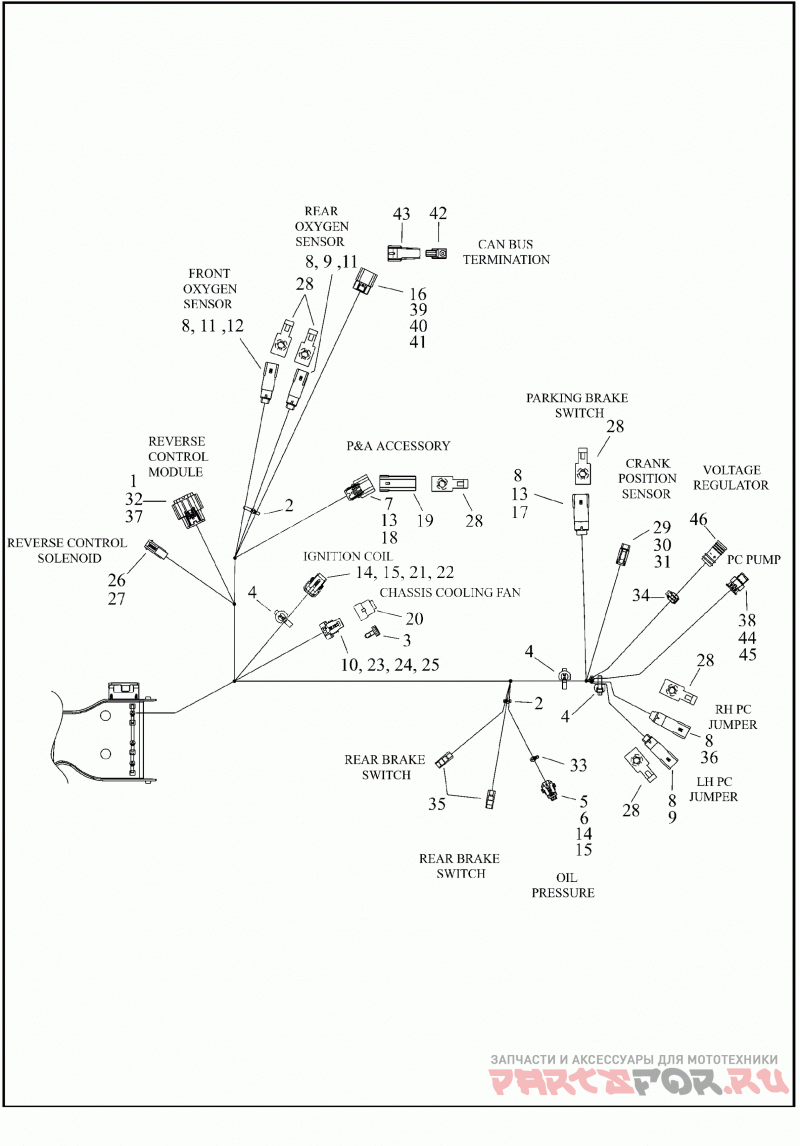

WIRING HARNESS, MAIN - FLHTCUTG (7 OF 8)

Harley Davidson FLHTCUTG 1MAD TRI GLIDE ULTRA (2018)

Harley Davidson
#oem кодцена
1
8339
SEAL, PIN
2
10065
CABLE STRAP
3
10147
CLIP,CONNECTOR
4
10177
CABLE STRAP,X-MAS TREE MOUNT
5
72065-06A
HOUSING, 3-WAY SOCKET
6
72127-06
SECONDARY LOCK,3-WAY.FEM/GRAY
7
72168-07
TERMINAL,SOCKET,#18-20 AWG
8
72169-07
TERMINAL,PIN,#16-20 AWG
9
72175-07BK
HOUSING,4-WAY,PIN/BLACK
10
72213-94
TERMINAL SCKT 16-20AWG
11
72343-10
TERMINAL,PIN,#16-20AWG/GOLD
12
72415-07GY
HOUSING,4-WAY,PIN/GREY
13
72473-07
SEAL PIN
14
72484-08
TERMINAL,SOCKET,#20AWG
15
72486-08
WIRE SEAL,#20AWG,GREEN
16
72499-07
WIRE SEAL,#20-22 AWG,GREEN
17
72511-07BK
HOUSING, 3-WAY PIN, BLACK
18
72512-07BK
HOUSING,3-WAY,SCKT/BLACK
19
72519-09BK
DUSTCAP,3-WAY SOCKET
20
72533-06
DUST CAP,2-PIN CONN
21
72544-07
SECONDARY LOCK,3-WAY,FEM
22
72589-09
HOUSING, 3-WAY SOCKETS
23
72606-08
HOUSING, 2-WAY SOCKET
24
72609-08
SECONDARY LOCK, 2-WAY SCKT/BLACK
25
72610-08
SEAL, CABLE #18-20 AWG, WHITE
26
73102-96BK
HSG PIN 2 PLC
27
73190-96
TERMINAL,PIN,#16-20AWG
28
73213-07
RETAINER,X-MAS TREE CLIP
29
74112-98BK
HSG 2 WAY SOCKET BLACK
30
74152-98
SECONDARY LOCK,2WAY,SCKT
31
74191-98
SOCKET TERMINAL
32
83944-09
TERMINAL, SOCKET, #18-20 AWG
33
12500014
CABLE STRAP
34
12500018
STRAP,TIE,XMAS,2 PIECE
35
69200238
TERMINAL,.250F,INSULATED
36
69200272
CONNECTOR,2-WAY PIN
37
69200461
HOUSING,8-WAY,SCKT
38
69201301
WIRE SEAL,#20-22AWG,GREEN
39
69201396
TERMINAL,SOCKET,#20 AWG
40
69201400
HOUSING,2-WAY, SOCKET,BK,CPA
41
69201401
SECONDARY LOCK 2-WAY SOCKET
42
69201404
ANCHOR,CONNECTOR
43
69201405
RESISTOR PACK
44
69201406
HOUSING,3-WAY SOCKET
45
69201407
TERMINAL,SOCKET,#20 AWG
46
69201423
DC LEAD ASSEMBLY
