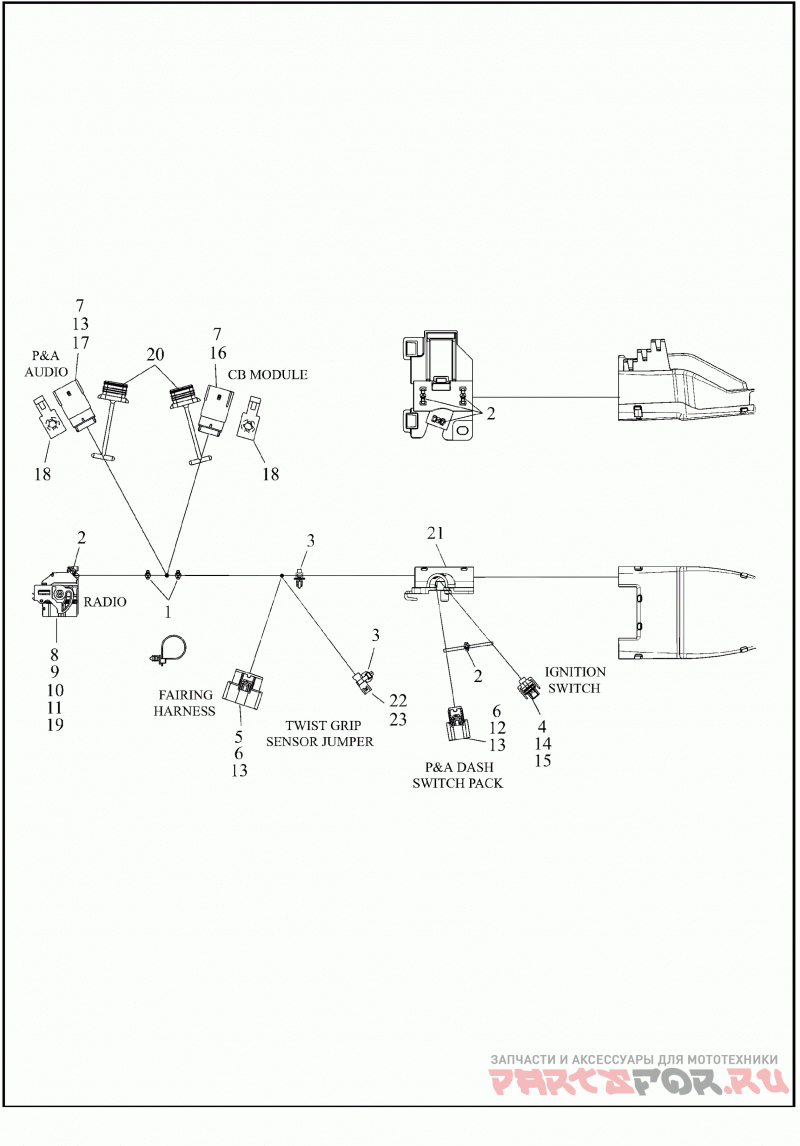

WIRING HARNESS, MAIN - FLHTCUTG (2 OF 8)

Harley Davidson FLHTCUTG 1MAD TRI GLIDE ULTRA (2018)

Harley Davidson
#oem кодцена
1
10006
CABLE STRAP
2
10065
CABLE STRAP
3
10177
CABLE STRAP,X-MAS TREE MOUNT
4
72062-06
HOUSING, 2-WAY FEMALE
5
72166-07BK
HOUSING, 16-WAY SOCKET, BLACK
6
72168-07
TERMINAL,SOCKET,#18-20 AWG
7
72169-07
TERMINAL,PIN,#16-20 AWG
8
72209-11
COVER,WIRE DRESS
9
72222-11
TERMINAL(0.6MM)SCKT,#18-20AWG(PO)
10
72226-11
TERMINAL(1.5MM)SCKT,#14-16AWG
11
72256-11
SEAL PIN,0.6MM,PLUG
12
72414-07BK
HOUSING, 6-WAY SOCKET, BLACK
13
72473-07
SEAL PIN
14
72484-08
TERMINAL,SOCKET,#20AWG
15
72486-08
WIRE SEAL,#20AWG,GREEN
16
72488-07BK
HOUSING,12-WAY,PIN/BLACK
17
72490-07GY
HOUSING,12-WAY,PIN/GREY
18
73213-07
RETAINER,X-MAS TREE CLIP
19
69200193
HOUSING,48-WAY SOCKET
20
69200205
PLUG,WEATHER,12-WAY PIN
21
69200215
CADDY,RH-STEER HD(PO)
22
69201163
CONNECTOR,6-WAY PIN,BLACK
23
69201164
TERMINAL,PIN,#22AWG
