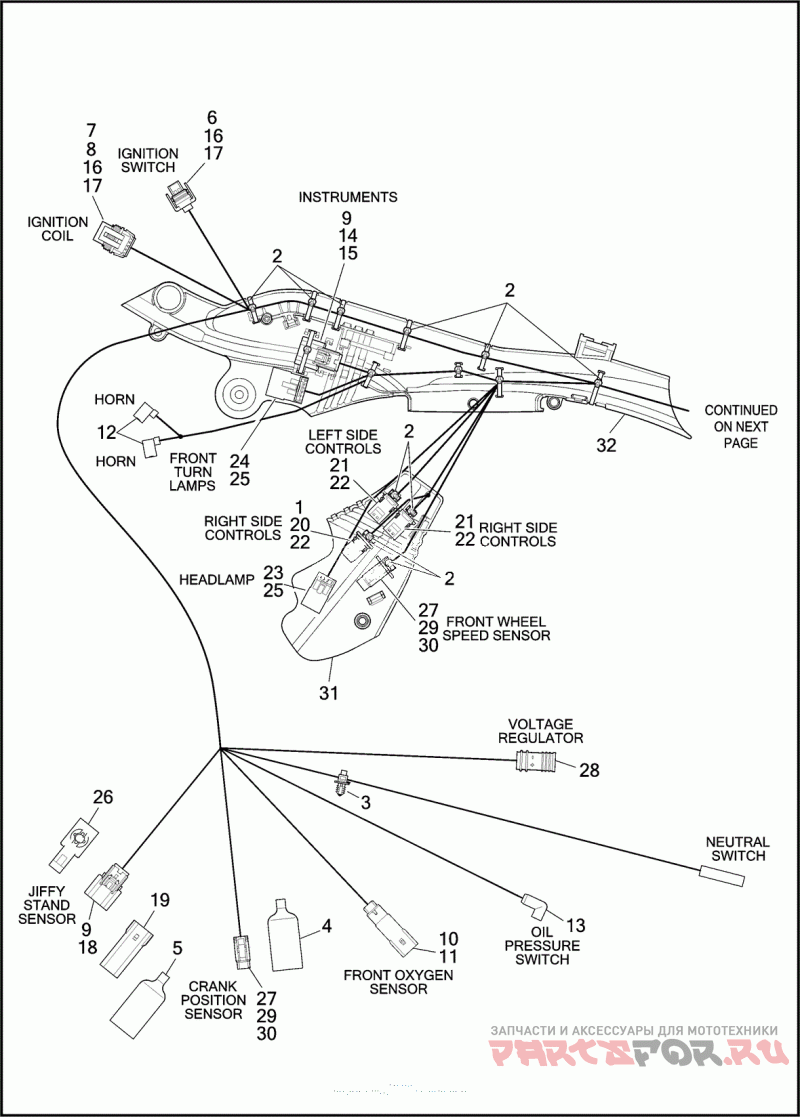

WIRING HARNESS, MAIN, ABS

Harley Davidson XL883L 4CR2 SUPERLOW (2017)

Harley Davidson
#oem кодцена
69200073B
Деталь MAIN WIRING HARNESS - ABS
1
5118
Деталь SEAL PIN
2
10006
Деталь CABLE STRAP
3
10177
Деталь CABLE STRAP
4
70598-99
Деталь BOOT TEMPERATURE SENSOR
5
70664-08
Деталь BOOT JIFFY STAND SENSOR
6
72062-06
Деталь HOUSING TWO-WAY SOCKET (GRAY)
7
72066-06A
Деталь HOUSING FOUR-WAY SOCKET (BLACK)
8
72135-06
Деталь SECONDARY LOCK FOUR-WAY SOCKET (GRAY)
9
72168-07
Деталь TERMINAL SOCKET, 18-20 AWG
10
72169-07
Деталь TERMINAL PIN, 16-20 AWG
11
72175-07BK
Деталь HOUSING FOUR-WAY PIN (BLACK)
12
72283-09
Деталь TERMINAL SOCKET, 14-16 AWG
13
72405-98BK
Деталь PUSH ON WIRE ASSEMBLY, RIGHT ANGLE MOLDED, WITH 60 IN WIRE LEAD (BLACK)
14
72414-07BK
Деталь HOUSING SIX-WAY SOCKET (BLACK)
15
72473-07
Деталь SEAL PIN
16
72484-08
Деталь TERMINAL SOCKET, 20 AWG
17
72486-08
Деталь WIRE SEAL 20 AWG (GREEN)
18
72512-07BK
Деталь HOUSING THREE-WAY SOCKET (BLACK)
19
72519-09BK
Деталь DUST CAP THREE-WAY SOCKET (BLACK)
20
72905-11
Деталь HOUSING TWO-WAY PIN (BLACK)
21
72907-11
Деталь HOUSING FOUR-WAY PIN (BLACK)
22
72909-11
Деталь TERMINAL PIN, 20-22 AWG
23
73104-96BK
Деталь HOUSING FOUR-WAY PIN (BLACK)
24
73106-96BK
Деталь HOUSING SIX-WAY PIN (BLACK)
25
73190-96
Деталь TERMINAL PIN, 16-20 AWG
26
73213-07
Деталь RETAINER ANCHORED
27
74112-98BK
Деталь HOUSING TWO-WAY SOCKET (BLACK)
28
74120-08
Деталь DC LEAD ASSEMBLY
29
74152-98
Деталь SECONDARY LOCK TWO-WAY SOCKET (ORANGE)
30
74191-98
Деталь TERMINAL SOCKET, 16-20 AWG
31
69200402A
Деталь WIRE HARNESS CADDY
32
69200403
Деталь WIRE HARNESS CADDY
