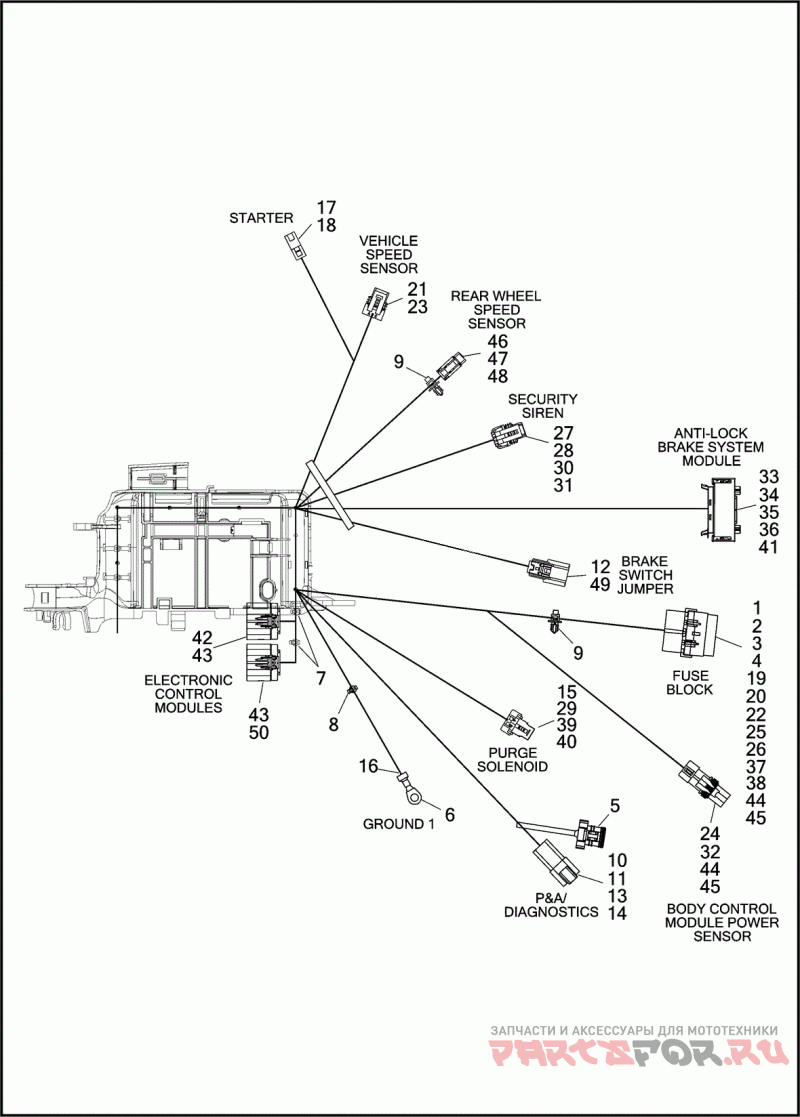

WIRING HARNESS, MAIN, KEYLESS, ABS (3 OF 4)

Harley Davidson XL1200C 1CT3 1200 CUSTOM (2017)

Harley Davidson
#oem кодцена
1
72314-01
Деталь FUSE MAIN, 40 A
2
72595-11
Деталь SEAL FUSE COVER
3
11100060
Деталь ADHESIVE LOCK
4
69200474
Деталь FUSE COVER WITH 11100060
4
69200479B
Деталь MAIN WIRING HARNESS - KEYLESS, ABS (CONTINUED)
5
6990
Деталь WEATHER PLUG SIX-WAY PIN (BLACK)
6
9838
Деталь TERMINAL RING 1/4 IN, 10-12 AWG
7
10006
Деталь CABLE STRAP
8
10065
Деталь CABLE STRAP
9
10177
Деталь CABLE STRAP
10
72106-94BK
Деталь HOUSING SIX-WAY PIN (BLACK) (REPLACES GRAY CONNECTOR)
11
72146-94
Деталь SECONDARY LOCK SIX-WAY PIN (GREEN)
12
72168-07
Деталь TERMINAL SOCKET, 18-20 AWG
13
72190-94
Деталь TERMINAL PIN, 16-18 AWG
14
72194-94
Деталь TERMINAL PIN, 20 AWG
15
72213-94
Деталь TERMINAL SOCKET, 16-20 AWG
16
72249-94
Деталь SHRINK TUBE
17
72291-94
Деталь TERMINAL SOCKET, 14-16 AWG
18
72295-94
Деталь CONNECTOR STARTER HOUSING
19
72298-95
Деталь WIRE SEAL 14-18 AWG (GREEN)
20
72308-97
Деталь TERMINAL SOCKET, 12-14 AWG
21
72312-04
Деталь HOUSING THREE-WAY SOCKET (BLACK)
22
72330-95
Деталь FUSE 15 A (BLUE)
23
72335-10
Деталь TERMINAL SOCKET, 20-22 AWG
24
72350-11
Деталь HOUSING ONE-WAY SOCKET (BLACK)
25
72356-95
Деталь TERMINAL SOCKET, 18-20 AWG
26
72462-00
Деталь FUSE 10 A (RED)
27
72484-08
Деталь TERMINAL SOCKET, 20 AWG
28
72486-08
Деталь WIRE SEAL 20 AWG (GREEN)
29
72518-01
Деталь HOUSING TWO-WAY SOCKET (RED)
30
72543-07BK
Деталь HOUSING THREE-WAY SOCKET (BLACK)
31
72544-07
Деталь SECONDARY LOCK THREE-WAY SOCKET (BLACK)
32
72575-11
Деталь SECONDARY LOCK ONE-WAY SOCKET (BLACK)
33
72577-12
Деталь SECONDARY LOCK (RED)
34
72578-12
Деталь HOUSING 18-WAY SOCKET (BLACK)
35
72579-12
Деталь TERMINAL SOCKET, 14-16 AWG
36
72580-12
Деталь TERMINAL SOCKET, 18-20 AWG
37
72582-11
Деталь FUSE BLOCK MAIN FUSE
38
72587-11
Деталь SECONDARY LOCK MAIN FUSE
39
72609-08
Деталь SECONDARY LOCK TWO-WAY SOCKET
40
72610-08
Деталь WIRE SEAL 18-20 AWG (WHITE)
41
72633-02
Деталь WIRE SEAL 14-16 AWG (WHITE)
42
72664-12A
Деталь HOUSING 18-WAY SOCKET (BLACK)
43
72666-12
Деталь TERMINAL SOCKET, 18-20 AWG
44
73304-04
Деталь TERMINAL SOCKET, 10 AWG
45
73305-04
Деталь WIRE SEAL 10 AWG (BLUE)
46
74112-98BK
Деталь HOUSING TWO-WAY SOCKET (BLACK)
47
74152-98
Деталь SECONDARY LOCK TWO-WAY SOCKET
48
74191-98
Деталь TERMINAL SOCKET, 16-20 AWG
49
69200271
Деталь HOUSING TWO-WAY SOCKET (BLACK)
50
69201131
Деталь HOUSING 18-WAY SOCKET (GRAY)
