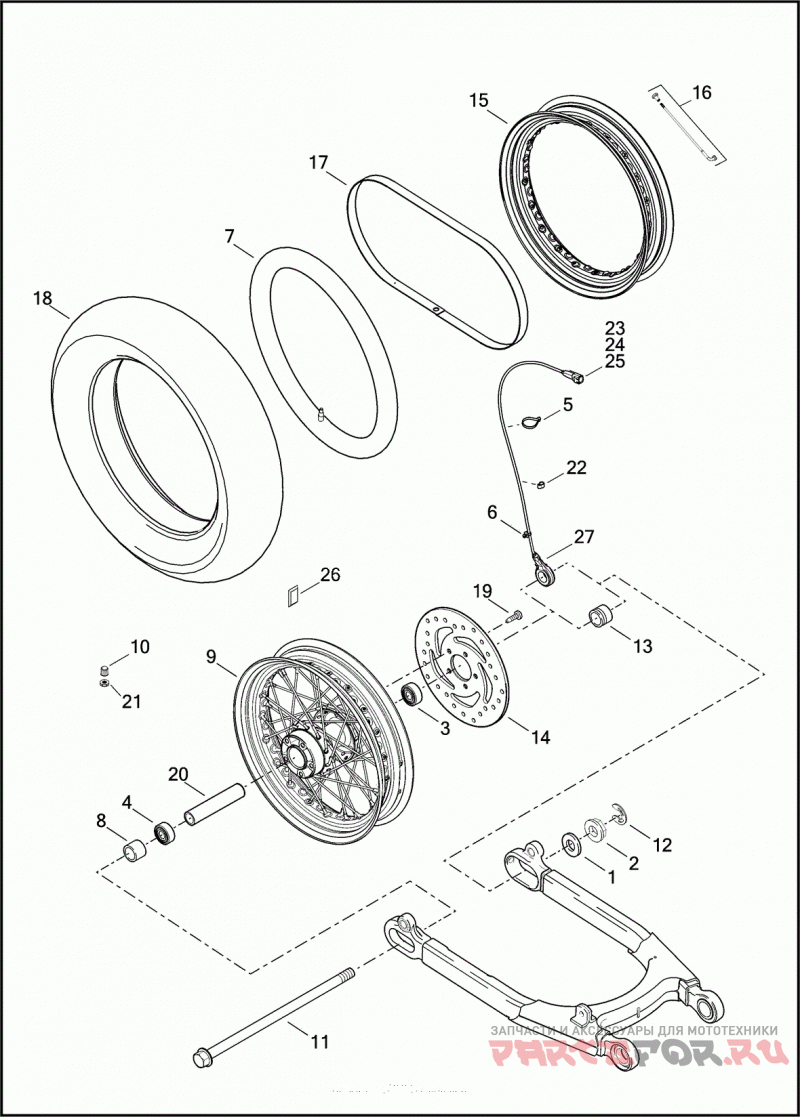

WHEELS, REAR, LACED - XL1200C, XL1200CB

Harley Davidson XL1200C 1CT3 1200 CUSTOM (2017)

Harley Davidson
#oem кодцена
1
6551
WASHER 1 X 1-5/8 X 1/8 HARDENED
2
8020
NUT M24 X 2.0 X 15
3
9252
BALL BEARING 25 MM (ABS)
3
9276A
BALL BEARING 25 MM (NON-ABS)
4
9276A
BALL BEARING 25 MM
5
10006
CABLE STRAP (ABS)
6
10177
CABLE STRAP
7
40572-11
INNER TUBE
8
40930-05
SPACER WHEEL BEARING, SPROCKET SIDE
9
41082-08A
WHEEL ASSEMBLY 16 IN (CHROME) WITHOUT BEARINGS AND SLEEVES
10
41123-79
VALVE CAP
11
41176-08
AXLE ASSEMBLY
12
41229-08
Стопорное кольцо
13
41242-08
SPACER (LEFT) (NON-ABS)
14
41833-08
BRAKE DISC
15
43085-97
RIM LACED WHEEL, 16 IN (CHROME)
16
43241-05
SPOKE AND NIPPLE KIT 16 IN RIM (CHROME) (SET OF 40)
17
40875-11
RIM STRIP
18
40878-11
TIRE
19
43567-92
SCREW 3/8-16 X 1 TORX PAN HD., W/LOCKPATCH
20
43905-08
SLEEVE BEARING SPACER
21
54321-85
NUT NO. 8-32 X 1/2 X 1/8 (BRASS)
22
70631-08
CONDUIT CLIP (ABS)
23
74102-98BK
HOUSING TWO-WAY PIN (BLACK)
24
74142-98
SECONDARY LOCK TWO-WAY PIN
25
74190-98
TERMINAL PIN, 16-20 AWG
26
95595-84B
WHEEL WEIGHT 5 G (SILVER)
27
41100023
SENSOR RING (ABS)
