Глушитель

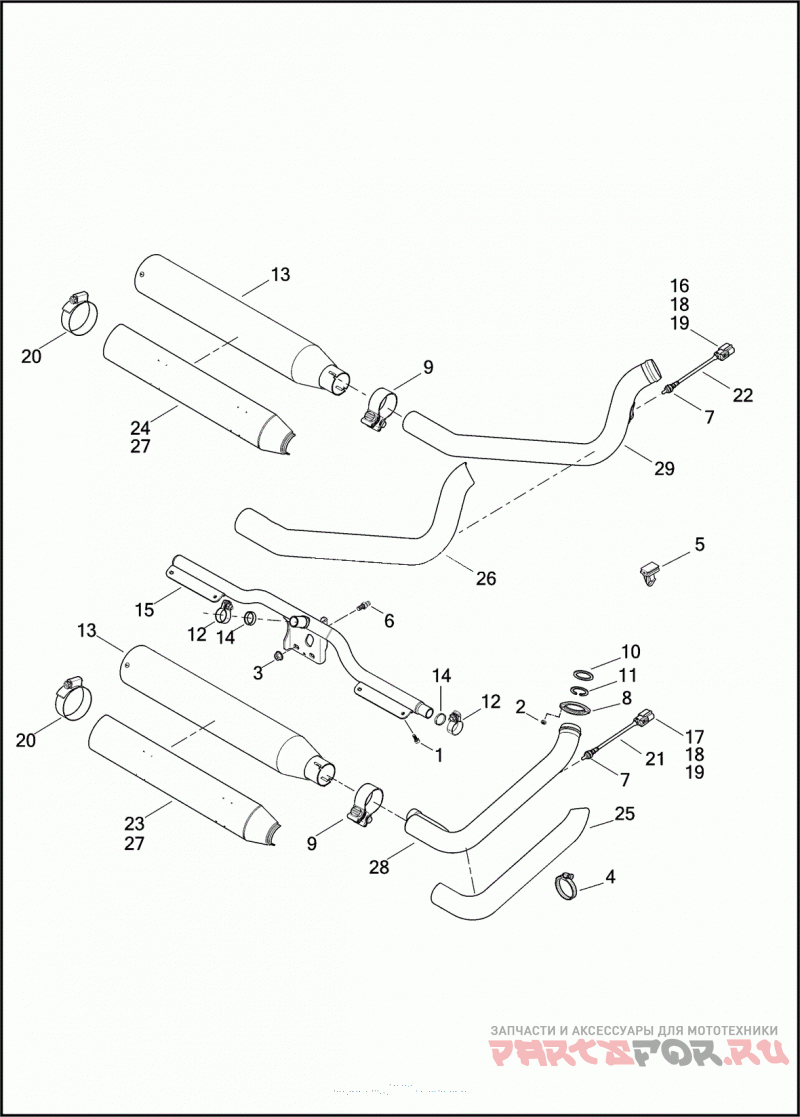

Harley Davidson FXSE 1TG9 CVO PRO STREET BREAKOUT (2017)

Harley Davidson
#oem кодцена
1
3391
SCREW 1/4-20 X 7/16 HEX FLANGE HD.
2
7593
NUT 5/16-24 FLANGE
3
7601
LOCKNUT 3/8-16 FLANGE
4
9955
CLAMP SHIELD
5
10147
CLIP CONNECTOR OXYGEN SENSOR
6
11860
STUD SPACER
7
11936
GASKET OXYGEN SENSOR
8
65184-02
FLANGE EXHAUST PIPE
9
65900012
CLAMP MUFFLER
10
65324-83B
GASKET EXHAUST PORT
11
65325-83A
RETAINING RING EXHAUST GASKET
12
65521-10
KIT-CLAMP INTERCONNECT, WITH 65830-10
13
64900485
MUFFLER ASSEMBLY FRONT/REAR (ASIA-PACIFIC, JAPAN)
13
64900404
MUFFLER ASSEMBLY FRONT/REAR (CALIFORNIA, CANADA, DOMESTIC)
13
64900405
MUFFLER ASSEMBLY FRONT/REAR (AUSTRALIA, HDI, ENGLAND)
14
65830-10
GASKET EXHAUST INTERCONNECT
15
66773-10
TUBE ASSEMBLY INTERCONNECT
16
72177-07BK
HOUSING FOUR-WAY, SOCKET (BLACK)
17
72344-10
TERMINAL SOCKET, 22 AWG (GOLD)
18
72444-07GY
HOUSING FOUR-WAY, SOCKET (GRAY)
19
73307-10
TERMINAL SOCKET, 22 AWG
20
10800010
CLAMP HOSE (BLACK)
21
32700005
SENSOR OXYGEN, FRONT, WITH 11936, 72344-10, 72444-07GY AND 73307-10
22
32700006
SENSOR OXYGEN, REAR, WITH 11936, 72177-07BK, 72344-10 AND 73307-10
23
65400230
SHIELD MUFFLER, FRONT (AUSTRALIA, CANADA, DOMESTIC, ENGLAND, HDI)
24
65400231
SHIELD MUFFLER, REAR (AUSTRALIA, CANADA, DOMESTIC, ENGLAND, HDI)
25
65400236
SHIELD FRONT EXHAUST (SMOKED SATIN)
26
65400237
SHIELD REAR EXHAUST (SMOKED SATIN)
27
65400288
SHIELD MUFFLER, FRONT/REAR (ASIA-PACIFIC, JAPAN)
28
65600031
EXHAUST PIPE ASSEMBLY FRONT
29
65600056
EXHAUST PIPE ASSEMBLY REAR
