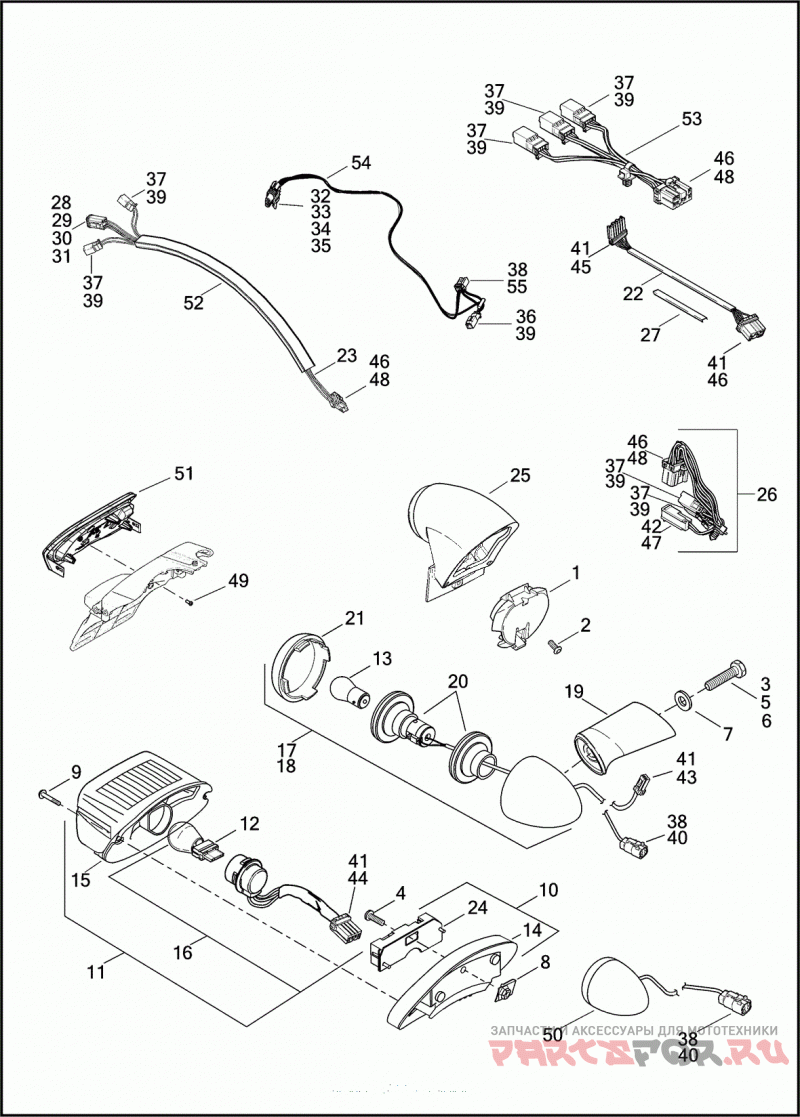

TAIL LAMP AND TURN SIGNALS, REAR

Harley Davidson FXDWG 103 1GPM DYNA WIDE GLIDE 103 (2017)

Harley Davidson
#oem кодцена
1
766
Заглушка
2
1001
SCREW 1/4-20 X 5/8 TORX BUTTON HD., SELF-TAPPING (GRADE 8)
5
4068A
BOLT 5/16-18 X 2-1/2 HEX HD. (GRADE 5)
6
4116
SCREW 5/16-18 X 3-5/8 HEX HD.
7
6016
WASHER 11/32 X 11/16 X 1/16
13
68168-89A
BULB REAR TURN SIGNAL (DOMESTIC, CANADA)
13
68163-84
BULB (HDI)
17
68461-09
TURN SIGNAL ASSEMBLY REAR (DOMESTIC, FXDWG-103 CANADA)
18
68467-09
TURN SIGNAL ASSEMBLY REAR (AUSTRALIA, ENGLAND, HDI, JAPAN)
19
68480-02
SUPPORT (AUSTRALIA, ENGLAND, HDI, JAPAN)
19
69438-06
Суппорт
21
68559-07
LENS (RED) (DOMESTIC, CANADA)
21
68755-07
LENS (AUSTRALIA, ENGLAND, HDI, JAPAN)
23
68785-09A
HARNESS ASSEMBLY WITH ADHESIVE FENDER CONDUIT (AUSTRALIA, CANADA, ENGLAND, HDI, JAPAN)
25
69598-09A
TAIL LAMP ASSEMBLY WITH GASKET (AUSTRALIA, ENGLAND, HDI, JAPAN AND CANADA)
26
70027-12
JUMPER
28
72114-94BK
HOUSING FOUR-WAY SOCKET (BLACK)
29
72154-94
SECONDARY LOCK FOUR-WAY SOCKET
30
72191-94
TERMINAL SOCKET 16-18 AWG
31
72195-94
PLUG SEAL PIN
37
72904-01BK
HOUSING FOUR-WAY PIN (BLACK)
38
72914-01BK
HOUSING SOCKET, FOUR-WAY (BLACK)
39
72990-01
TERMINAL PIN, 18-22 AWG
40
72991-01
TERMINAL SOCKET, 18-22 AWG
41
73191-96
TERMINAL SOCKET, 16-20 AWG (AS REQUIRED)
42
73102-96BK
HOUSING TWO-WAY PIN
46
73158-96BK
HOUSING EIGHT-WAY SOCKET
47
73190-96
TERMINAL PIN, 16-30 AWG
48
73191-96
TERMINAL SOCKET, 16-20 AWG
52
69200018
CONDUIT SELF-ADHESIVE, BULK 50 FOOT LENGTH
