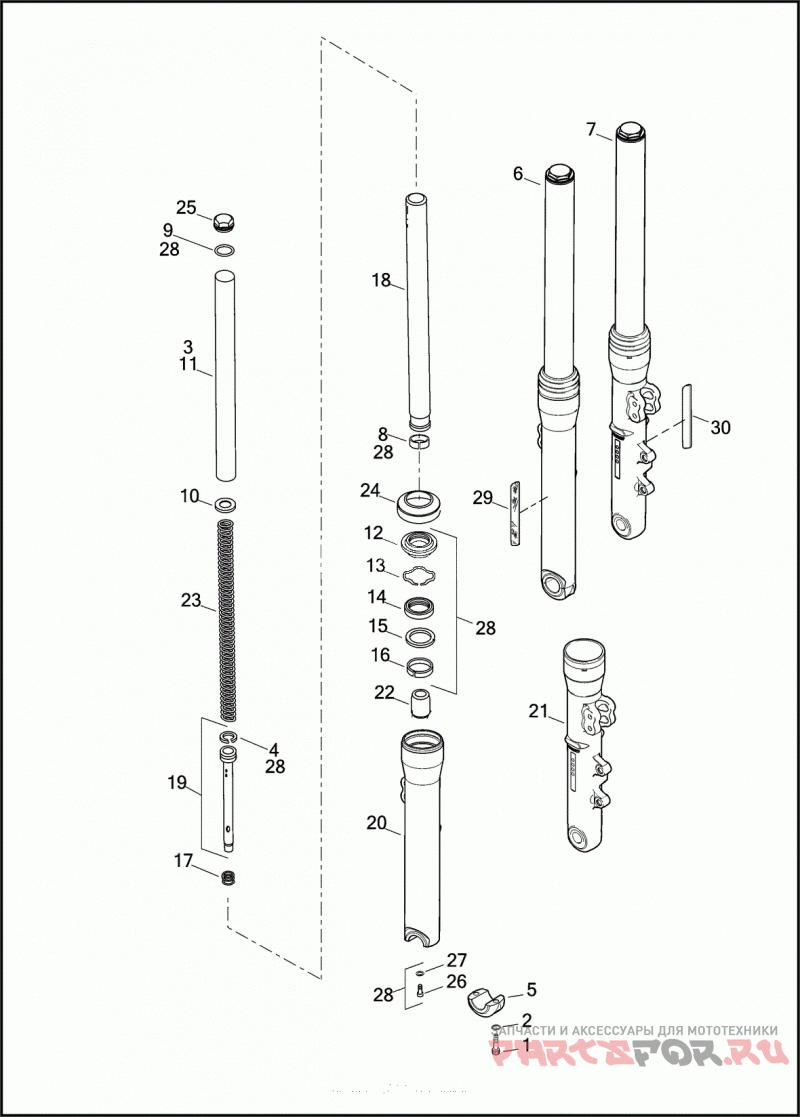

FORK, FRONT - ALL MODELS EXCEPT FXDLS

Harley Davidson FXDWG 103 1GPM DYNA WIDE GLIDE 103 (2017)

Harley Davidson
#oem кодцена
1
4042
SCREW M8 X 1.25 X 35 HEX BUTTON HD.
2
7062
LOCKWASHER M8.4 X 13 X 1.2
3
10475
COLLAR SPRING
4
11689
Кольцо поршневое
5
45322-06
HOLDER FORK AXLE (RIGHT) (POLISHED)
6
48803-10
FORK ASSEMBLY (RIGHT)
7
48802-10A
FORK ASSEMBLY (LEFT)
8
46080-01
Втулка
9
46508-01
Уплотнительное кольцо
10
46509-01
WASHER 30 X 43 X 2.3
12
46512-01A
Пыльник
13
46513-01
RING STOPPER
14
46514-01A
Сальник
15
46515-01
SPACER SEAL
16
46516-01
BUSHING GUIDE
17
46517-01
SPRING REBOUND
18
48862-10
FORK PIPE WITH 46080-01
19
46618-06
BOTTOM PIPE WITH 11689
20
46607-06A
SLIDER FORK - (RIGHT)
21
46619-06B
SLIDER FORK (LEFT)
22
46609-06
OIL LOCK PIECE (LEFT)
23
46620-06
Пружина
24
46611-06
COVER CASE
25
46612-06
BOLT FRONT FORK
26
46614-06
BOLT M14 X 1.25 X 30 SOCKET HD.
27
46615-06
CU PACKING
28
49379-09
FORK REBUILD KIT
29
59481-00
REFLECTOR AMBER (RIGHT)
30
59482-00
REFLECTOR AMBER (LEFT)
