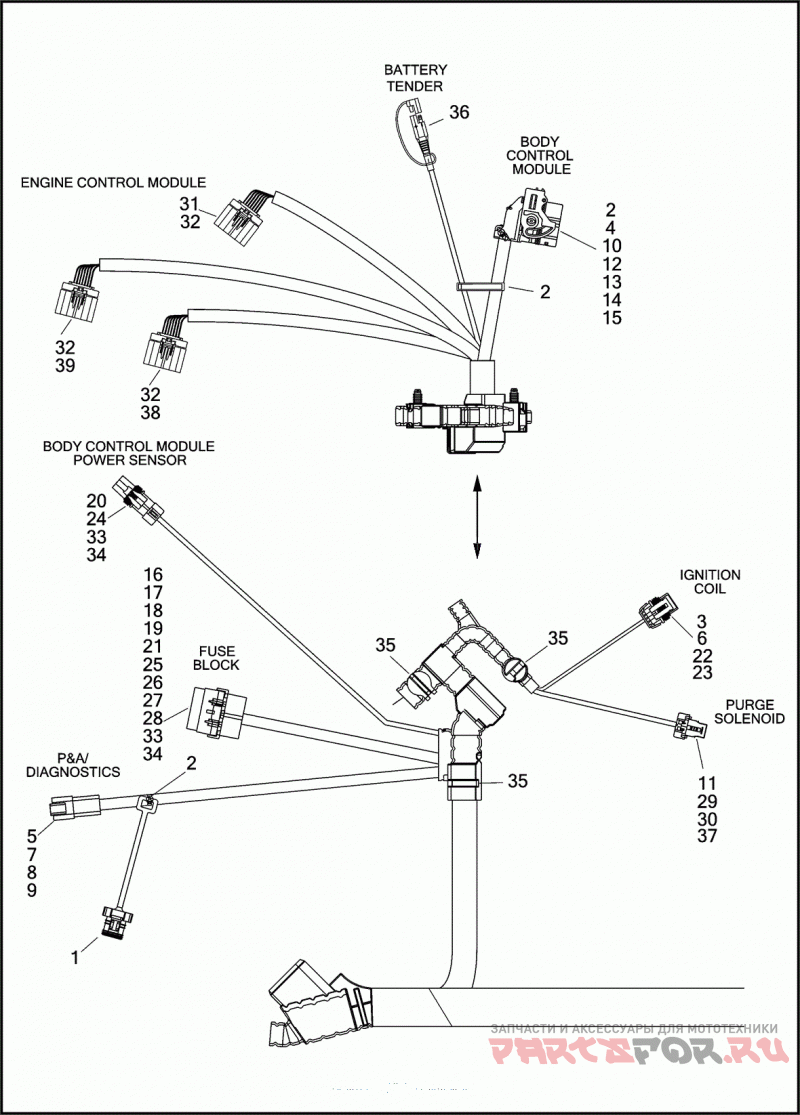

WIRING HARNESS, MAIN, ABS - FXDLS (4 OF 5)

Harley Davidson FXDLS 1GS8 DYNA LOW RIDER S (2017)

Harley Davidson
#oem кодцена
69201569A
WIRING HARNESS, MAIN (CONTINUED)
1
6990
PLUG WEATHER, SIX-WAY PIN
2
10065
CABLE STRAP
3
72066-06A
HOUSING FOUR-WAY SOCKET (BLACK)
4
72081-11
HOUSING 48-WAY SOCKET
5
72106-94BK
HOUSING SIX-WAY PIN (BLACK)
6
72135-06
SECONDARY LOCK FOUR-WAY SOCKET (GRAY)
7
72146-94
PIN LOCK SEC 6
8
72190-94
TERMINAL PIN, 16-18 AWG
9
72194-94
TERMINAL PIN, 20 AWG
10
72209-11
COVER WIRE
11
72213-94
TERMINAL SOCKET, 16-20 AWG
12
72222-11
TERMINAL SOCKET 18-20 AWG
13
72226-11
TERMINAL SOCKET 14-16 AWG
14
72227-11
TERMINAL SOCKET, 18-20 AWG
15
72256-11
SEAL PIN .6MM, PLUG
16
72298-95
WIRE SEAL 14-18 AWG (GREEN)
17
72308-97
TERMINAL SOCKET, 12-14 AWG
18
72314-01
MAIN FUSE 40 AMP, NOTE: FUSE IS SOLD SEPARATELY AND IS NOT PART OF THE MAIN WIRING HARNESS.
19
72330-95
FUSE 15 AMP (BLUE)
20
72350-11
HOUSING ONE-WAY
21
72356-95
TERMINAL SOCKET, 18-20 AWG
22
72484-08
TERMINAL SOCKET, 20 AWG
23
72486-08
WIRE SEAL 20 AWG (GREEN)
24
72575-11
SECONDARY LOCK
25
72582-11
FUSE BLOCK MAIN FUSE
26
72586-11
COVER FUSEBLOCK, NOTE: COVER IS SOLD SEPARATELY AND IS NOT PART OF THE MAIN WIRING HARNESS.
27
72587-11
SECONDARY LOCK FUSE BLOCK, MAIN FUSE
28
72595-11
SEAL FUSE BLOCK, MAIN FUSE, NOTE: SEAL IS SOLD SEPARATELY AND IS NOT PART OF THE MAIN WIRING HARNESS.
29
72609-08
SECONDARY LOCK TWO-WAY SOCKET (BLACK)
30
72610-08
SEAL CABLE, 18-20 AWG (WHITE)
31
72664-12A
HOUSING 18-WAY SOCKET, KEY A
32
72666-12
TERMINAL SOCKET, 18-20 AWG (SILVER)
33
73304-04
TERMINAL .31 SOCKET, 10 AWG
34
73305-04
SEAL WIRE 10 AWG (BLUE)
35
12500003
CABLE STRAP
36
69200212
HARNESS BATTERY TENDER
37
69200245
HOUSING TWO-WAY SOCKET (BLACK)
38
69200267A
HOUSING 18-WAY SOCKET, KEY B
39
69200268A
HOUSING 18-WAY SOCKET, KEY C
