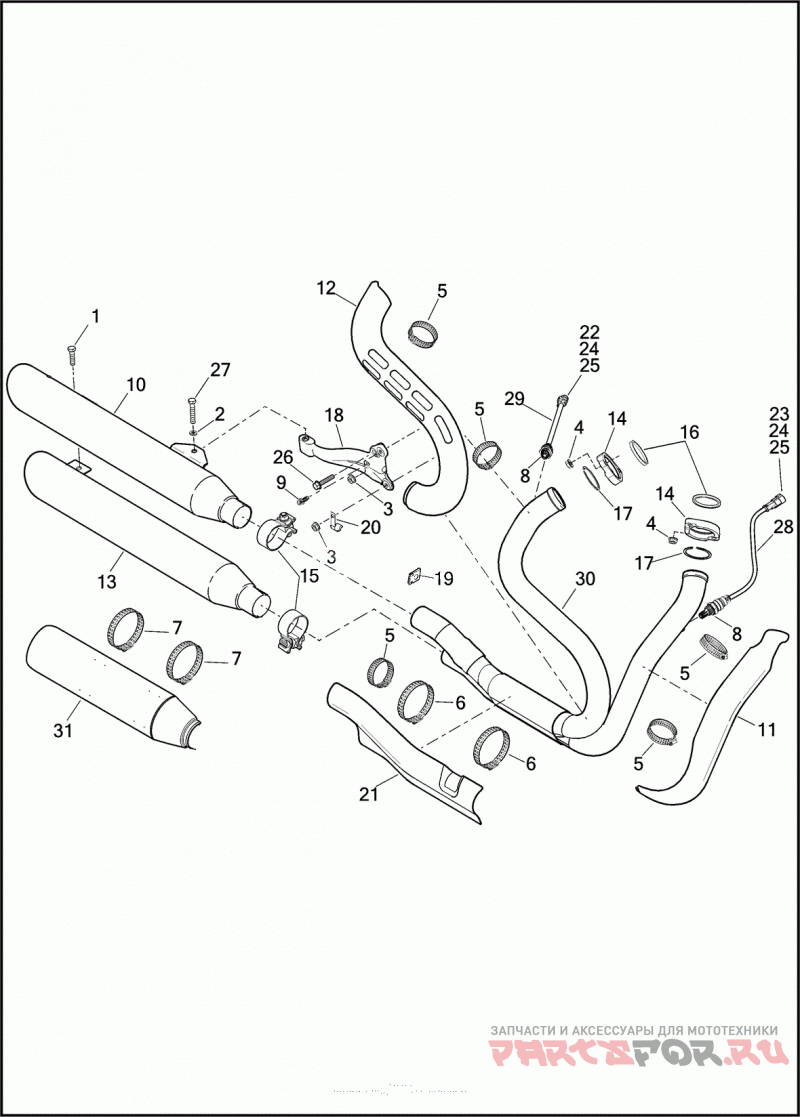

EXHAUST SYSTEM - FXDF, FXDLS AND FXDWG

Harley Davidson FXDLS 1GS8 DYNA LOW RIDER S (2017)

Harley Davidson
#oem кодцена
1
4269
SCREW 5/16-18 X 3/4, FLANGE HD.
2
4269
SCREW 5/16-18 X 3/4, FLANGE HD.
3
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
4
7593
NUT 5/16-24 FLANGE
5
9955
Зажим
6
9956
Зажим
7
10074
Зажим
8
11936
GASKET OXYGEN SENSOR
10
64900512
MUFFLER REAR (BLACK) (DOMESTIC, CALIFORNIA, HDI, AUSTRALIA, CANADA, ENGLAND)
10
64900513
MUFFLER REAR (BLACK) (JAPAN)
11
65400298
SHIELD FRONT EXHAUST (BLACK)
12
65400299
SHIELD REAR EXHAUST (BLACK)
13
64900510
MUFFLER FRONT (BLACK) (DOMESTIC, CALIFORNIA, HDI, AUSTRALIA, CANADA, ENGLAND)
13
64900511
MUFFLER FRONT (BLACK) (JAPAN)
14
65184-02
FLANGE PIPE
15
65900012
CLAMP MUFFLER
16
65324-83B
GASKET EXHAUST
17
65325-83A
RETAINING RING EXHAUST GASKET
18
65696-08B
BRACKET MUFFLER
22
72177-07BK
HOUSING FOUR-WAY SOCKET (BLACK)
23
72344-10
TERMINAL SOCKET, 22 AWG (GOLD)
24
72444-07GY
HOUSING FOUR-WAY SOCKET (GRAY)
25
73307-10
TERMINAL SOCKET, 22 AWG
26
10200016
SCREW 5/16-18 X 2 HEX FLANGE HD.
27
4716W
SCREW 3/8-16 X 1-1/4 HEX HD. (GRADE 5)
28
32700005
OXYGEN SENSOR FRONT, WITH 11936, 72344-10, 72444-07GY AND 73307-10
29
32700006
OXYGEN SENSOR REAR, WITH 11936, 72177-07BK, 72344-10 AND 73307-10
30
65600006B
EXHAUST PIPE ASSEMBLY
