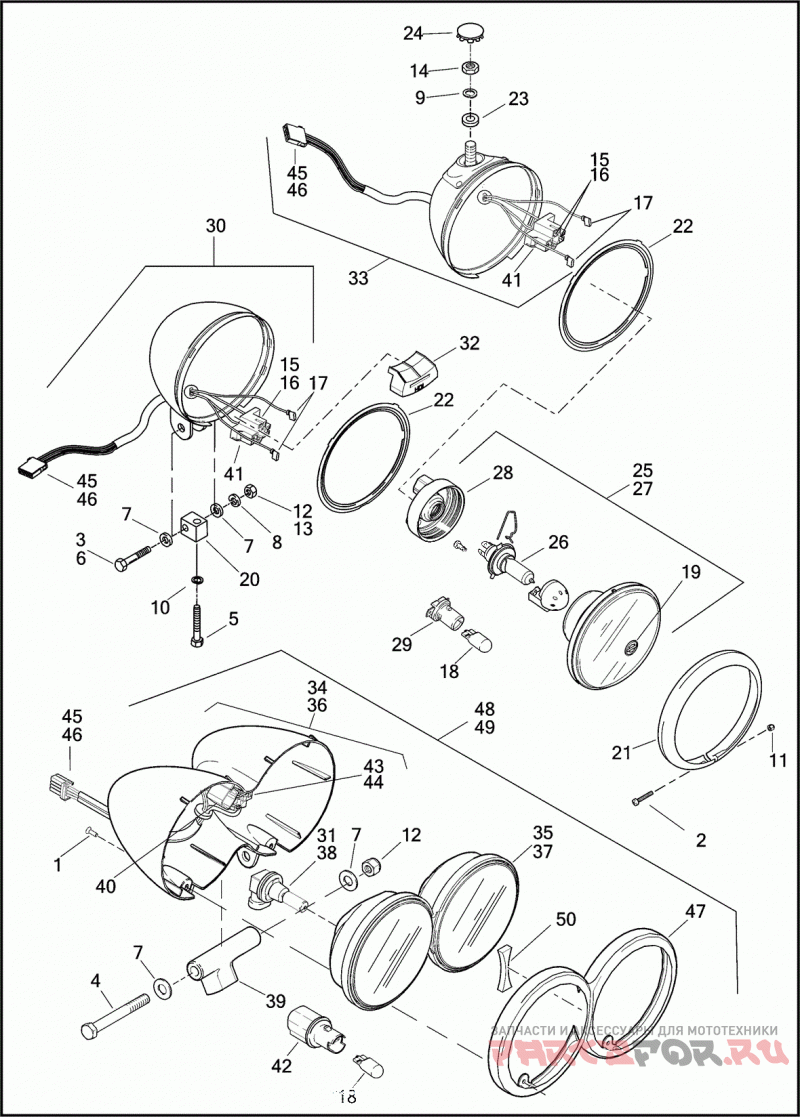

Фара

Harley Davidson FXDLS 1GS8 DYNA LOW RIDER S (2017)

Harley Davidson
#oem кодцена
2
3514
SCREW NO. 8-32 X 1 FILLISTER HD. (GRADE 5)
5
4722
BOLT 3/8-16 X 2-1/4 HEX HD. (GRADE 5)
6
4724
BOLT 3/8-24 X 1-1/2 HEX HD. (GRADE 5)
7
6701
WASHER 3/8 X 13/16 X 1/16
8
7038
LOCKWASHER 3/8
10
7130W
LOCKWASHER 3/8 INTERNAL TOOTH
11
7606
LOCKNUT NO. 8-32 X 1/4 X 1/4 HEX (CHROME)
13
7800W
NUT 3/8-24 X 5/16 X 9/16 (GRADE 2)
15
9847
CONNECTOR SPADE SOCKET (RIGHT)
16
9848
CONNECTOR SPADE SOCKET (LEFT)
17
9898
TERMINAL FLAG (HDI)
18
53436-97
BULB WEDGE (HDI)
19
67667-05
MEDALLION
20
67741-06
BLOCK MOUNT
21
67700116
TRIM RING (BLACK)
22
67883-04A
ADAPTOR RING
25
68297-05A
LAMP ASSEMBLY 5-3/4 IN, WITH 67667-05 AND 68329-03 (DOMESTIC, CALIFORNIA, CANADA)
26
68329-03
BULB
27
68335-05A
LAMP ASSEMBLY 5-3/4 IN, LEFT, WITH 53436-97, 67667-05, 68329-03, 68380-05 AND 68653-05 (AUSTRALIA, ENGLAND, JAPAN, INDIA)
27
68341-05A
LAMP ASSEMBLY 5-3/4 IN, RIGHT, WITH 53436-97, 67667-05, 68329-03, 68380-05 AND 68653-05(HDI)
28
68380-05
BOOT CONNECTOR
29
68653-05
SOCKET BULB (ASIA-PACIFIC, AUSTRALIA, CANADA, ENGLAND, HDI, JAPAN, BRAZIL)
30
69356-06A
HEADLAMP SHELL ASSEMBLY (BLACK)
41
72056-92
HOUSING THREE-WAY SOCKET
45
73154-96BK
HOUSING FOUR-WAY SOCKET
46
73191-96
TERMINAL SOCKET, 16-20 AWG (DOMESTIC)
