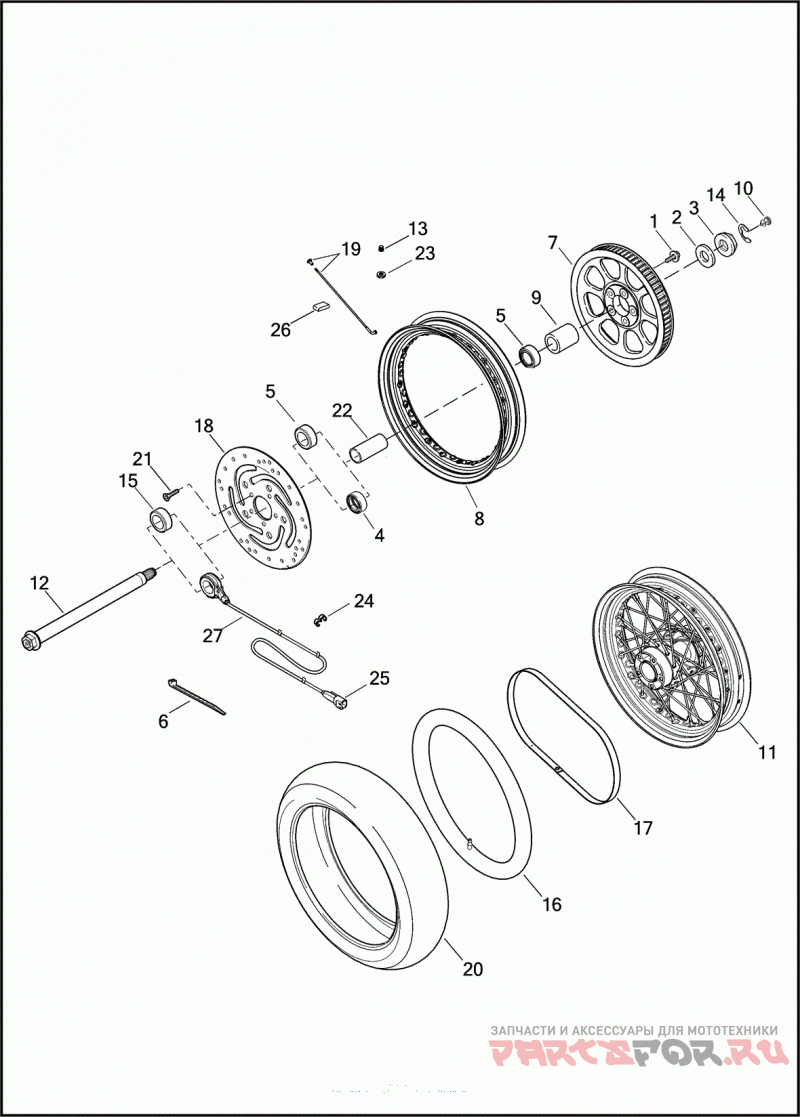

WHEEL, REAR, LACED

Harley Davidson FXDL 103 1GNM LOW RIDER 103 (2017)

Harley Davidson
#oem кодцена
1
3109
SCREW 7/16-14 X 2-5/8 HEX CAP W/WASHER, LOCK PATCH
2
6551
WASHER 1 X 1-5/8 X 1/8 HARDENED
3
8020
NUT M24 X 2.0 X 15
4
9252
BALL BEARING WITH ENCODER (ABS)
5
9276A
BEARING (ABS)
6
10065
CABLE STRAP (ABS)
7
40114-07
SPROCKET 66T (BLACK)
7
40634-07
SPROCKET 64 TEETH (BLACK) (JAPAN)
8
40863-06
RIM WHEEL 17 IN STEEL
9
40947-08A
SPACER AXLE - LEFT
10
40964-08
PLUG REAR AXLE NUT (AUSTRALIA, ENGLAND, HDI, INDIA)
11
40979-08A
WHEEL ASSEMBLY STEEL 17 IN, WITHOUT BEARINGS AND SLEEVES
13
41123-79
CAP VALVE
14
41229-08
RING AXLE RETAINING
16
41314-10
INNER TUBE TIRE 17 IN
17
41319-10
RIM STRIP 17 IN
18
41797-00
BRAKE DISC
19
43052-05A
SPOKE AND NIPPLE KIT
20
43250-07B
TIRE 17 IN
21
43567-92
SCREW 3/8-16 X 1 TORX PAN HD., W/LOCKPATCH
22
43905-08
SLEEVE SPACER BEARING
23
54321-85
NUT NO. 8-32 X 1/2 X 1/8 (BRASS)
24
70504-81
Зажим
25
74190-98
TERMINAL PIN 16-20 AWG (ABS)
26
95595-84B
WEIGHT 5 G (SILVER)
27
41100001
SENSOR WHEEL SPEED, WITH 71490-98 (ABS)
