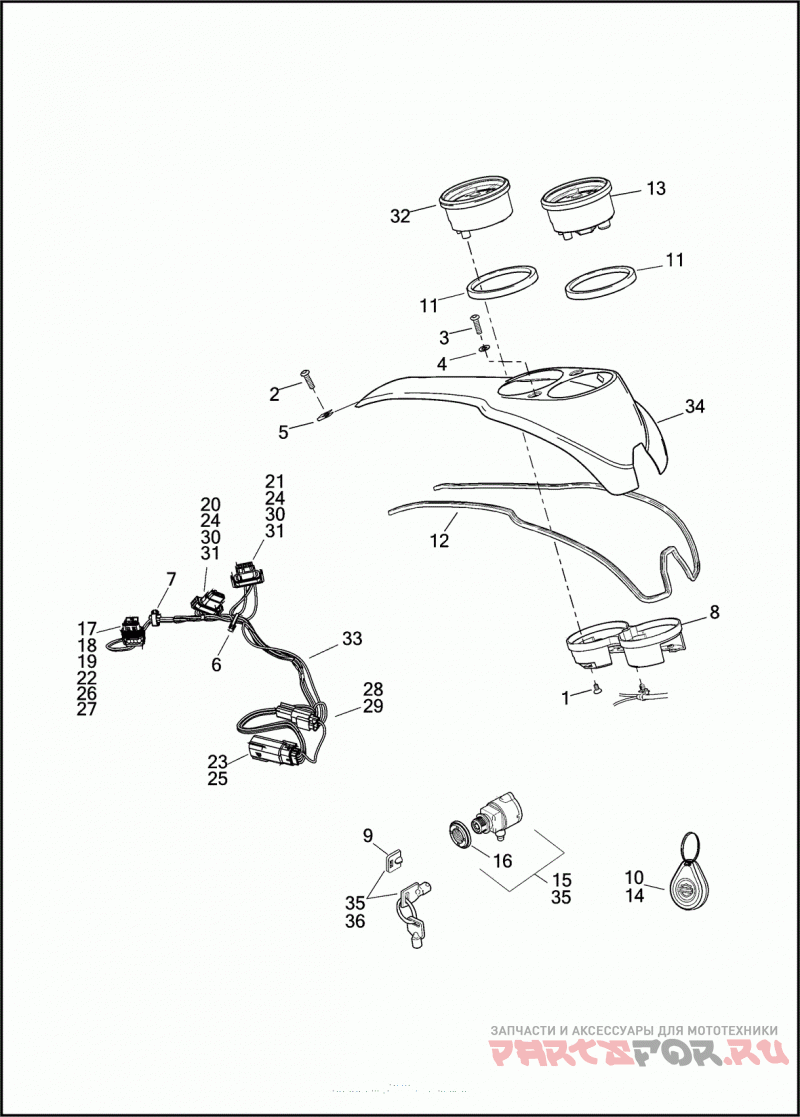

INSTRUMENTS - FXDL AND FXDLS

Harley Davidson FXDL 103 1GNM LOW RIDER 103 (2017)

Harley Davidson
#oem кодцена
1
2361
Деталь SCREW NO. 8-32 X 3/8 SOCKET COUNTERSINK HD., W/LOCKPATCH
2
3540
Деталь SCREW 5/16-18 X 5/8 SOCKET BUTTON HD.
3
4654
Деталь SCREW BUTTON HEX SOCKET
4
6798
Деталь WASHER 5/16 X 1/2 X 1/32
5
8173
Деталь SPEED NUT
6
10065
Деталь CABLE STRAP
7
10177
Деталь CABLE STRAP
8
48073-04
Деталь CLAMP AWG
9
61081-92
Деталь COVER KEY
10
66373-06
Деталь BATTERY 3V CR2032
11
67121-95A
Прокладка
12
67185-04
Деталь TRIM CONSOLE
13
67478-12A
Деталь SPEEDOMETER MPH (DOMESTIC, CALIFORNIA)
13
67479-12
Деталь SPEEDOMETER KM/H (ASIA-PACIFIC, AUSTRALIA, BRAZIL, CANADA, HDI, JAPAN)
13
67480-12
Деталь SPEEDOMETER MPH/KM/H (ENGLAND)
14
68926-07
Деталь REMOTE CONTROL FOB WITH 66373-06
14
90300112
Деталь REMOTE CONTROL FOB WITH 66373-06 (JAPAN)
15
71475-06B
Деталь FORK LOCK WITH 71555-06 (SPECIFY KEY NUMBER)
16
71555-06
Деталь NUT FACE
17
72066-06A
Деталь HOUSING FOUR-WAY SOCKET (BLACK)
18
72094-06
Деталь TERMINAL 18 AWG SOCKET
19
72096-06
Деталь WIRE SEAL 18-20 AWG (YELLOW)
20
72130-04
Деталь HOUSING 12-WAY SOCKET (BLACK)
21
72131-04
Деталь HOUSING 12-WAY SOCKET (GRAY)
22
72135-06
Деталь SECONDARY LOCK FOUR-WAY SOCKET (GRAY)
23
72169-07
Деталь TERMINAL PIN, 16-20 AWG
24
72189-04
Деталь SEAL PIN
25
72478-07BK
Деталь HOUSING SEVEN-WAY PIN (BLACK)
26
72484-08
Деталь TERMINAL SOCKET, 20 AWG
27
72486-08
Деталь WIRE SEAL 20 AWG (GREEN)
28
74102-05GY
Деталь HOUSING TWO-WAY PIN (GRAY)
29
74195-98
Деталь SEAL PIN
30
74196-04
Деталь TERMINAL SOCKET, 20 AWG
31
74197-04
Деталь SECONDARY LOCK 12-WAY SOCKET
32
67000010
Деталь TACHOMETER
33
69200615
Деталь HARNESS ASSEMBLY
34
70900387
Деталь CONSOLE WITH 67185-04 (BLACK WRINKLE)
35
45600052
Деталь LOCK SET WITH 71475-06B AND 90300043
