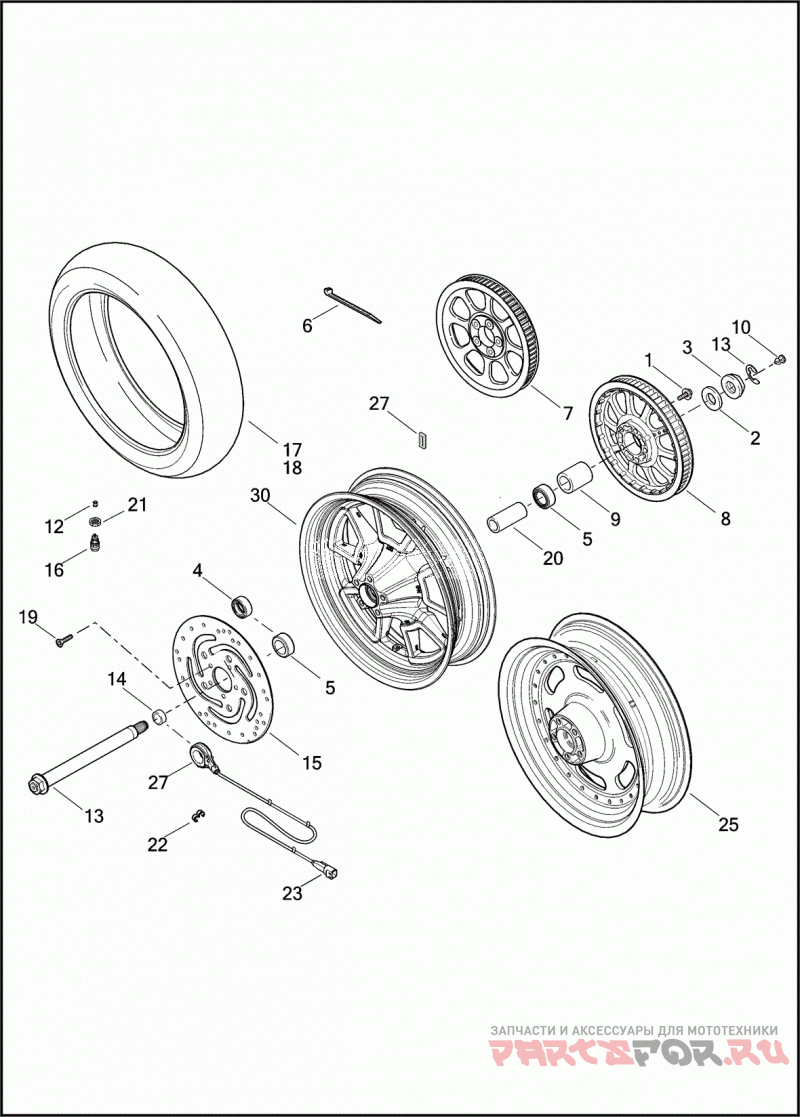

WHEELS, REAR, CAST AND SLOTTED

Harley Davidson FXDF 1GY4 DYNA FAT BOB (2017)

Harley Davidson
#oem кодцена
1
3109
SCREW 7/16-14 X 2-5/8 HEX CAP W/WASHER, LOCK PATCH
2
6551
WASHER 1 X 1-5/8 X 1/8 HARDENED
3
8020
NUT M24 X 2.0 X 15
4
9252
BALL BEARING WITH ENCODER (ABS)
5
9276A
BEARING (ABS)
6
10065
CABLE STRAP (ABS)
7
40114-07
SPROCKET 66T (BLACK)
9
40947-08A
SPACER AXLE - LEFT
10
40964-08
PLUG REAR AXLE NUT (ASIA-PACIFIC, AUSTRALIA, BRAZIL, ENGLAND, HDI, INDIA, JAPAN)
11
41114-08
Мост
12
41123-79
CAP VALVE
13
41229-08
RING AXLE RETAINING
14
41242-08
SPACER AXLE - RIGHT (NON-ABS)
15
41797-00
BRAKE DISC
16
43157-83A
VALVE STEM ASSEMBLY WITH 54321-85
17
43228-08
TIRE 16 IN
19
43567-92
SCREW 3/8-16 X 1 TORX PAN HD., W/LOCKPATCH
20
43905-08
SLEEVE SPACER BEARING
21
54321-85
NUT NO. 8-32 X 1/2 X 1/8 (BRASS)
22
70504-81
Зажим
23
74190-98
TERMINAL PIN 16-20 AWG (ABS)
24
95594-84B
WEIGHT 5 G (BLACK)
25
40900261
WHEEL ASSEMBLY 16 IN, WITHOUT BEARINGS AND SLEEVES
27
41100001
SENSOR WHEEL SPEED, WITH 71490-98 (ABS)
