FUEL PUMP, SENDER, TOP PLATE для мотоциклов Harley Davidson FXDB 103 1GXM DYNA STREET BOB 103 (2017) (2017)

Москва и регионы России

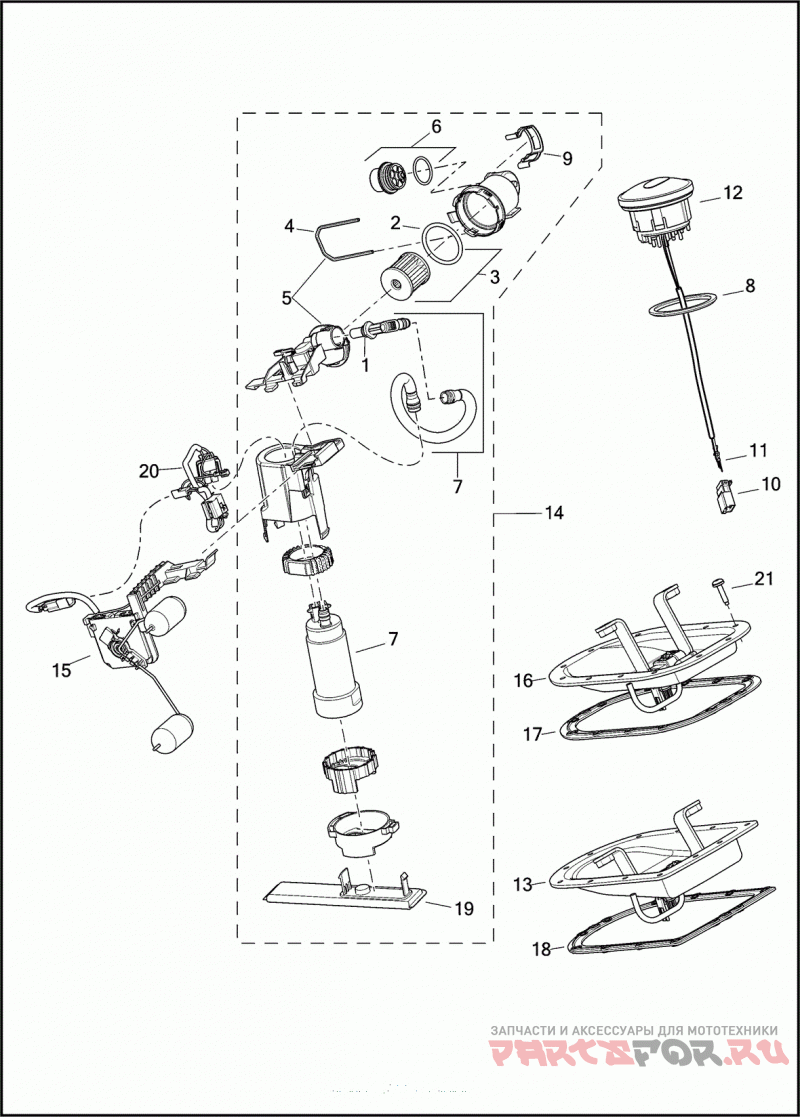

FUEL PUMP, SENDER, TOP PLATE

Harley Davidson FXDB 103 1GXM DYNA STREET BOB 103 (2017)

FUEL PUMP, SENDER, TOP PLATE

#

oem код

название

цена

1

Уплотнительное кольцо

Уплотнительное кольцо

2

Уплотнительное кольцо

Уплотнительное кольцо

3

FUEL FILTER WITH 11686

FUEL FILTER WITH 11686

4

CLIP FILTER RETAINER

CLIP FILTER RETAINER

5

FILTER END CAP AND CLIP KIT WITH 61012-04A

FILTER END CAP AND CLIP KIT WITH 61012-04A

6

FUEL REGULATOR KIT WITH O-RING, SPACER AND SCREEN

FUEL REGULATOR KIT WITH O-RING, SPACER AND SCREEN

7

FUEL PUMP ASSEMBLY WITH 75254-04A AND HOSE

FUEL PUMP ASSEMBLY WITH 75254-04A AND HOSE

8

GASKET FUEL GAUGE

GASKET FUEL GAUGE

9

CLIP REGULATOR

CLIP REGULATOR

10

HOUSING FOUR-WAY PIN (BLACK)

HOUSING FOUR-WAY PIN (BLACK)

11

TERMINAL PIN, 18-22 AWG

TERMINAL PIN, 18-22 AWG

12

FUEL GAUGE WITH 72990-01

FUEL GAUGE WITH 72990-01

14

MODULE ASSEMBLY FUEL PUMP, WITH 1, 3, 4, 5, 6, 7, 9 AND 20 (ELECTRICAL HARNESS NOT INCLUDED)

MODULE ASSEMBLY FUEL PUMP, WITH 1, 3, 4, 5, 6, 7, 9 AND 20 (ELECTRICAL HARNESS NOT INCLUDED)

15

SENDER FUEL LEVEL

SENDER FUEL LEVEL

16

TOP PLATE

TOP PLATE

17

SEAL TOP PLATE

SEAL TOP PLATE

19

FUEL PUMP INLET SOCK

FUEL PUMP INLET SOCK

20

ELECTRICAL HARNESS FUEL PUMP

ELECTRICAL HARNESS FUEL PUMP

21

Винт

Винт
