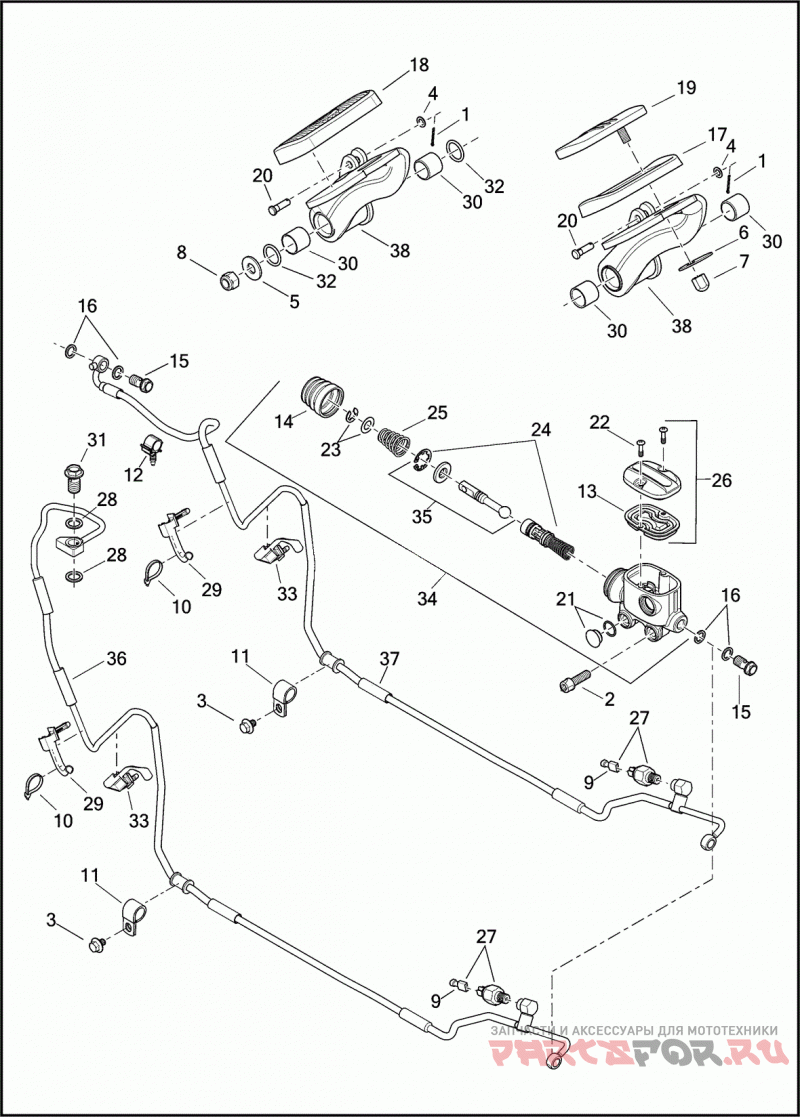

BRAKE CONTROL, REAR

Harley Davidson FLTRX 1KHC ROAD GLIDE (2017)

Harley Davidson
#oem кодцена
1
515
Шплинт
2
2479
SCREW 5/16-18 X 1-1/8 SEMS SOCKET HD.
3
3563
SCREW 1/4-20 X 3/8 HEX FLANGE HD. (GRADE 5)
4
6220W
WASHER 1/4 X 7/16 X 1/32
5
6416
WASHER 3/8 X 1 X 5/64
6
6421
WASHER 21/64 X 1-1/2 X 1/16 OFFSET 7/32
7
7549A
ACORN NUT 5/16-18 X 9/16 X 1/2
8
7825
LOCKNUT 7/16-20 X 7/16 X 5/8
9
9907
WIRE TERMINAL
10
10065
CABLE STRAP
11
10076
Зажим
12
10340B
CLAMP BRAKE HOSE, NON-ABS
13
11902
GASKET MASTER CYLINDER RESERVOIR COVER
14
12102
DUST BOOT
15
41750-06B
BOLT, BANJO BRAKE LINE, NON-ABS
16
41751-06A
GASKET NON-ABS
17
42410-04
COVER BRAKE PEDAL
19
42444-04
PAD BRAKE PEDAL
20
42460-80B
CLEVIS PIN
21
42854-06
KIT, SIGHT GLASS
22
42858-06A
SCREW KIT COVER (SET OF 2)
23
42889-06
SPRING RETENTION KIT MASTER CYLINDER PUSHROD
24
42932-08A
REBUILD KIT MASTER CYLINDER
25
42934-08
SPRING PEDAL RETURN
26
42937-08B
MASTER CYLINDER COVER KIT REAR, DOT4, WITH 11902 AND 42858-06A
27
72023-51E
KIT SWITCH REAR STOP LAMP, WITH 9907
28
10600007
GASKET ABS
29
10800028
TUBE CLIP (LOWER)
30
11000050
BUSHING BRAKE LEVER
31
11600009
BOLT, BANJO BRAKE LINE, ABS
32
11900021
Уплотнительное кольцо
33
41600091
TUBE CLIP (UPPER)
34
41700028
MASTER CYLINDER ASSEMBLY WITH 13, 14, 21, 22, 23, 24, 25, 26 AND 35
35
41700195
PUSHROD KIT MASTER CYLINDER
36
41800012
BRAKE LINE RIGHT-REAR, MASTER CYLINDER TO ABS UNIT, ABS, WITH 10065, 10076, 10800028 AND 41600091
37
41800175
BRAKE LINE RIGHT-REAR, MASTER CYLINDER TO REAR CALIPER, NON-ABS, WITH 10065, 10076, 10800028 AND 41600091
38
50600067
LEVER ASSEMBLY FOOT-BRAKE, WITH 11000050
