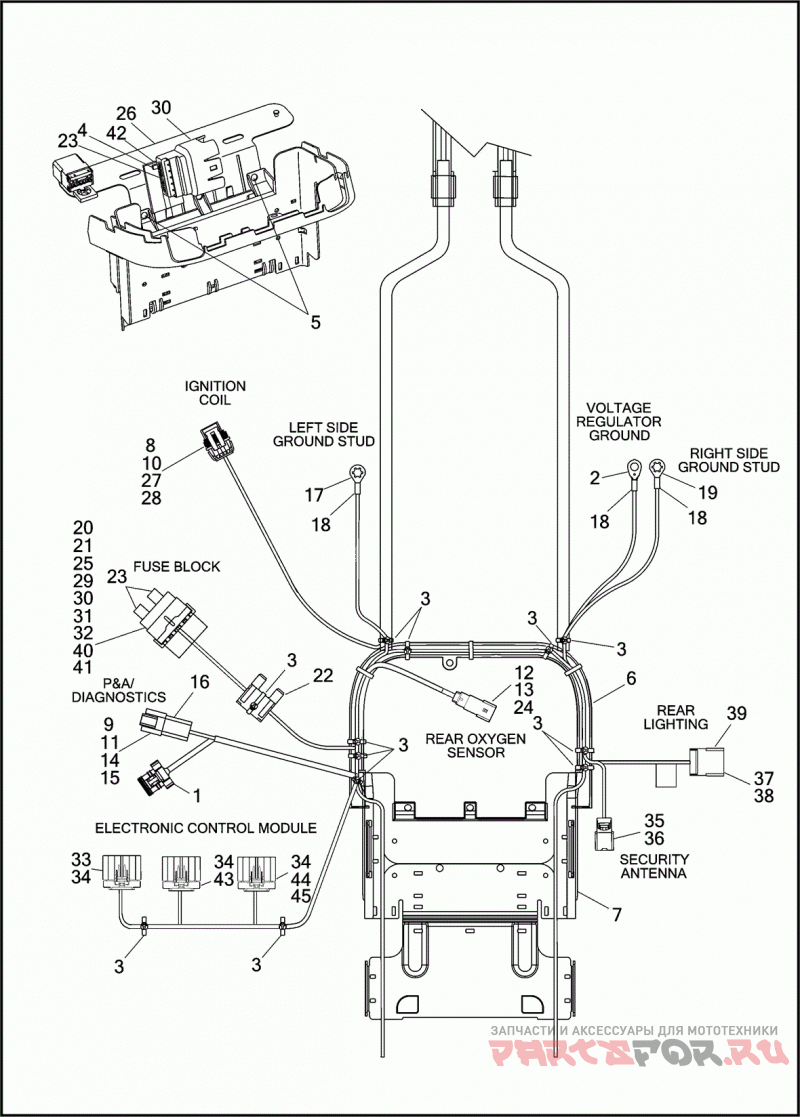

WIRING HARNESS, MAIN, ABS - FLSTF, FLSTFB AND FLSTFBS (3 OF 5)

Harley Davidson FLSTFBS 1JT9 FAT BOY S (2017)

Harley Davidson
#oem кодцена
69201184
WIRING HARNESS, MAIN
1
6990
PLUG WEATHER, SIX-WAY PIN
2
9819
TERMINAL RING .25 STUD, 12 AWGX2
3
10065
CABLE STRAP
4
10147
CLIP CONNECTOR
5
11785
FASTENER PUSH-IN
6
70974-08A
LOOM SHIELD WIRE HARNESS
7
70982-08
WIRE SHIELD
8
72066-06A
HOUSING FOUR-WAY SOCKET (BLACK)
9
72106-94BK
HOUSING SIX-WAY (BLACK) (REPLACES GRAY CONNECTOR)
10
72135-06
SECONDARY LOCK FOUR-WAY SOCKET (GRAY)
11
72146-94
PIN LOCK SEC 6
12
72169-07
TERMINAL PIN, 16-20 AWG
13
72175-07BK
HOUSING FOUR-WAY, PIN (BLACK)
14
72190-94
TERMINAL PIN, 16-18 AWG
15
72194-94
TERMINAL PIN, 20 AWG
16
72199-94
CONNECTOR ANCHOR
17
72242-94
TERMINAL 1/4 RING
18
72249-94
HEAT SHRINK TUBE .415 X 1 (BLACK)
19
72254-94
TERMINAL RING .25 STUD, 14-16 AWG
20
72298-95
WIRE SEAL 14-18 AWG (GREEN)
21
72308-97
TERMINAL SOCKET, 12-14 AWG
22
72314-01
MAIN FUSE 40 A
23
72330-95
FUSE 15 A (BLUE)
24
72343-10
TERMINAL PIN, 16-20 AWG (GOLD)
25
72356-95
TERMINAL SOCKET, 18-20 AWG
26
72369-08A
BRACKET FUSE BLOCK HOLDER, (BLACK)
27
72484-08
TERMINAL SOCKET, 20 AWG
28
72486-08
WIRE SEAL 20 AWG (GREEN)
29
72582-11
FUSE BLOCK
30
72586-11
COVER FUSE BLOCK
31
72587-11
SECONDARY LOCK FUSE BLOCK
32
72595-11
SEAL FUSE BLOCK
33
72664-12A
HOUSING 18-WAY, SOCKET, KEY A (BLACK)
34
72666-12
TERMINAL SOCKET, 18-20 AWG (SILVER)
35
72720-07
HOUSING TWO-WAY SOCKET
36
72721-07
TERMINAL SOCKET, 18-20 AWG
37
73108-96BK
HOUSING EIGHT-WAY PIN
38
73190-96
TERMINAL PIN, 16-20 AWG
39
73196-96
ANCHOR T-STUD
40
73304-04
TERMINAL .31 SOCKET, 10 AWG
41
73305-04
SEAL WIRE 10 AWG (BLUE)
42
12200044
BRACKET FUSE BLOCK MOUNTING
43
69200267A
HOUSING 18-WAY, SOCKET, KEY B (GRAY)
44
69200268A
HOUSING 18-WAY, SOCKET, KEY C (BROWN)
45
69201168
TERMINAL SOCKET, 22 AWG (SILVER)
