WIRING HARNESS, MAIN, NON-ABS - FLS (4 OF 5) для мотоциклов Harley Davidson FLS 1JRV SLIM (2017) (2017)

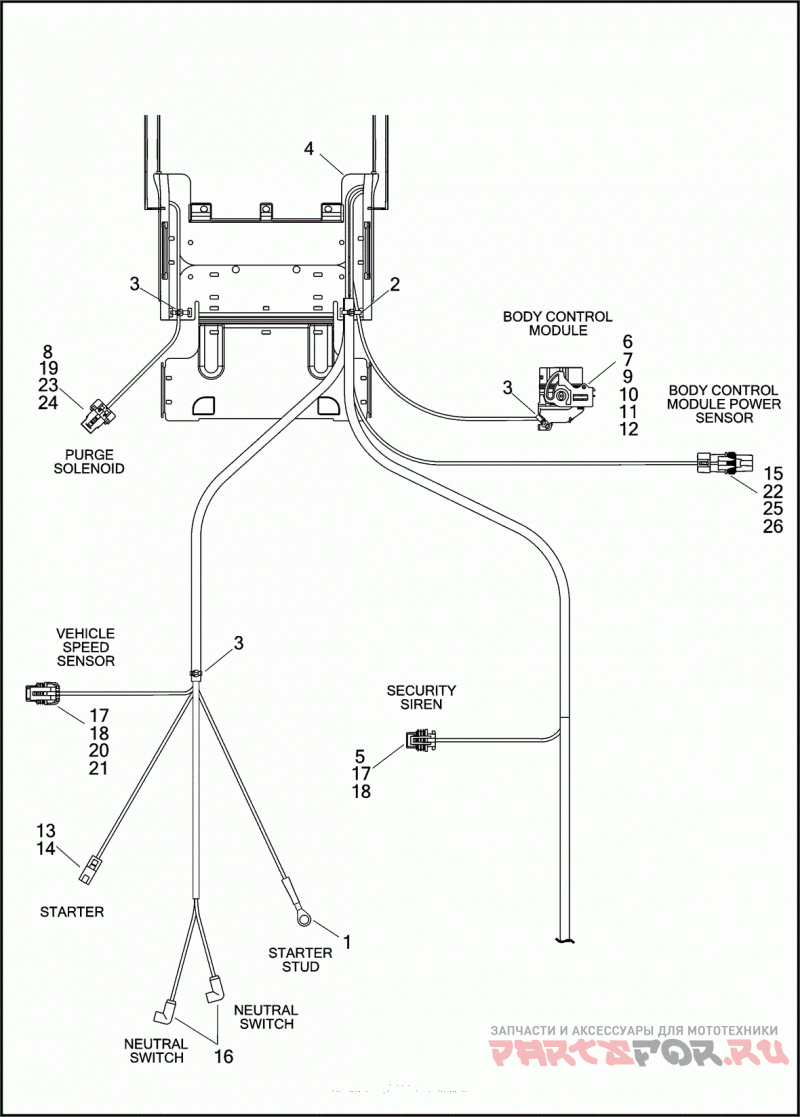

WIRING HARNESS, MAIN, NON-ABS - FLS (4 OF 5)

Harley Davidson FLS 1JRV SLIM (2017)

WIRING HARNESS, MAIN, NON-ABS - FLS (4 OF 5)

oem код

название

цена

69201079

WIRING HARNESS, MAIN

9842

TERMINAL RING .31 10-12 AWG

CABLE STRAP

CABLE STRAP

WIRE SHIELD

HOUSING THREE-WAY SOCKET

72081-11

HOUSING 48-WAY SOCKET

72209-11

COVER WIRE

72213-94

TERMINAL SOCKET, 16-20 AWG

72222-11

TERMINAL SOCKET 18-20 AWG

72226-11

TERMINAL SOCKET 14-16 AWG

72227-11

TERMINAL SOCKET, 18-20 AWG

72256-11

SEAL PIN .6MM, PLUG

72291-94

TERMINAL 14-16 AWG

72295-94

HOUSING STARTER CONNECTION

72350-11

HOUSING ONE-WAY

72405-98BK

PUSH ON 90 DEGREE CONNECTOR

72484-08

TERMINAL SOCKET, 20 AWG

72486-08

WIRE SEAL 20 AWG (GREEN)

72518-01

HOUSING SOCKET, TWO-WAY (RED)

72543-07BK

HOUSING THREE-WAY SOCKET (BLACK)

72544-07

SECONDARY LOCK THREE-WAY SOCKET

72575-11

SECONDARY LOCK

72609-08

SECONDARY LOCK TWO-WAY SOCKET (BLACK)

72610-08

SEAL CABLE, 18-20 AWG (WHITE)

73304-04

TERMINAL .31 SOCKET, 10 AWG

73305-04

SEAL WIRE 10 AWG (BLUE)
