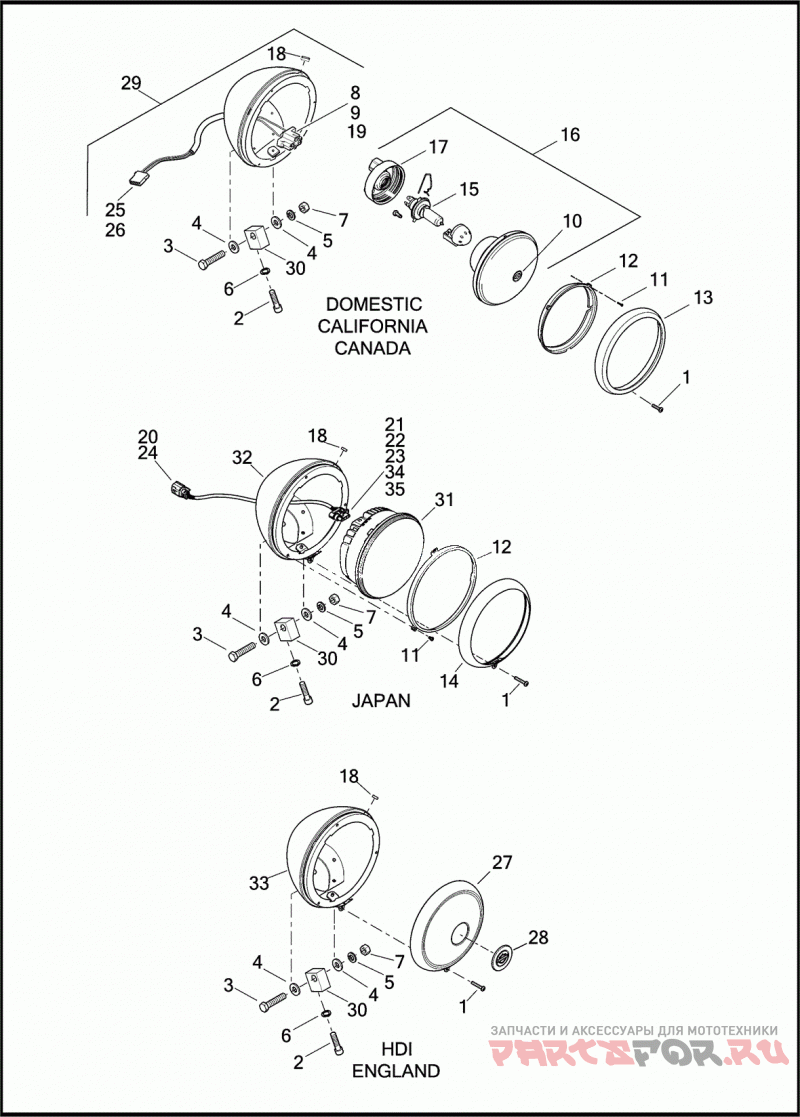

HEADLAMP - FLRT

Harley Davidson FLRT 1MCC FREEWHEELER (2017)

Harley Davidson
#oem кодцена
1
3615
SCREW NO. 8-32 X 1, PAN HD., THREAD-CUTTING
2
4350A
SCREW 3/8-16 X 1-1/2 SOCKET HD.
3
4411
BOLT 3/8-24 X 1-3/4 HEX HD. (GRADE 5)
4
6400HB
WASHER 5/16 X 13/16 X 3/32
5
7038
LOCKWASHER 3/8
6
7130W
LOCKWASHER 3/8 INTERNAL TOOTH
7
7800W
NUT 3/8-24 X 5/16 X 9/16 (GRADE 2)
8
9847
WIRE TERMINAL FEMALE SPADE, RIGHT HAND (DOMESTIC)
9
9848
WIRE TERMINAL FEMALE SPADE, LEFT HAND (DOMESTIC)
10
67668-05
MEDALLION LENS (DOMESTIC)
11
67721-48
SCREW HEADLAMP RETAINER RING
12
68050-93A
RETAINING RING (DOMESTIC, JAPAN)
13
68051-08
TRIM RING (CHROME)
14
68051-08
TRIM RING (CHROME) (JAPAN)
15
68329-03
BULB HB2/H4 (DOMESTIC)
16
68342-05A
LENS ASSEMBLY 7 IN, WITH 67668-05, 68329-03 AND 68390-05 (DOMESTIC)
17
68390-05
BOOT (DOMESTIC)
18
69969-08
Гильца
19
72056-92
INSULATOR SPADE TERMINAL, THREE-WAY (DOMESTIC)
20
72168-07
TERMINAL SOCKET, 18-20 AWG (JAPAN)
21
72213-94
TERMINAL SOCKET, 16-20 AWG (JAPAN)
22
72214-94
WIRE SEAL 14-16 AWG (DARK RED) (JAPAN)
23
72232-96
SEAL PIN RED (JAPAN)
24
72512-07BK
HOUSING THREE-WAY SOCKET (BLACK) (JAPAN)
25
73154-96BK
HOUSING FOUR-WAY SOCKET (DOMESTIC)
26
73191-96
TERMINAL SOCKET, 16-20 AWG (DOMESTIC)
27
61300599
COVER HEADLAMP (HDI, ENGLAND)
28
61400378
TRIM HEADLAMP (HDI, ENGLAND)
29
67700184
SHELL ASSEMBLY 7.0 IN, WITH 9847, 9848, 72056-92, 73154-96BK AND 73191-96 (DOMESTIC)
30
67700187
MOUNTING BLOCK
31
67700241
HEADLAMP KIT LED (JAPAN)
32
67700310
SHELL ASSEMBLY HEADLAMP (JAPAN)
33
67700310
SHELL ASSEMBLY HEADLAMP (HDI, ENGLAND) (REMOVE HARNESS PRIOR TO INSTALLATION)
34
69200254
HOUSING FOUR-WAY SOCKET (JAPAN)
35
69200256
SECONDARY LOCK FOUR-WAY (JAPAN)
