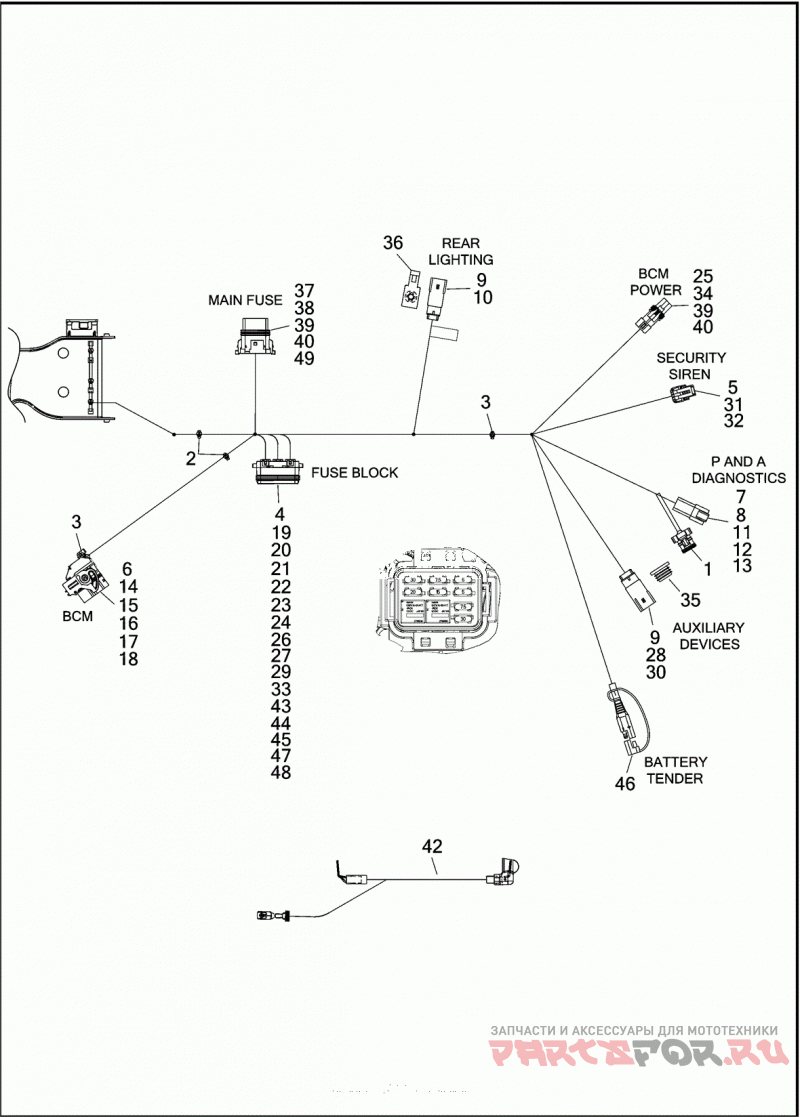

WIRING HARNESS, MAIN (8 OF 8)

Harley Davidson FLHXSE 1PXF CVO STREET GLIDE (2017)

Harley Davidson
#oem кодцена
69201556
MAIN WIRING HARNESS
1
6990
WEATHER PLUG SIX-WAY PIN
2
10006
CABLE STRAP
3
10065
CABLE STRAP
4
31586-07
RELAY
5
72064-06
HOUSING THREE-WAY SOCKET (BLACK)
6
72081-11
HOUSING 48-WAY SOCKET (BLACK)
7
72106-94BK
RECEPTACLE, 6-way pin (black)
8
72146-94
SECONDARY LOCK SIX-WAY PIN (GREEN)
9
72169-07
TERMINAL PIN, 16-20 AWG
10
72188-07BK
HOUSING SIX-WAY PIN (BLACK)
11
72190-94
TERMINAL PIN, 16-18 AWG
12
72194-94
TERMINAL PIN, 20 AWG
13
72195-94
SEAL PIN
14
72209-11
COVER WIRE DRESS
15
72222-11
TERMINAL SOCKET, 18-20 AWG
16
72226-11
TERMINAL SOCKET, 14-16 AWG
17
72227-11
TERMINAL SOCKET, 18-20 AWG
18
72256-11
SEAL PIN
19
72296-95
TERMINAL SOCKET, 14-16 AWG
20
72298-95
PLUG CAVITY
21
72299-95
PLUG CAVITY
22
72308-97
TERMINAL SOCKET, 12-14 AWG
23
72331-95
FUSE 5 A (TAN)
24
72345-02
FUSE 20 A (YELLOW)
25
72350-11
HOUSING ONE-WAY SOCKET (BLACK)
26
72356-95
TERMINAL SOCKET, 18-20 AWG
27
72412-97
WIRE SEAL 12-14 AWG (GRAY)
28
72175-07BK
HOUSING FOUR-WAY PIN (GRAY)
29
72330-95
FUSE 15 A (BLUE)
30
72473-07
SEAL PIN NATURAL
31
72484-08
TERMINAL SOCKET, 20 AWG
32
72486-08
WIRE SEAL 20 AWG (GREEN)
33
72539-06
FUSE 30 A (GREEN)
34
72575-11
SECONDARY LOCK ONE-WAY SOCKET (BLACK)
35
72632-10
PLUG WEATHER, FOUR-WAY PIN
36
73213-07
RETAINER ANCHORED
37
73301-04
HOUSING TWO-WAY PIN (BLACK)
38
73303-04
SECONDARY LOCK TWO-WAY SOCKET (BLACK)
39
73304-04
TERMINAL SOCKET, 10 AWG
40
73305-04
SEAL WIRE 10 AWG (BLUE)
41
11100115
CLOTH, HARNESS WRAP 50 M (NOT SHOWN)
42
69201130
WIRE HARNESS POSITIVE CABLE
43
69200194
HOUSING 24-WAY SOCKET
44
69201573
COVER FUSE BLOCK
45
69200199
WIRE SEAL 18-20 AWG
46
69200212
HARNESS BATTERY TENDER
47
69200293
FUSE 7.5 A (BROWN)
48
69200312
SECONDARY LOCK 24-WAY SOCKET
49
69200336
MAIN FUSE 50 A (RED), NOTE: FUSE IS SOLD SEPARATELY AND IS NOT PART OF MAIN HARNESS
