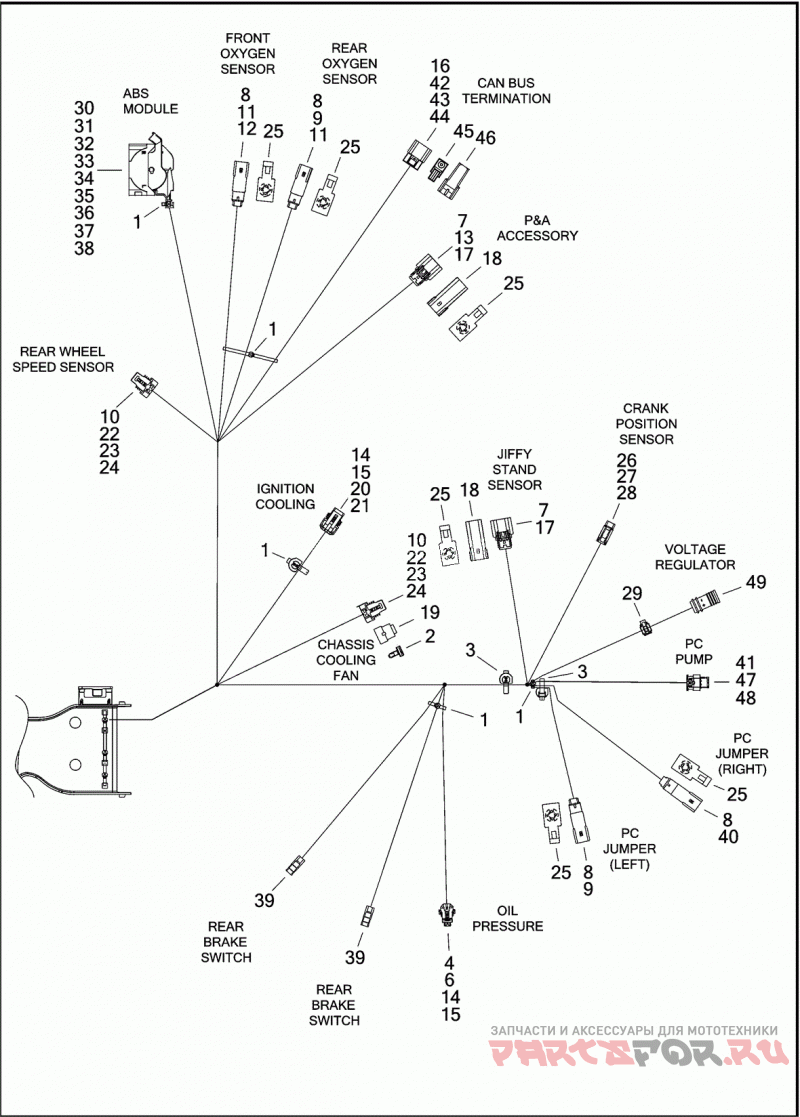

WIRING HARNESS, MAIN (7 OF 8)

Harley Davidson FLHXSE 1PXF CVO STREET GLIDE (2017)

Harley Davidson
#oem кодцена
69201556
MAIN WIRING HARNESS
1
10065
CABLE STRAP
2
10147
Зажим
3
10177
CABLE STRAP ANCHORED
4
72065-06A
HOUSING THREE-WAY SOCKET (BLACK)
5
72111-06
SECONDARY LOCK TWO-WAY SOCKET (GRAY)
6
72127-06
SECONDARY LOCK THREE-WAY SOCKET
7
72168-07
TERMINAL SOCKET, 18-20 AWG
8
72169-07
TERMINAL PIN, 16-20 AWG
9
72175-07BK
HOUSING FOUR-WAY PIN (BLACK)
10
72213-94
TERMINAL SOCKET, 16-20 AWG
11
72343-10
TERMINAL PIN, 16-20 AWG
12
72415-07GY
HOUSING FOUR-WAY PIN (GRAY)
13
72473-07
SEAL PIN NATURAL
14
72484-08
TERMINAL SOCKET, 20 AWG
15
72486-08
WIRE SEAL 20 AWG (GREEN)
16
72499-07
WIRE SEAL 20-22 AWG (GREEN)
17
72512-07BK
HOUSING THREE-WAY SOCKET (BLACK)
18
72519-09BK
DUST CAP THREE-WAY SOCKET (BLACK)
19
72533-06
PLUG WEATHER, TWO-WAY PIN
20
72544-07
SECONDARY LOCK THREE-WAY SOCKET
21
72589-09
HOUSING THREE-WAY SOCKET (BLACK)
22
72606-08
HOUSING TWO-WAY SOCKET (BLACK)
23
72609-08
SECONDARY LOCK TWO-WAY SOCKET
24
72610-08
WIRE SEAL 18-20 AWG (WHITE)
25
73213-07
RETAINER ANCHORED
26
74112-98BK
HOUSING TWO-WAY SOCKET (BLACK)
27
74152-98
SECONDARY LOCK TWO-WAY SOCKET
28
74191-98
TERMINAL SOCKET, 16-20 AWG
29
12500016
CABLE STRAP
30
69200183
HOUSING 26-WAY SOCKET
31
69200184
COVER 26-WAY SOCKET
32
69200185
TERMINAL SOCKET, 20 AWG
33
69200186
TERMINAL SOCKET, 14-16 AWG
34
69200187
TERMINAL SOCKET, 12 AWG
35
69200188
WIRE SEAL 20 AWG (GRAY)
36
69200189
WIRE SEAL 14-16 AWG (BROWN)
37
69200190
WIRE SEAL 12 AWG (BLUE)
38
69200191
SEAL PIN
39
69200238
TERMINAL INSULATED
40
69200272
HOUSING TWO-WAY PIN (BLACK)
41
69201301
WIRE SEAL 20-22 AWG (GREEN)
42
69201396
TERMINAL SOCKET, 20 AWG
43
69201400
HOUSING TWO-WAY SOCKET (BLACK)
44
69201401
SECONDARY LOCK TWO-WAY SOCKET
45
69201404
Фиксатор
46
69201405
RESISTOR PACK
47
69201406
HOUSING THREE-WAY SOCKET (BLACK)
48
69201407
TERMINAL SOCKET, 20 AWG
49
69201423
DC LEAD ASSEMBLY
